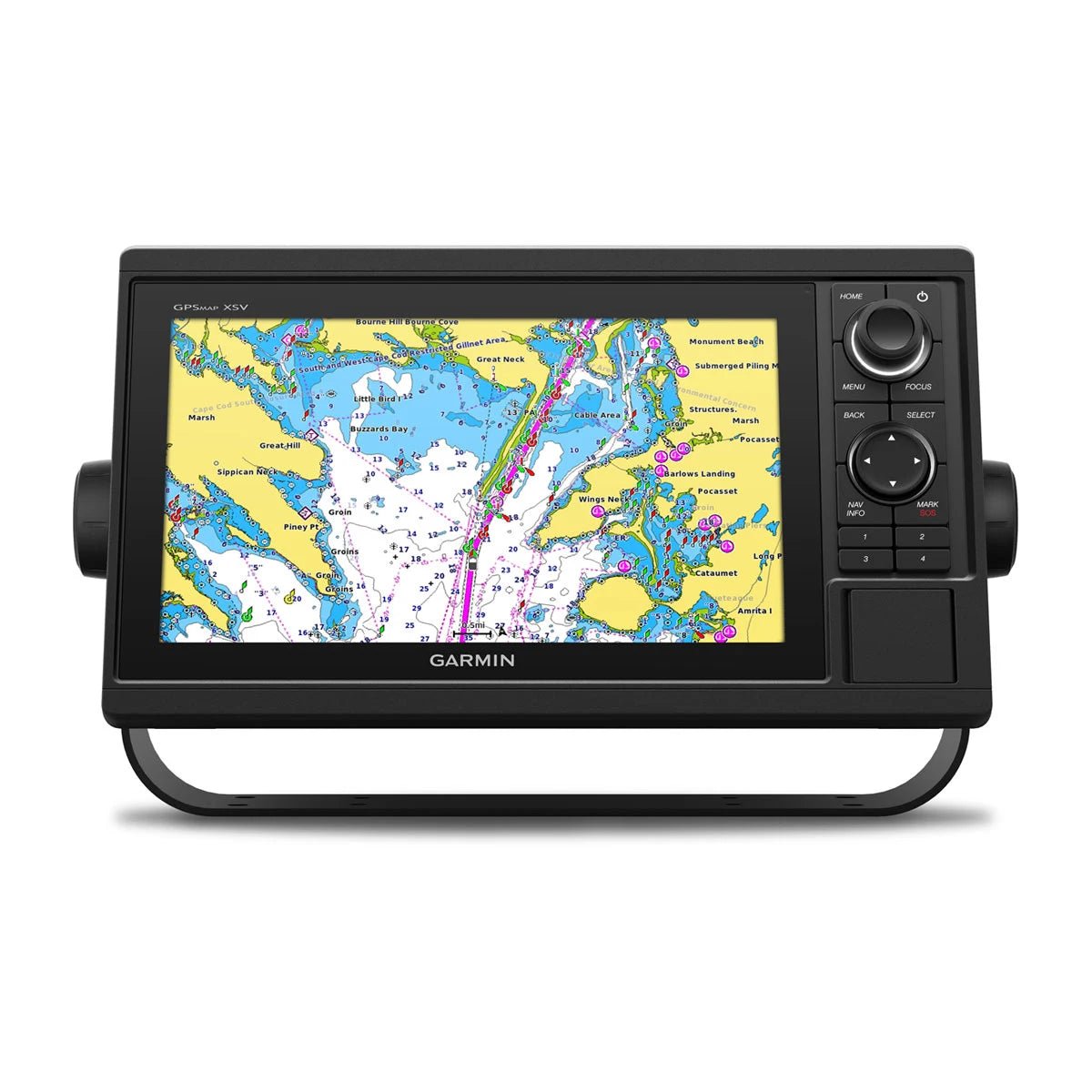

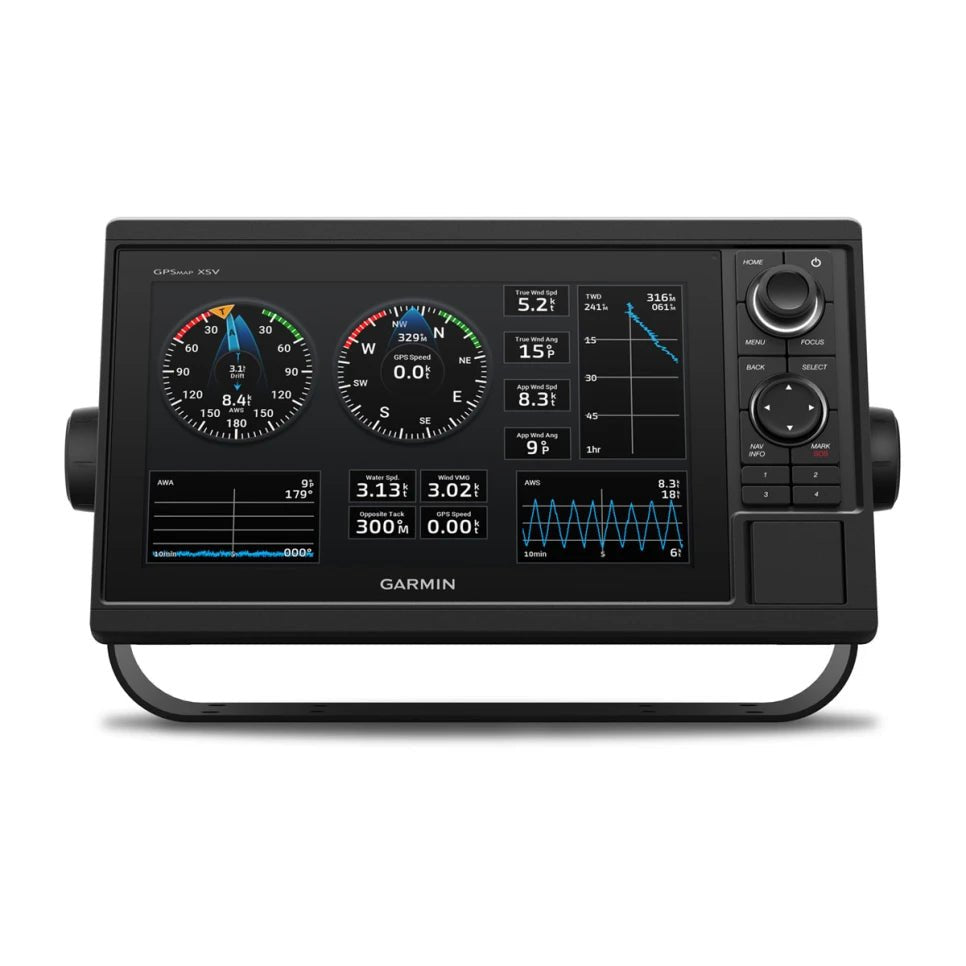

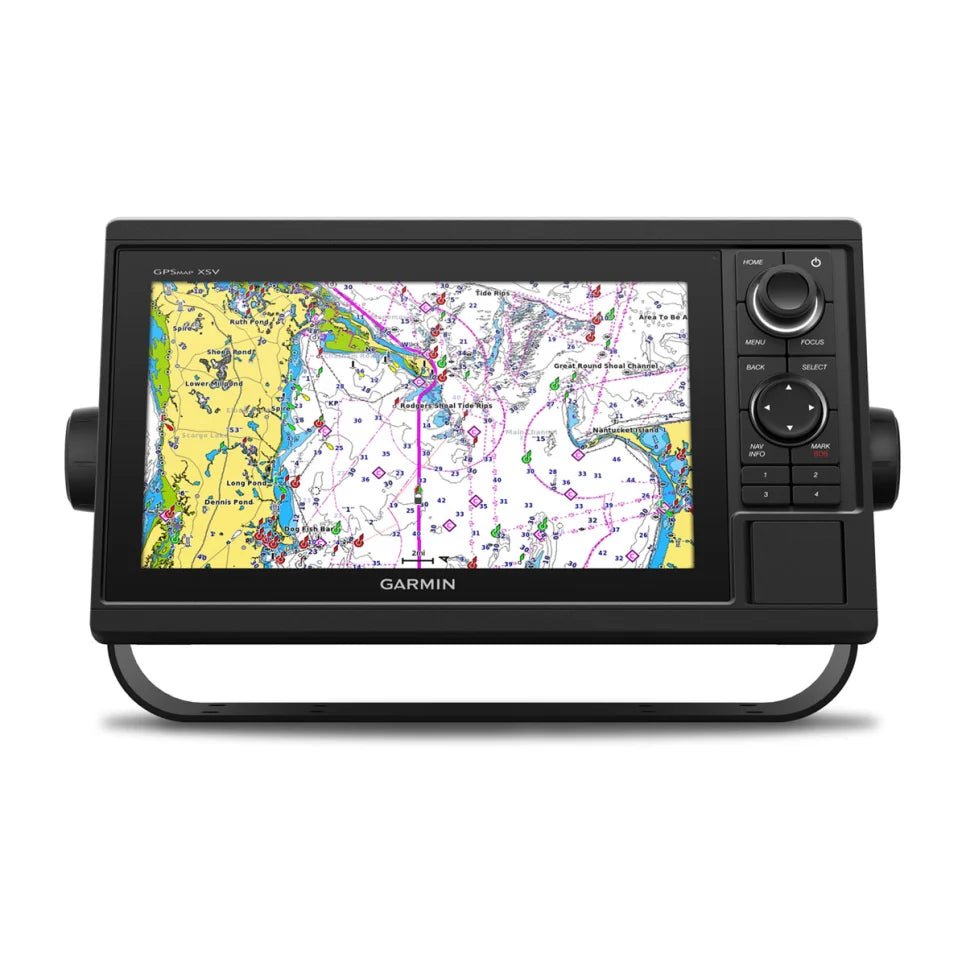

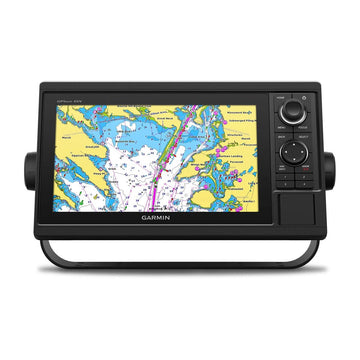

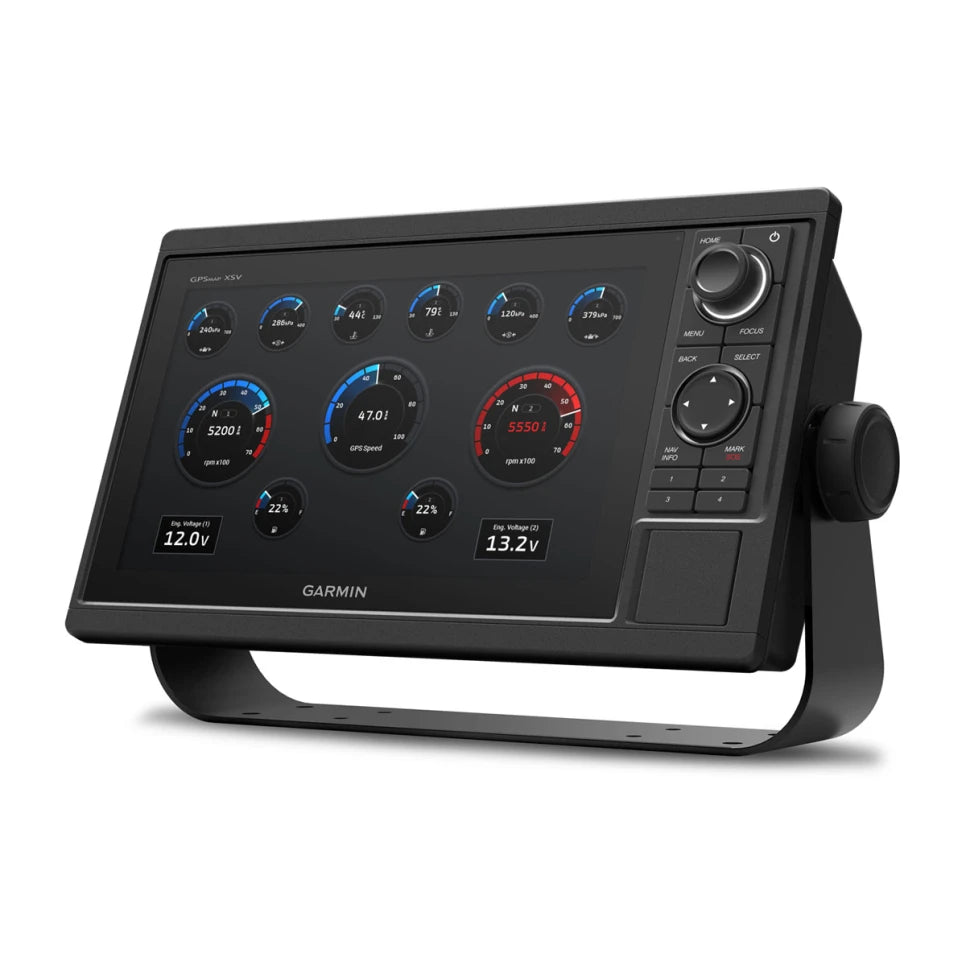

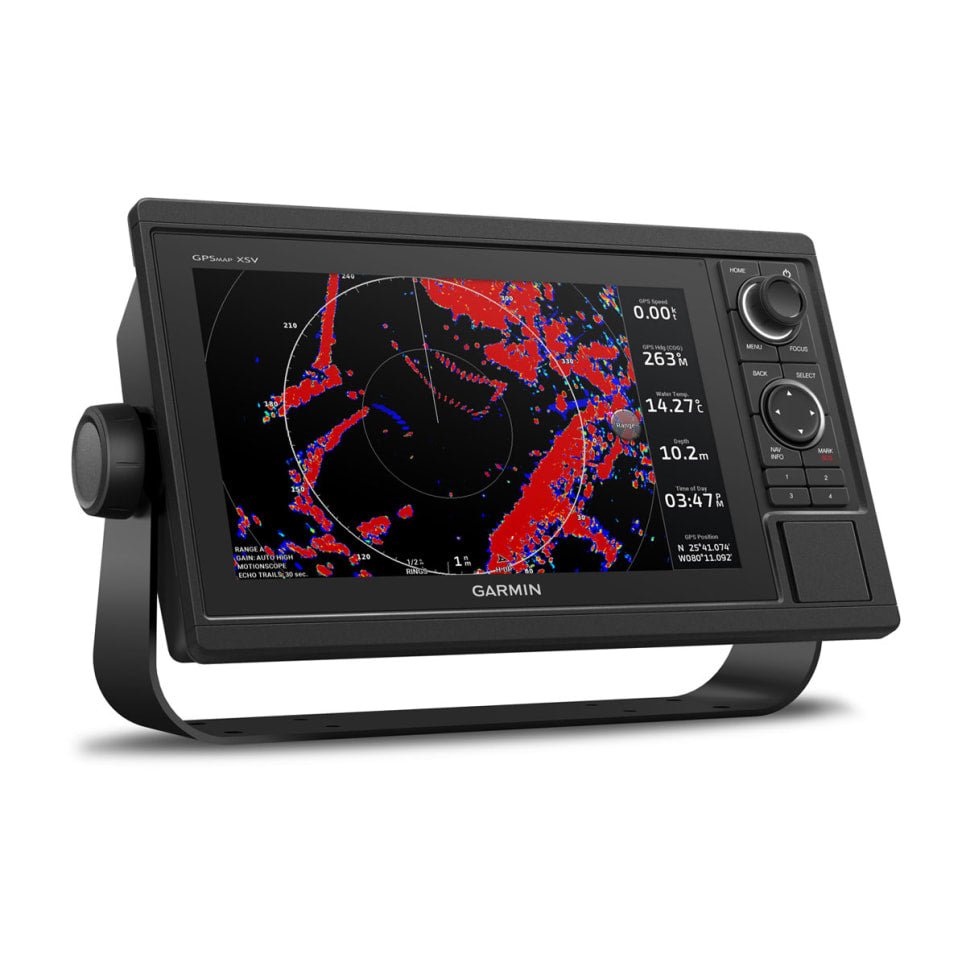

GPSMAP 1022

The Garmin GPSMAP 1022 is a powerful and user friendly chartplotter designed for serious boaters. Featuring a bright 10 inch keyed display, the GPSMAP 1022 offers exceptional clarity and readability, even in direct sunlight. Its intuitive interface and dedicated keypad provide easy access to all essential functions, ensuring seamless navigation and control. Built in high sensitivity GPS and GLONASS receiver provides accurate positioning and heading data. The GPSMAP 1022 supports Garmin's extensive range of marine charts, including BlueChart g3 and LakeVu g3, offering detailed coverage of coastal and inland waters. It also supports advanced sonar capabilities, including CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonars, when paired with a compatible transducer. Network connectivity allows seamless integration with other Garmin devices, such as radar, autopilots, and instruments. The GPSMAP 1022 is a reliable and versatile navigation solution for any vessel.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up to date and accurate specifications.

Technical Specifications

Physical Dimensions: 12.1" x 7.7" x 3.0" (30.8 x 19.7 x 7.6 cm)

Display Size: 8.5" x 5.3"; 10.1" diagonal (21.7 x 13.6 cm; 25.7 cm diagonal)

Display Resolution: 1280 x 800 pixels

Display Type: WVGA display

Weight: 3.7 lbs (1.7 kg)

Water Rating: IPX7

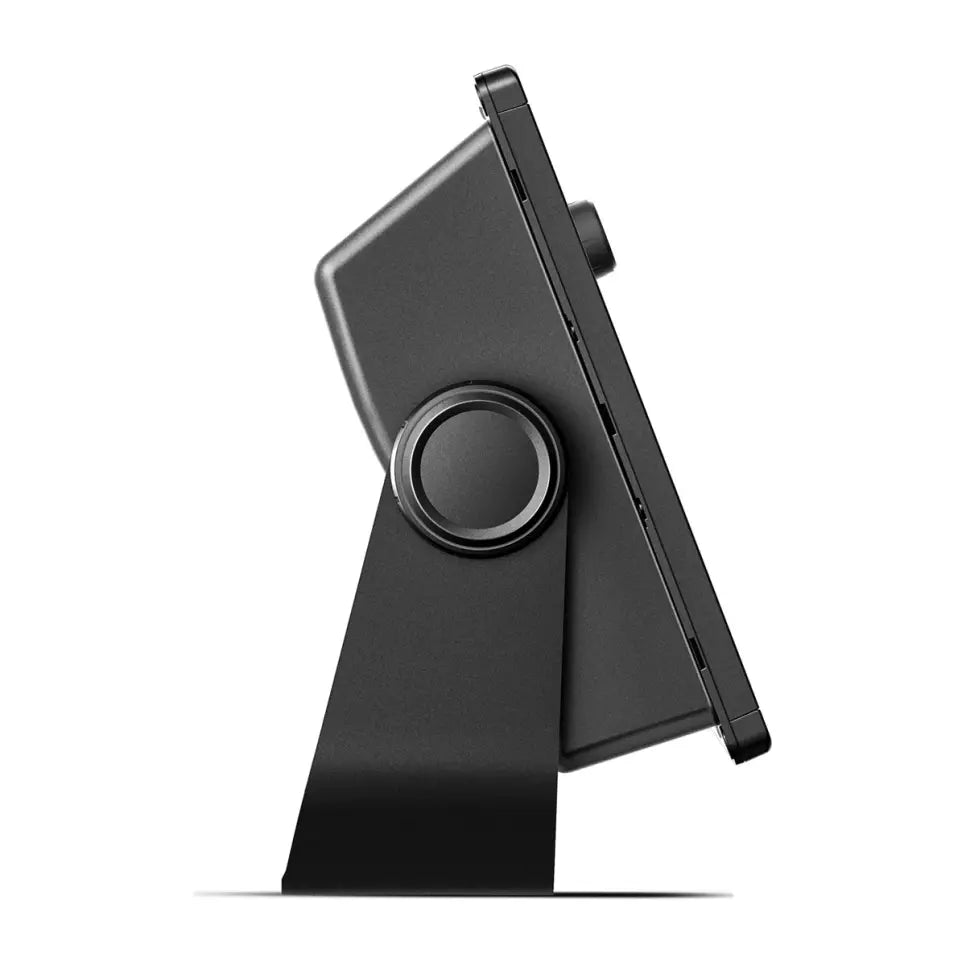

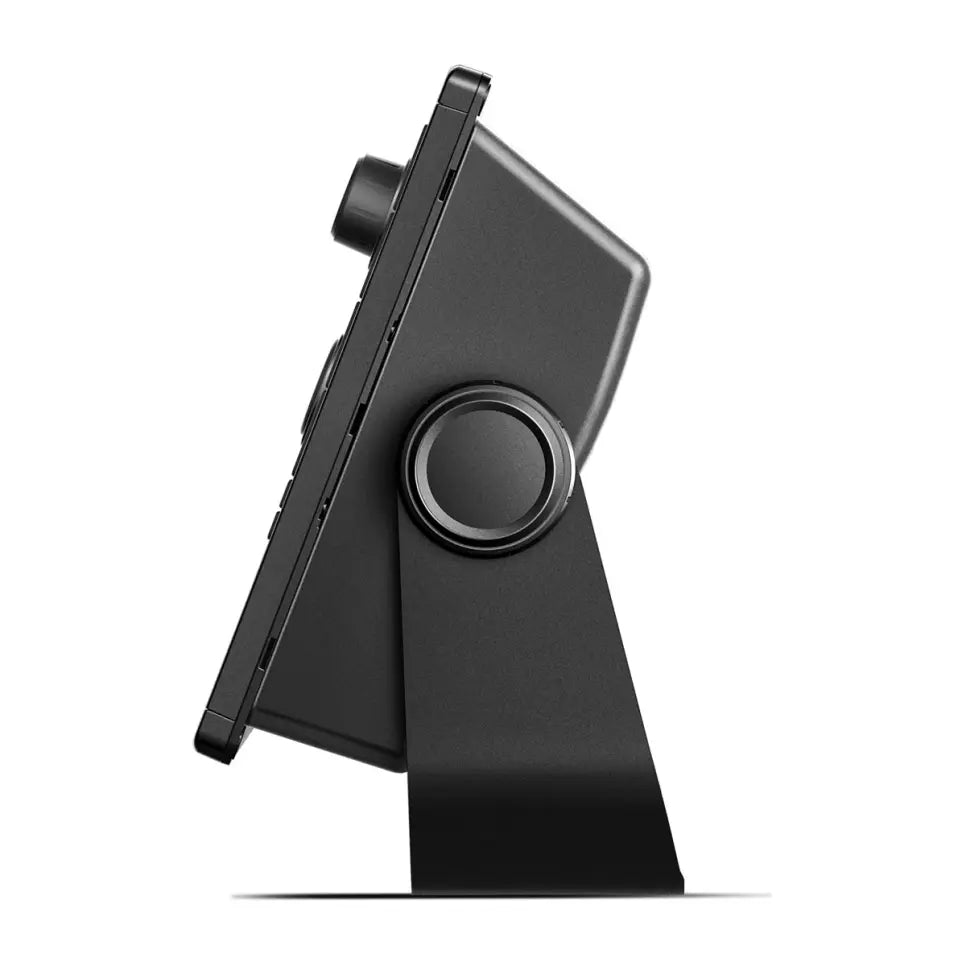

Mounting Options: Bail, Flush, Flat

Power Consumption: 20 W typical

Antenna: Internal or external over NMEA 2000

Receiver: 10 Hz

Garmin Marine Network Ports: 1

NMEA 0183 Input Ports: 2

NMEA 0183 Output Ports: 2

Video Input Ports: 1 BNC

Wireless Connectivity: Yes

Maps & Memory

Accepts Data Cards: 2 SD card slots

Waypoints: 5,000

Routes: 100

Track Log: 50,000 points; 50 saved tracks

Sonar Features & Specifications

CHIRP Sonar Technology: Yes

ClearVu: Yes

SideVu: Yes

Maximum Depth: 5,000 ft @ 77 kHz, freshwater; 2,500 ft @ 77 kHz, saltwater (depth capacity depends on water bottom type and other water conditions)

Bottom Lock (shows return from the bottom up): Yes

Water Temperature Log and Graph: Yes

Sonar Recording: Yes

Sonar History Rewind: Yes

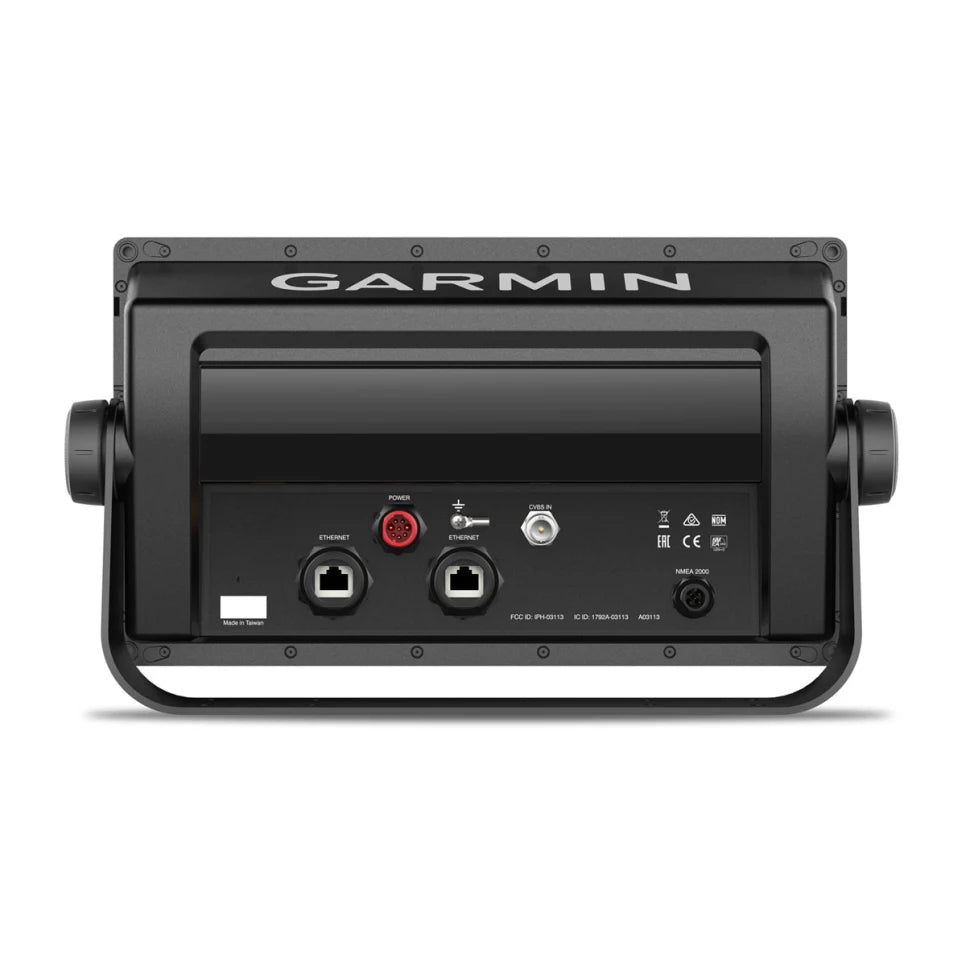

Connections

NMEA 2000 Compatible: Yes

Transducer Ports: 1

Video Input Ports: 1 BNC

Additional

Supports AIS (tracks target ships position): Yes

Supports DSC (displays position data from DSC capable VHF radio): Yes

Tide Tables: Yes
