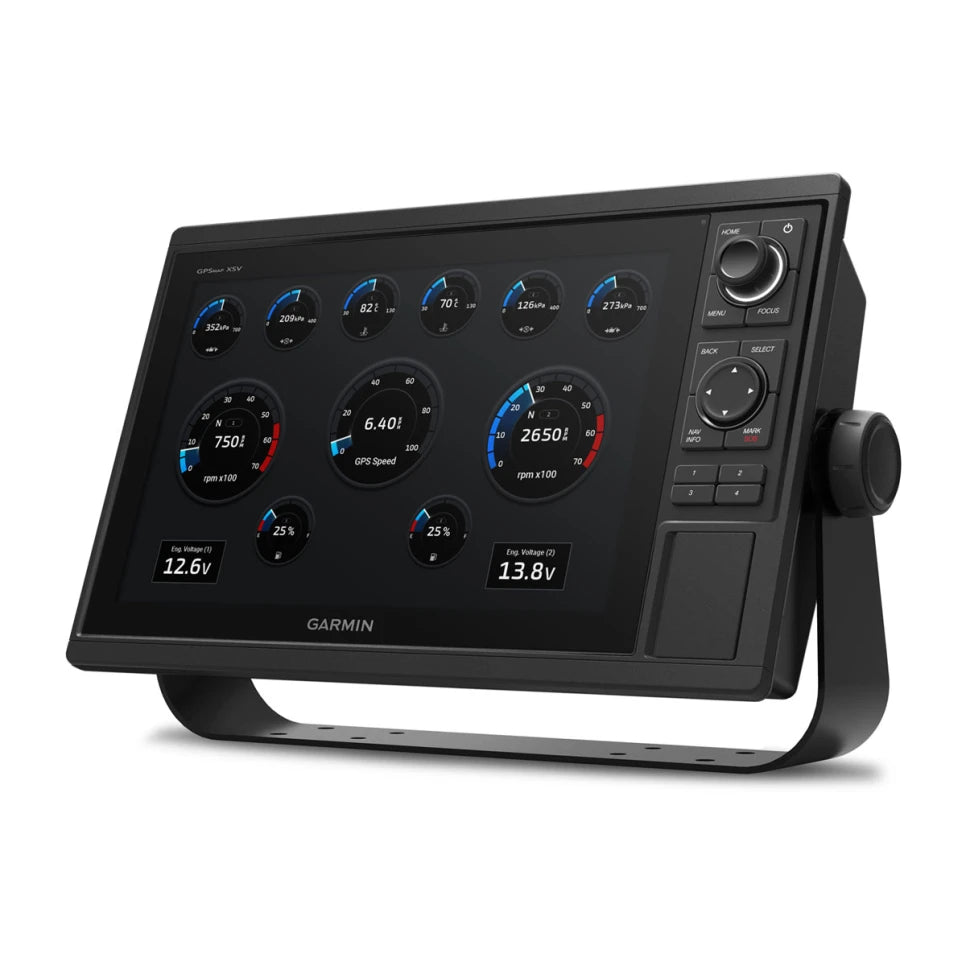

GPSMAP 1222

The Garmin GPSMAP 1222 is a powerful and versatile chartplotter designed for serious mariners. Featuring a bright, sunlight readable 12 inch display, the GPSMAP 1222 provides exceptional clarity and detail for navigation and situational awareness. Its intuitive interface and keyed assist touchscreen controls make operation simple and efficient, even in challenging conditions. The built in 10 Hz GPS receiver updates your position 10 times per second, ensuring smooth and accurate tracking. The GPSMAP 1222 supports a wide range of charting options, including Garmin Navionics+ and Garmin Navionics Vision+ charts, providing detailed coverage of coastal and inland waters. With built in Wi Fi connectivity, you can easily access ActiveCaptain, a free mobile app that provides access to charts, maps, user data, and the Garmin Quickdraw Community. The GPSMAP 1222 also supports radar, sonar, and other marine sensors, allowing you to customize your system to meet your specific needs. Whether you are cruising, fishing, or sailing, the GPSMAP 1222 provides the performance and features you need to navigate with confidence.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

• Physical Dimensions: 12.1 inch x 8.5 inch x 3.0 inch (30.8 cm x 21.6 cm x 7.6 cm)
• Display Size: 10.3 inch x 6.4 inch; 12.1 inch diagonal (26.2 cm x 16.3 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Weight: 4.0 lbs (1.8 kg)
• Water Rating: IPX7

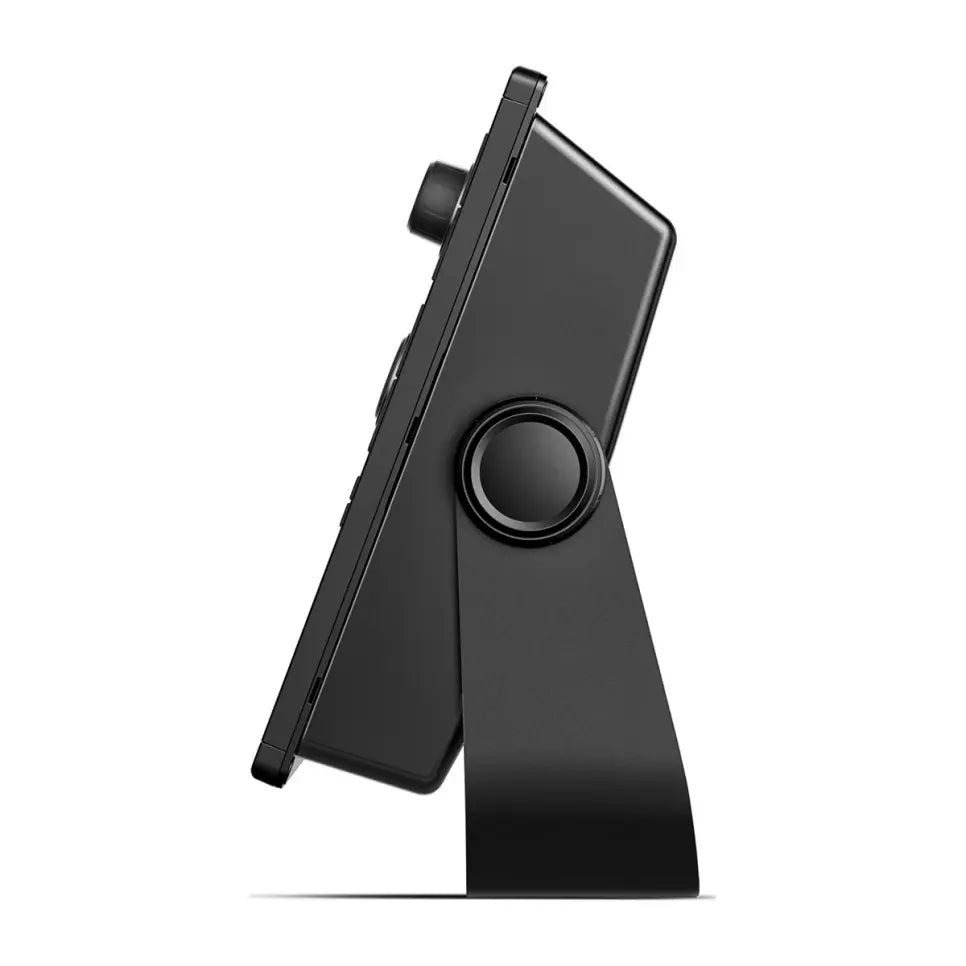

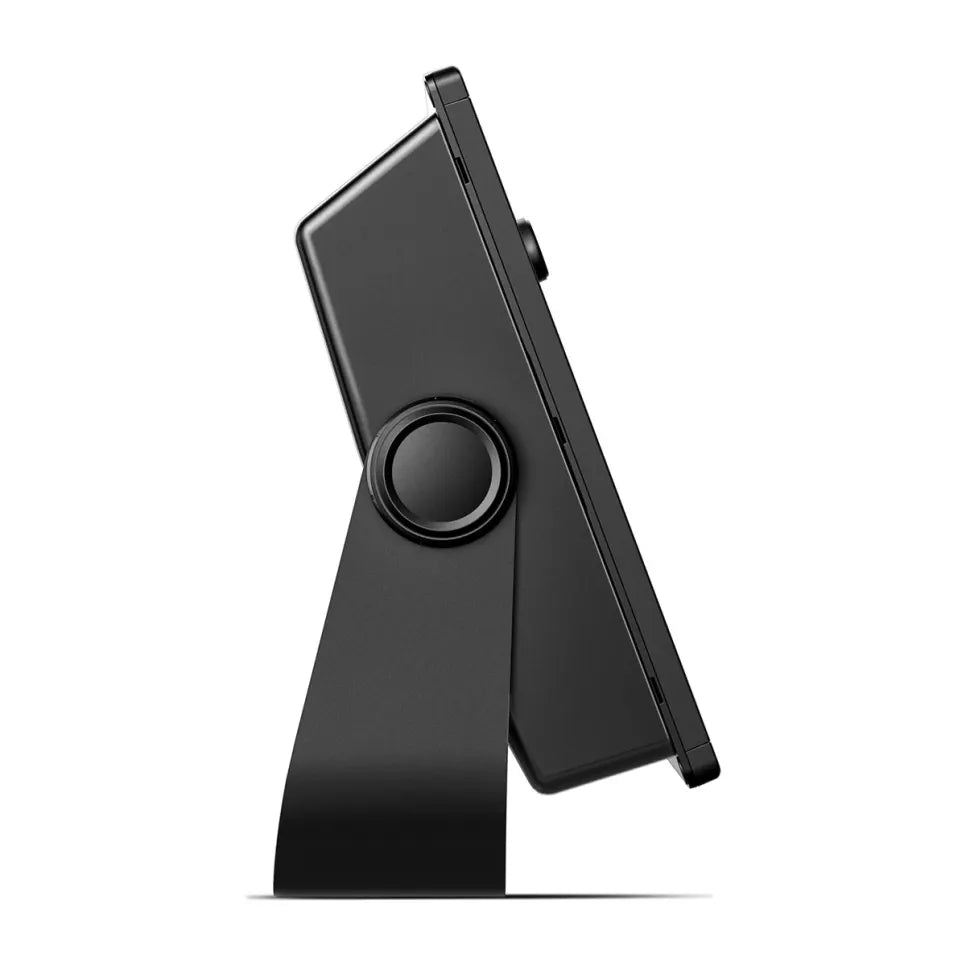

• Mounting Options: Bail, flush, flat
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz
• NMEA 0183 Input Ports: 2
• NMEA 0183 Output Ports: 2
• NMEA 2000 Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Wi Fi
• Garmin Marine Network Ports: 1
• SD Card Slots: 2
• Sonar Capabilities: Supports GCV 20, GSD 25, GSD 26 sonar modules

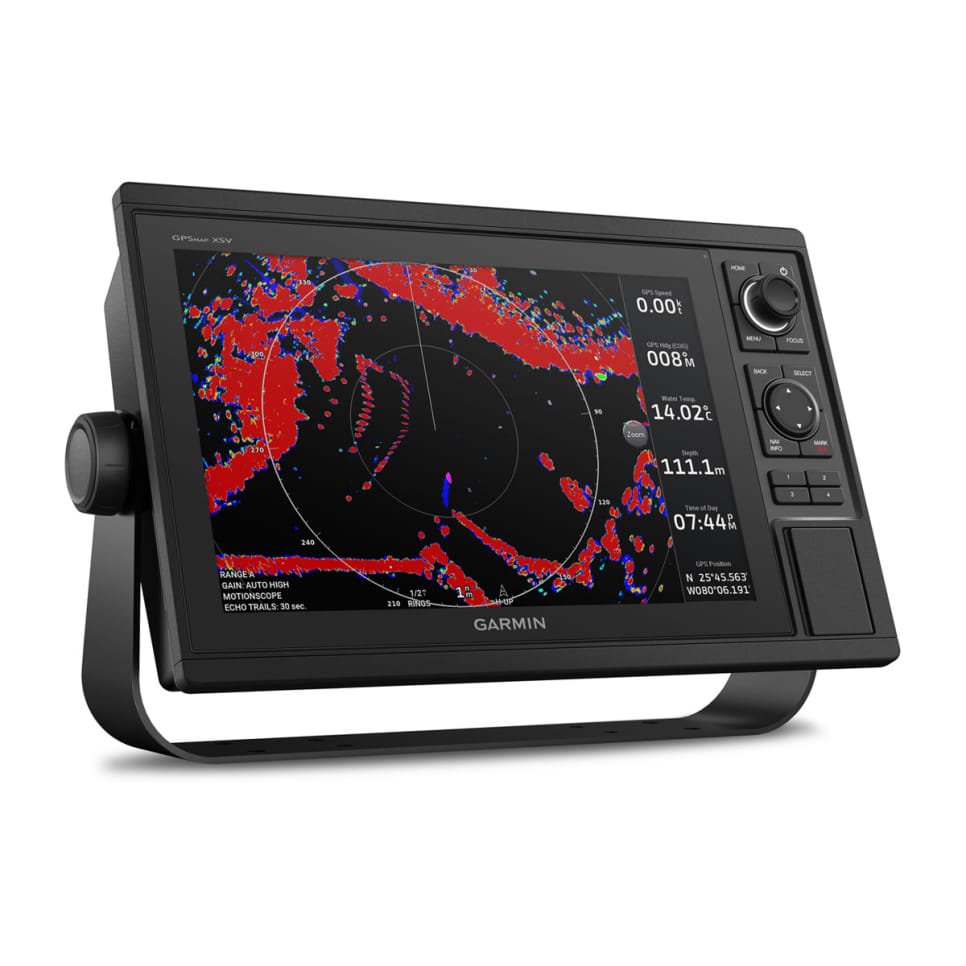

• Radar Compatibility: Yes, Garmin GMR radar

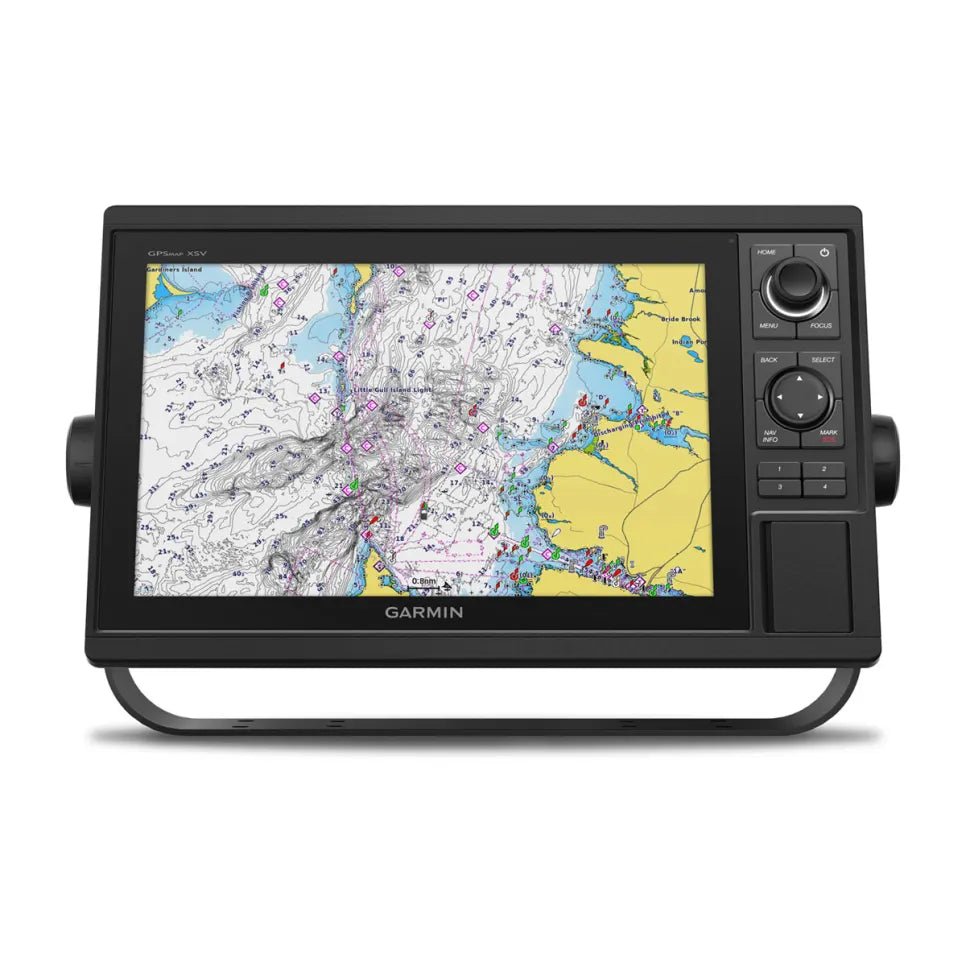

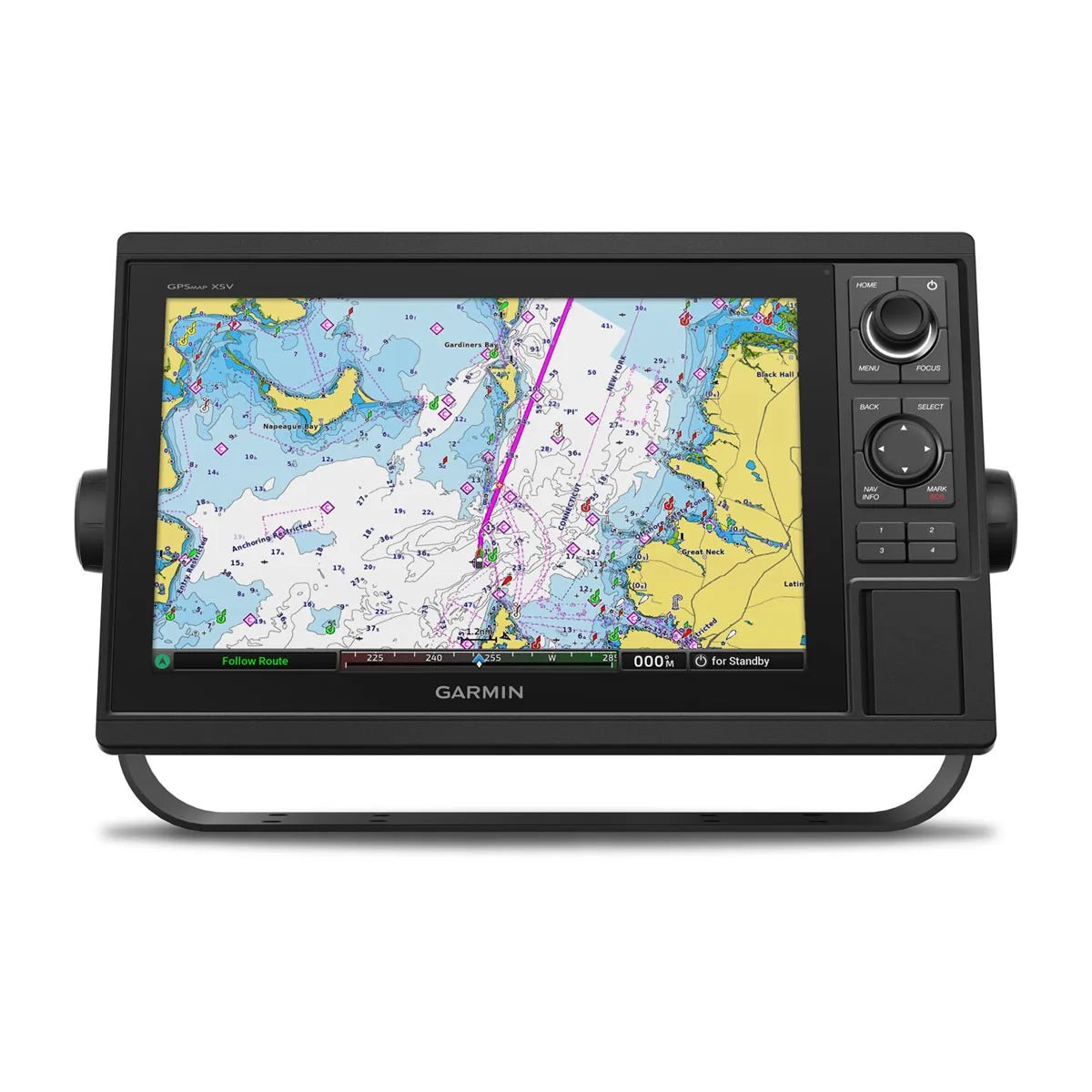

• Cartography Support: Garmin Navionics+, Garmin Navionics Vision+

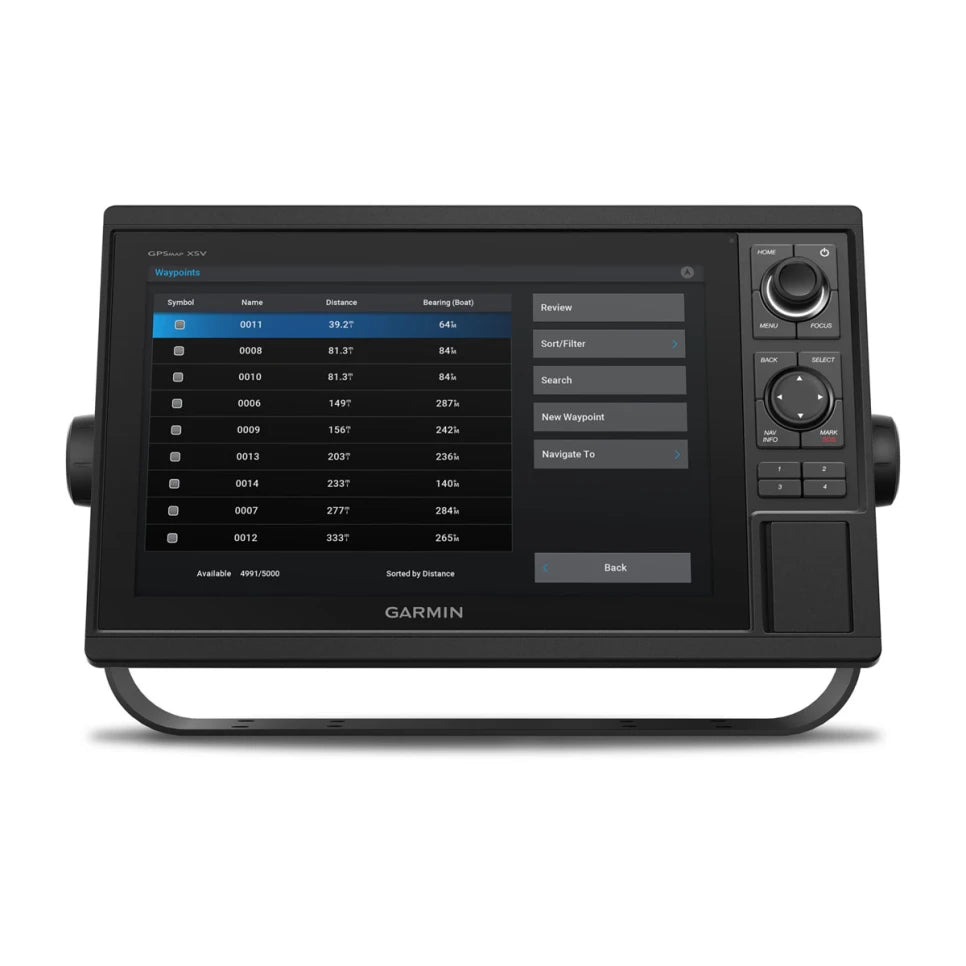

• Waypoints: 5,000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks
