GPSMAP 723

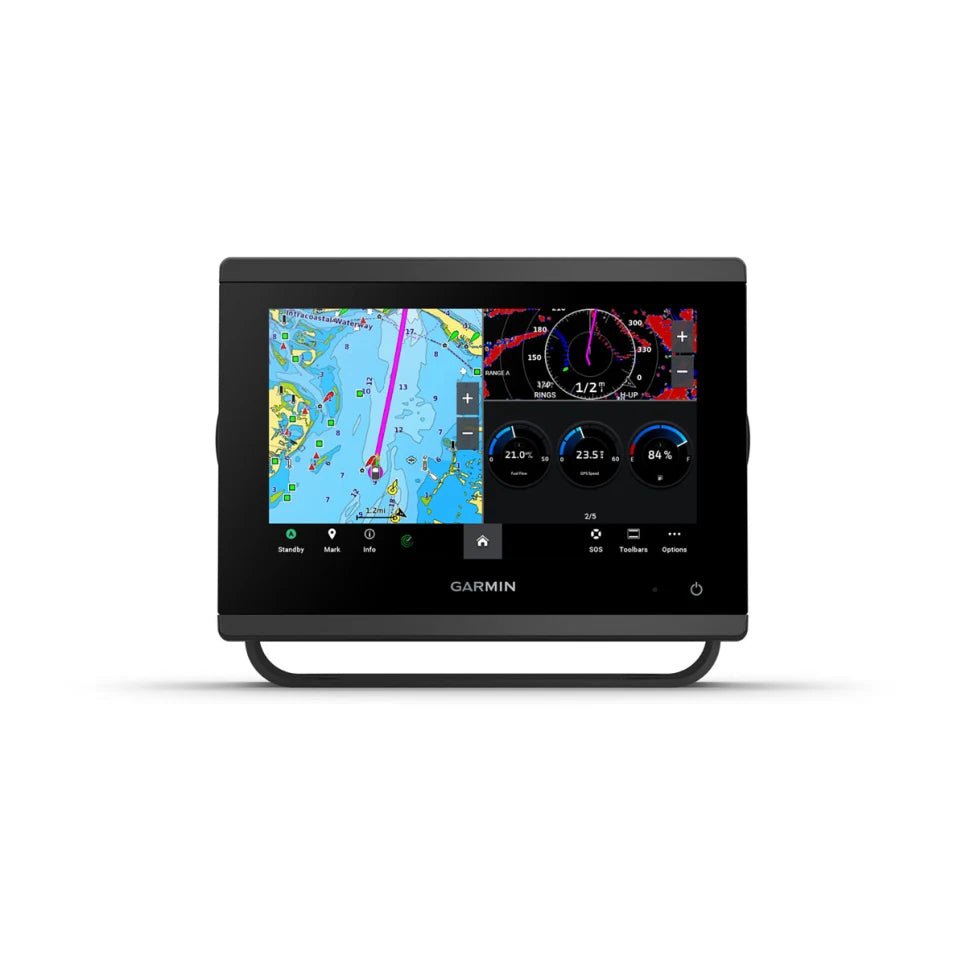

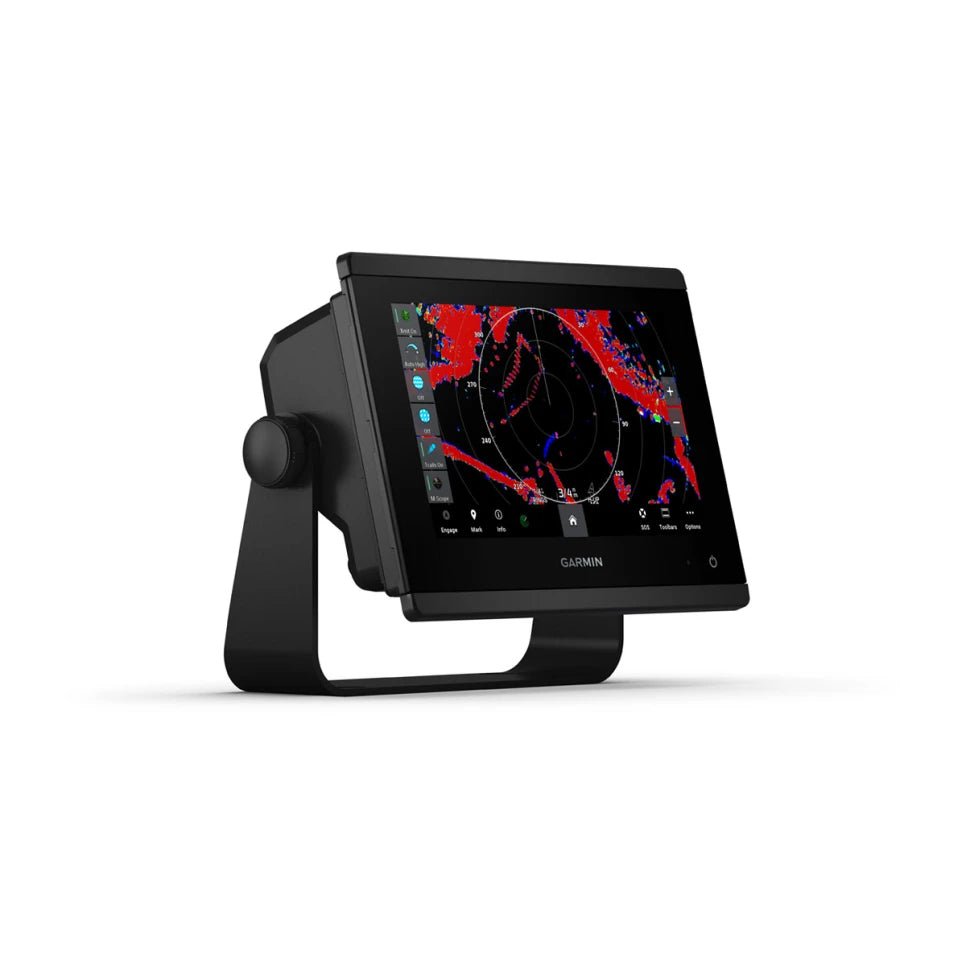

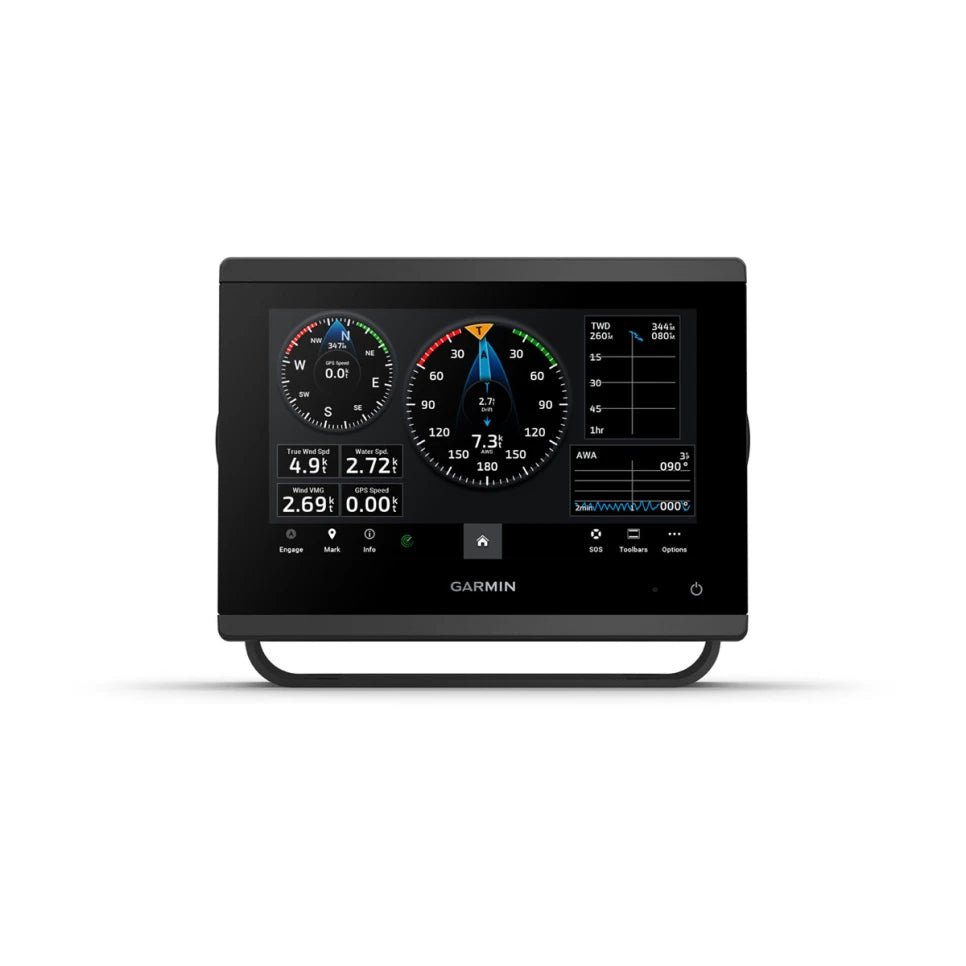

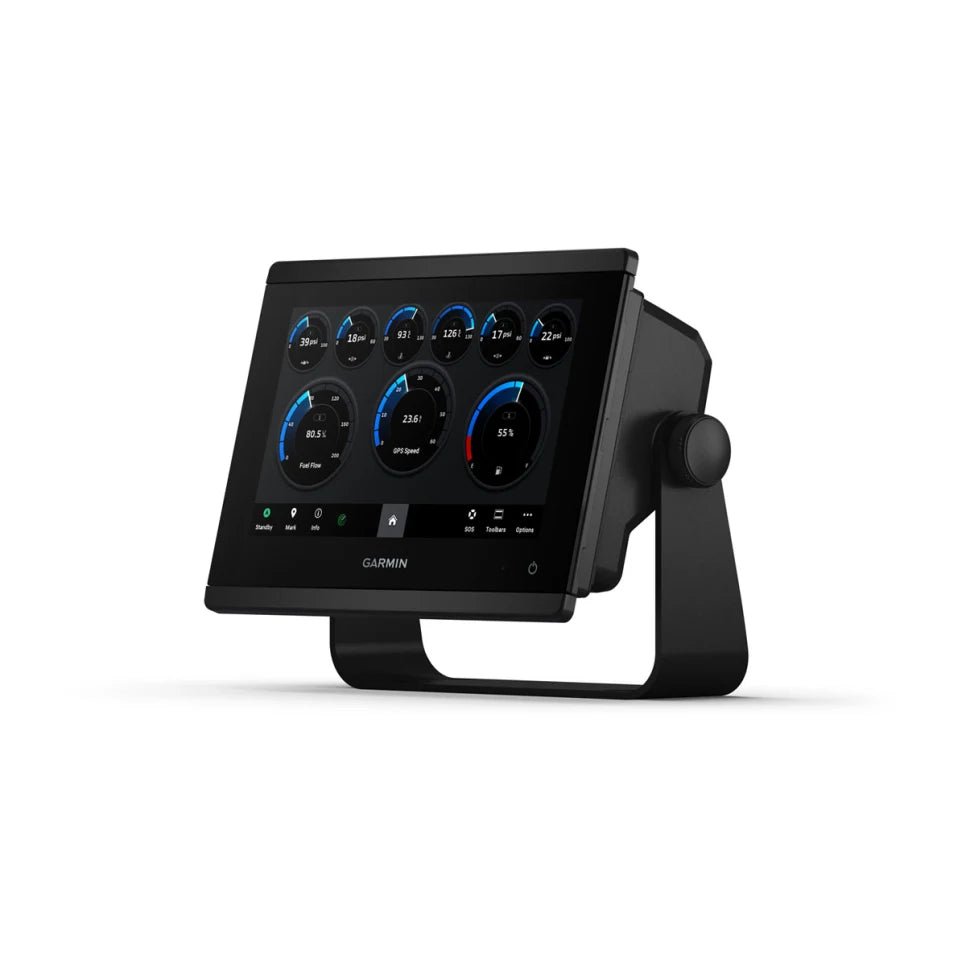

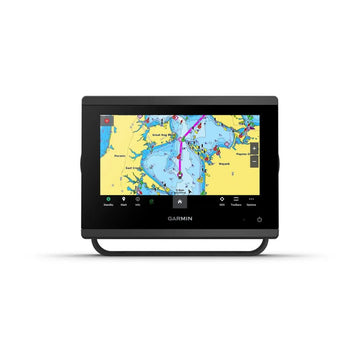

The Garmin GPSMAP 723 is a powerful and intuitive chartplotter designed for serious boaters. Featuring a bright, sunlight readable 7 inch touchscreen display, the GPSMAP 723 provides exceptional clarity and detail for navigation. Its high performance processor ensures smooth chart drawing, responsive operation, and seamless integration with other Garmin marine devices. Preloaded with Garmin Navionics+ coastal charts, the GPSMAP 723 offers comprehensive coverage of coastal waters, lakes, and rivers. Built in Wi Fi connectivity allows for easy software updates, wireless connection to mobile devices, and integration with the Garmin ActiveCaptain app for access to community sourced content, smart notifications, and more. The GPSMAP 723 supports a wide range of sonar technologies, including traditional CHIRP sonar, ClearVu scanning sonar, and SideVu scanning sonar, providing detailed underwater views. It is also compatible with Garmin radar, autopilots, and other marine instruments, allowing for a fully integrated navigation system. With its user friendly interface, advanced features, and rugged design, the Garmin GPSMAP 723 is the perfect navigation solution for any boater.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

• Physical Dimensions: 8.6" x 5.5" x 2.4" (21.8 x 14.0 x 6.2 cm)
• Display Size: 6.1" x 3.4"; 7.0" diagonal (15.4 x 8.6 cm; 17.8 cm diagonal)
• Display Resolution: 1024 x 600 pixels
• Display Type: WVGA display
• Weight: 1.7 lbs (0.8 kg)
• Water Rating: IPX7

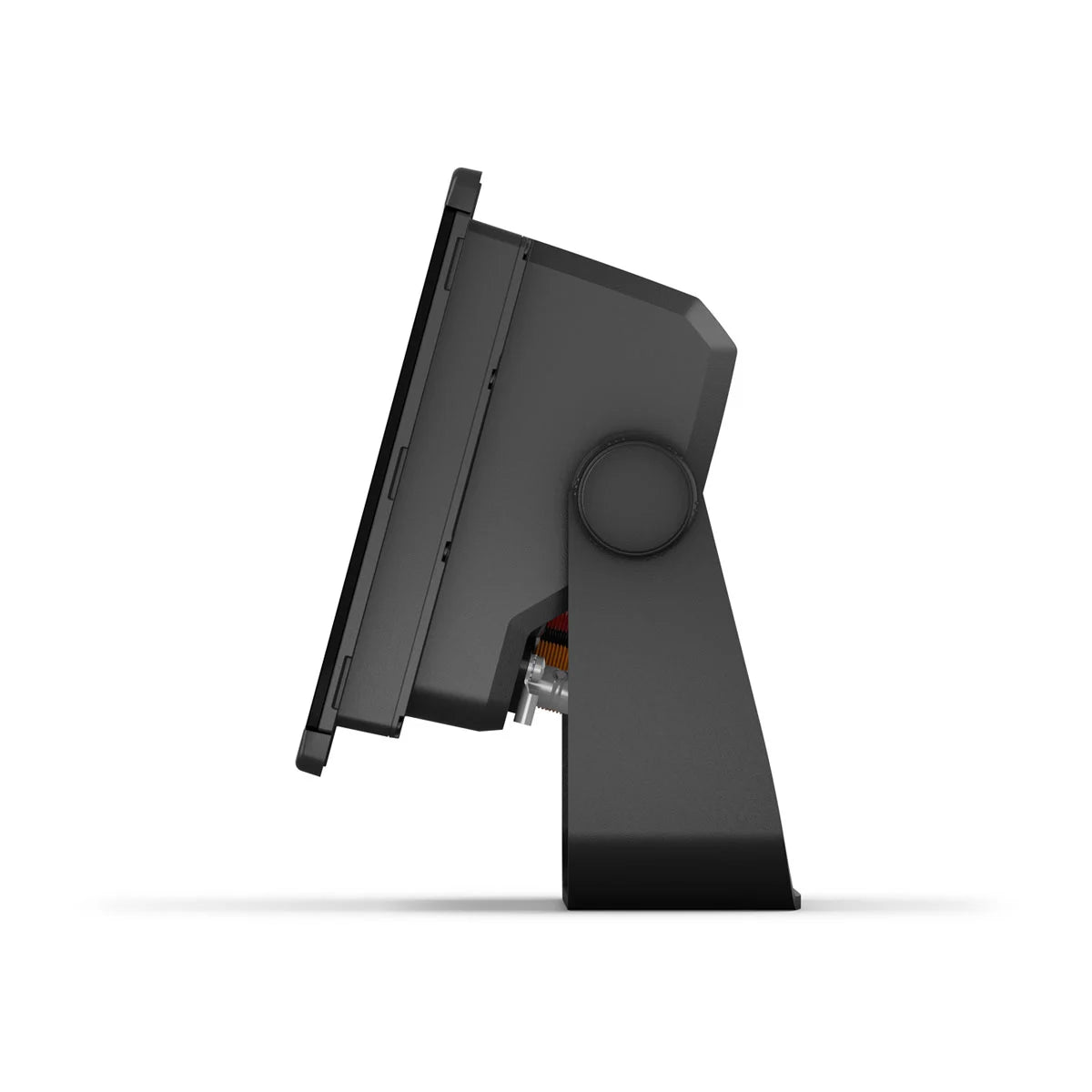

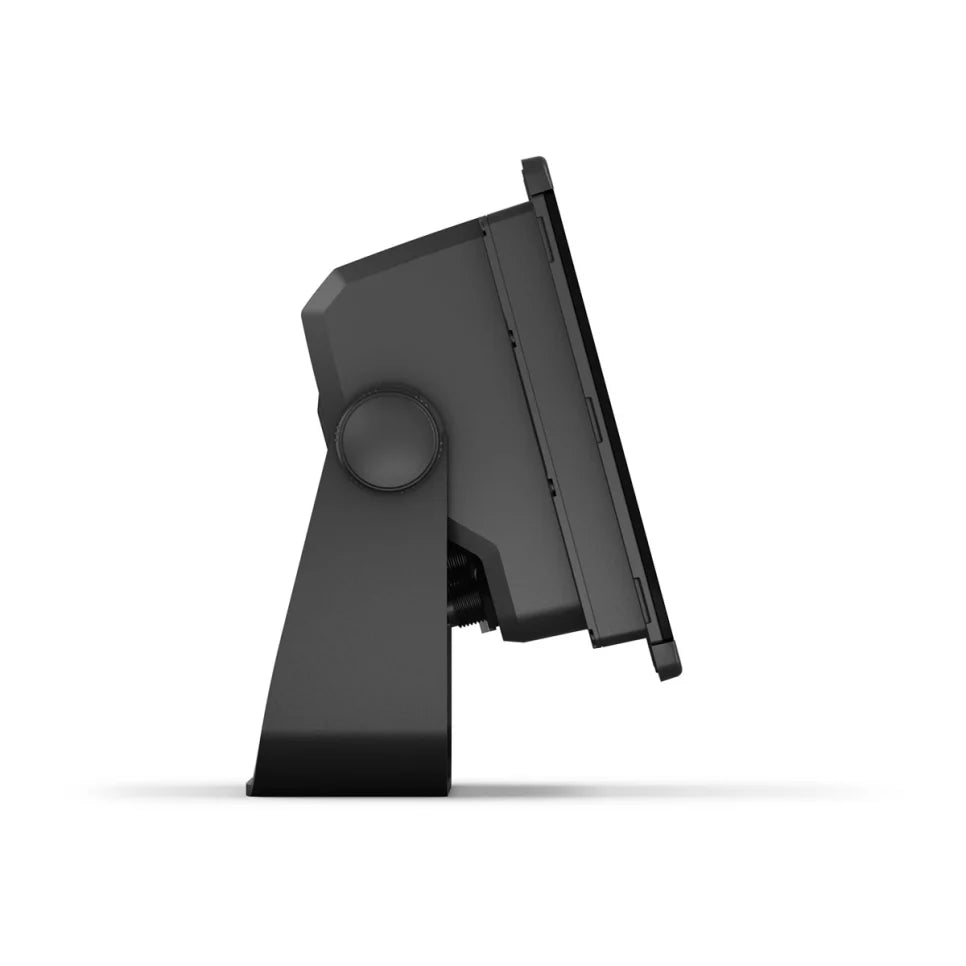

• Mounting Options: Bail, flush, flat
• Power Consumption: 18 W maximum
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz

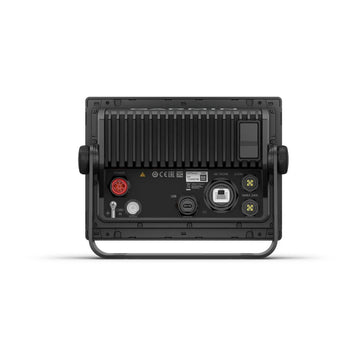

• Garmin Marine Network Ports: 1
• NMEA 2000 Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Wi Fi
• J1939 Connectivity: Yes

Charting and Sonar

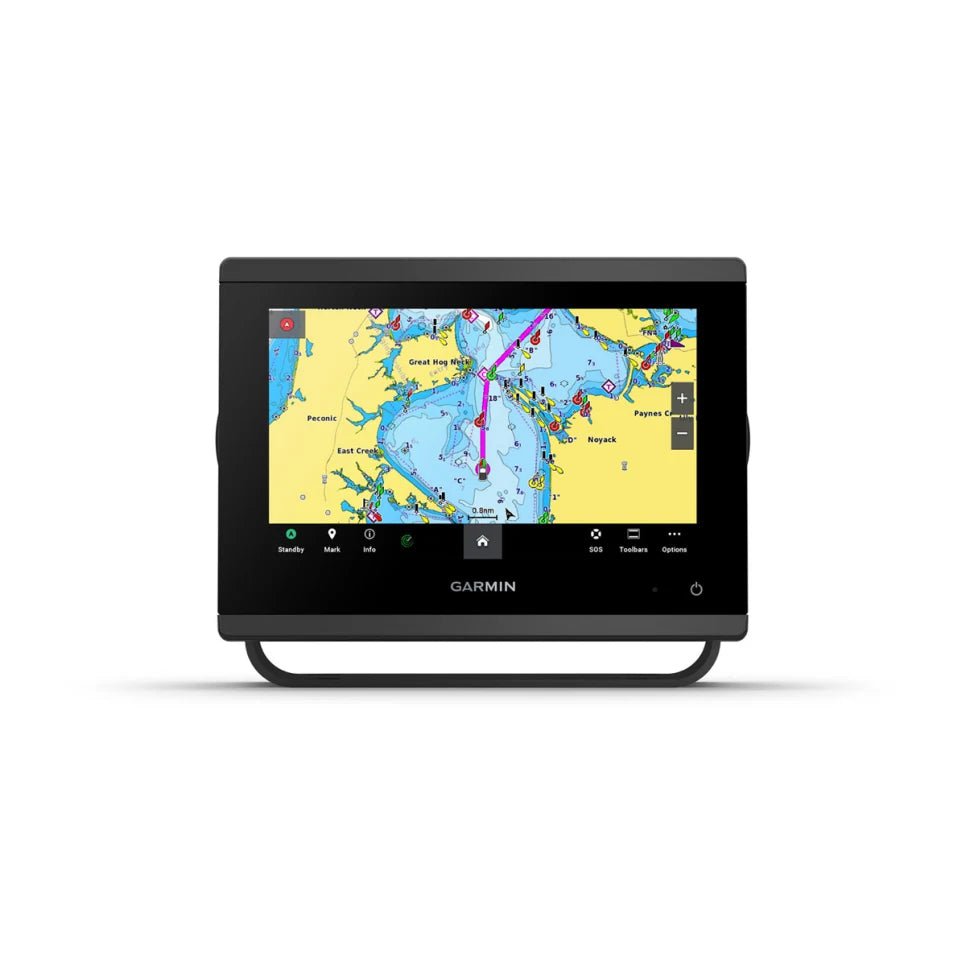

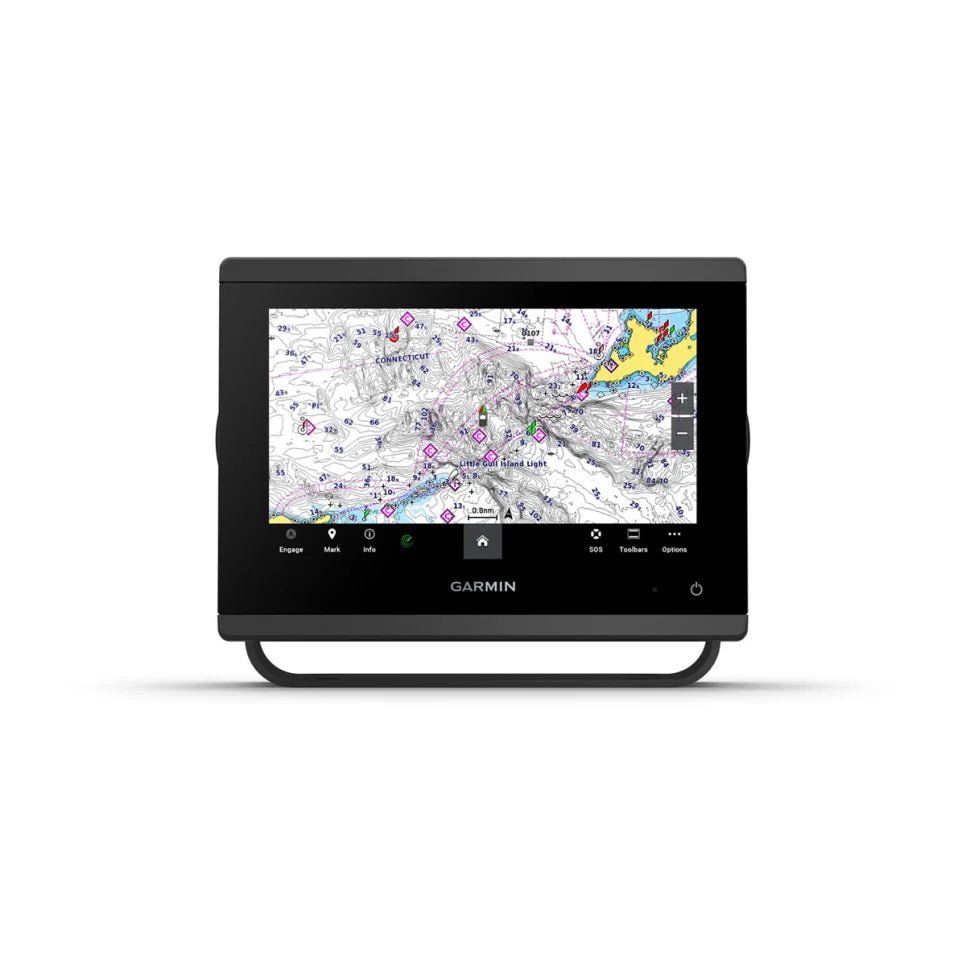

• Preloaded Charts: Garmin Navionics+ US Coastal
• Accepts Data Cards: 2 SD card slots
• Waypoints: 5,000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks
• Supports AIS (track position of target ships): Yes
• Supports DSC (displays position data from DSC capable VHF radio): Yes
• Sonar Capabilities: Built in CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar
• Sonar Frequency: Traditional: 50/77/83/200 kHz, ClearVu/SideVu: 260/455/800 kHz
• Transmit Power: 500 W (RMS)

GPSMAP 723xsv Variation

• Sonar Capabilities: Includes built in CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar
• Transducer Included: Transducer may be included depending on the bundle purchased.
