GPSMAP 723xsv

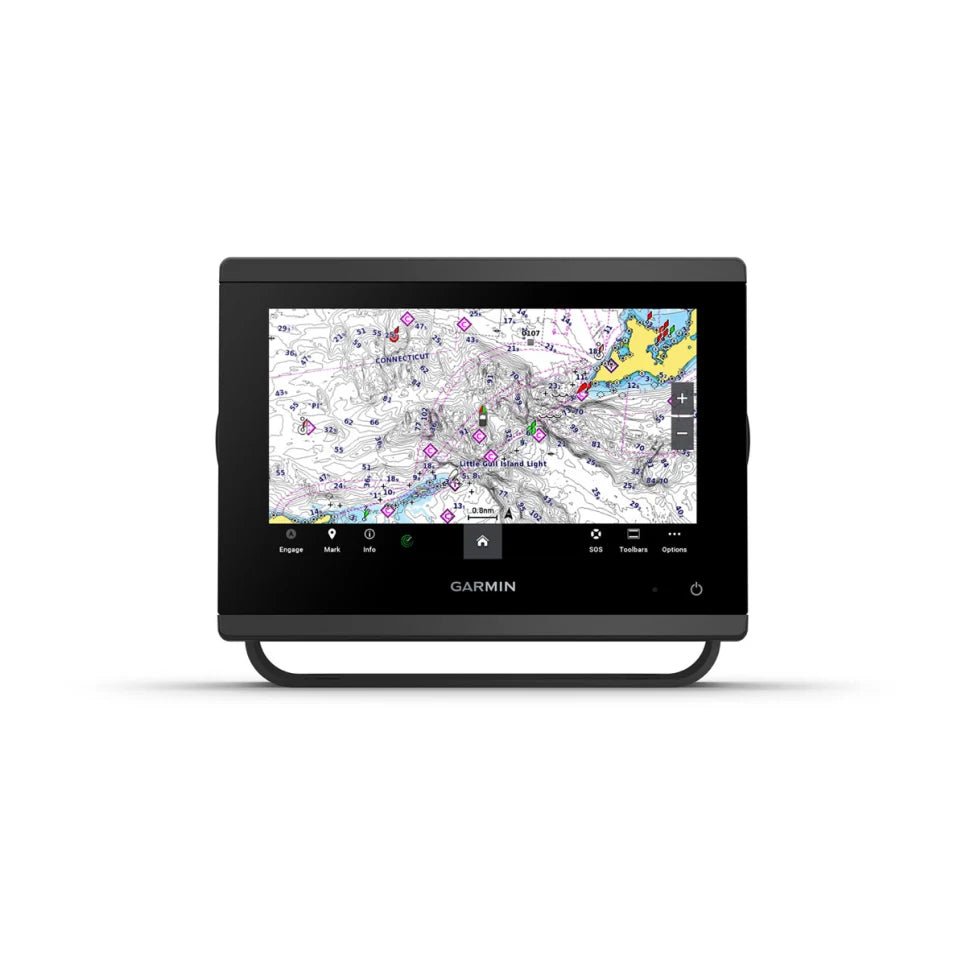

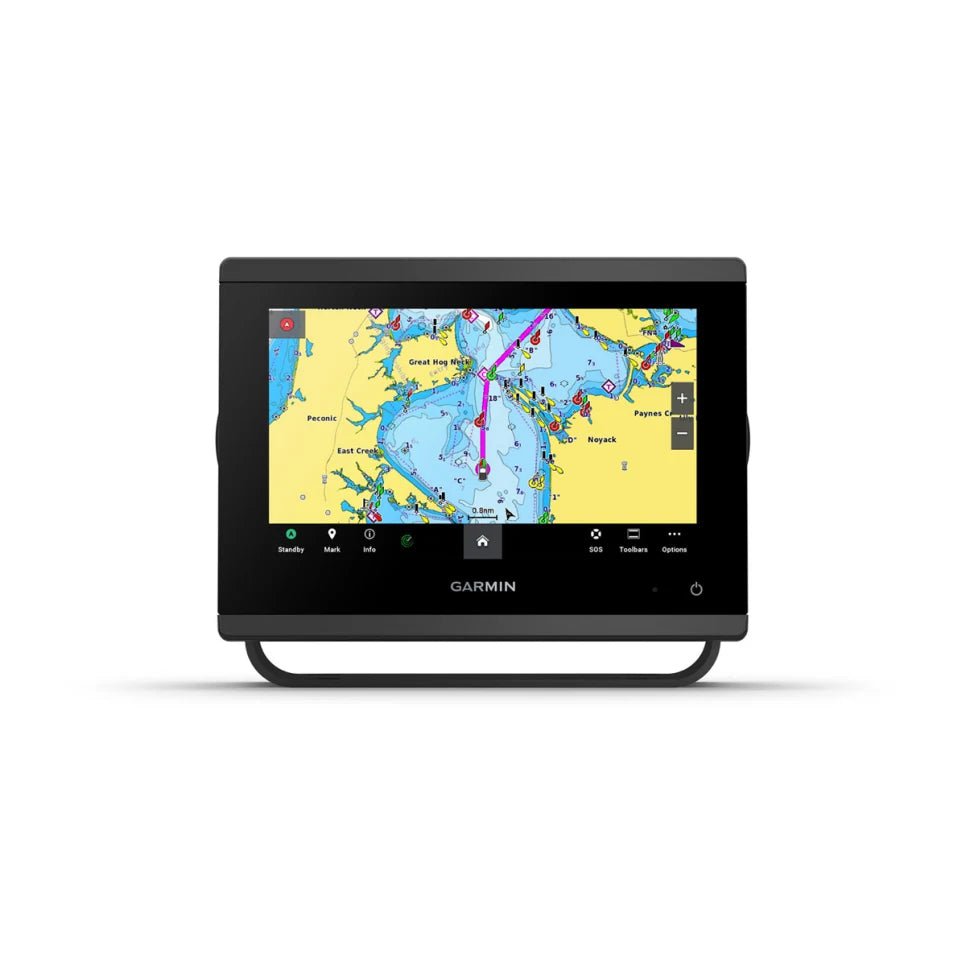

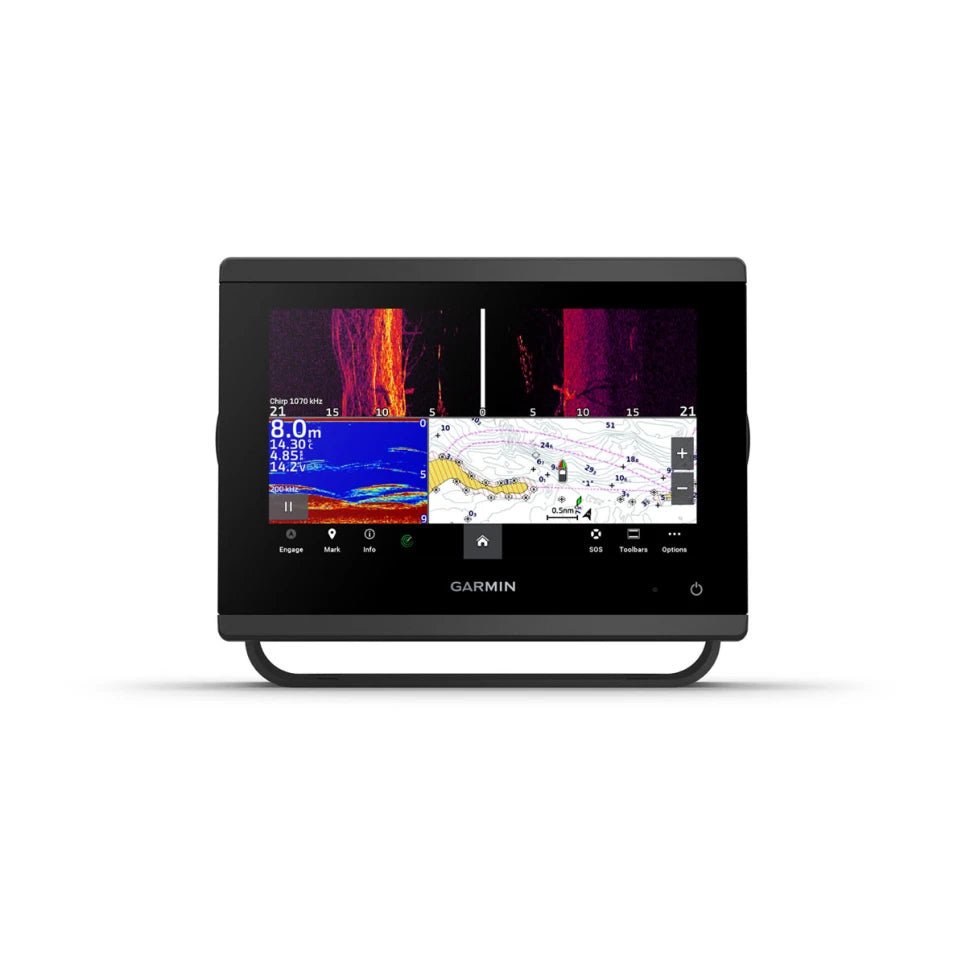

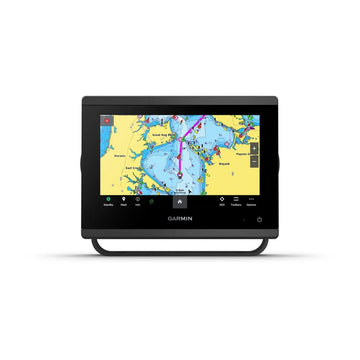

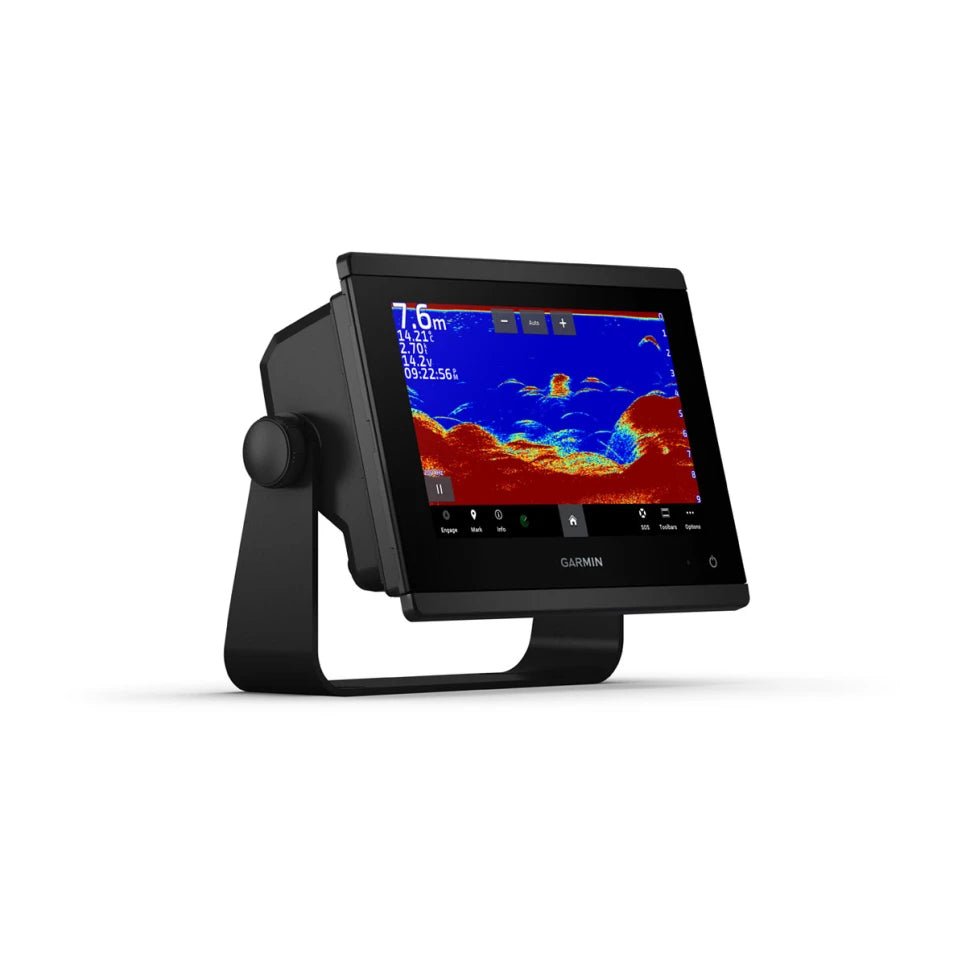

Experience the pinnacle of marine navigation with the Garmin GPSMAP 723xsv. This chartplotter and sonar combo offers a bright, sunlight readable 12 inch touchscreen display, providing exceptional clarity and ease of use. Navigate with confidence using preloaded BlueChart g3 coastal charts and LakeVu g3 inland maps, featuring integrated Garmin and Navionics content. The built in high definition sonar capabilities include CHIRP traditional sonar, ClearVu scanning sonar, and SideVu scanning sonar, allowing you to see what's beneath and around your boat with incredible detail. Stay connected with integrated Wi Fi connectivity, enabling access to ActiveCaptain app features such as smart notifications, software updates, and Quickdraw Contours community mapping. The GPSMAP 723xsv is fully network capable with NMEA 2000 and Garmin Marine Network support, allowing seamless integration with other Garmin devices such as radar, autopilots, and instruments. Its powerful processing capabilities ensure smooth chart redraws and responsive performance, even when running multiple applications simultaneously. Whether you're a seasoned angler or a weekend boater, the GPSMAP 723xsv provides the advanced features and reliable performance you need for a safe and enjoyable experience on the water.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Garmin GPSMAP 723xsv Technical Specifications

General

• Physical Dimensions: 11.7" x 8.3" x 3.0" (29.6 cm x 21.2 cm x 7.6 cm)
• Display Size: 12" diagonal
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Weight: 5.0 lbs (2.3 kg)
• Water Rating: IPX7

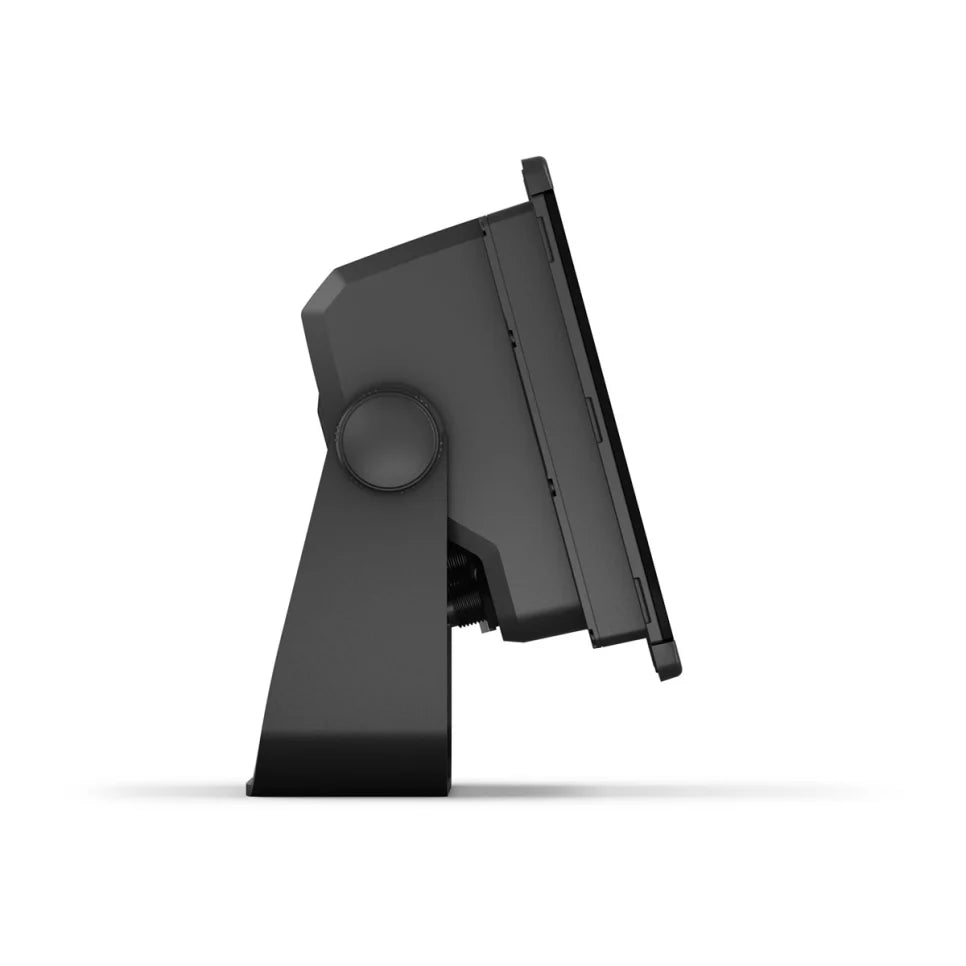

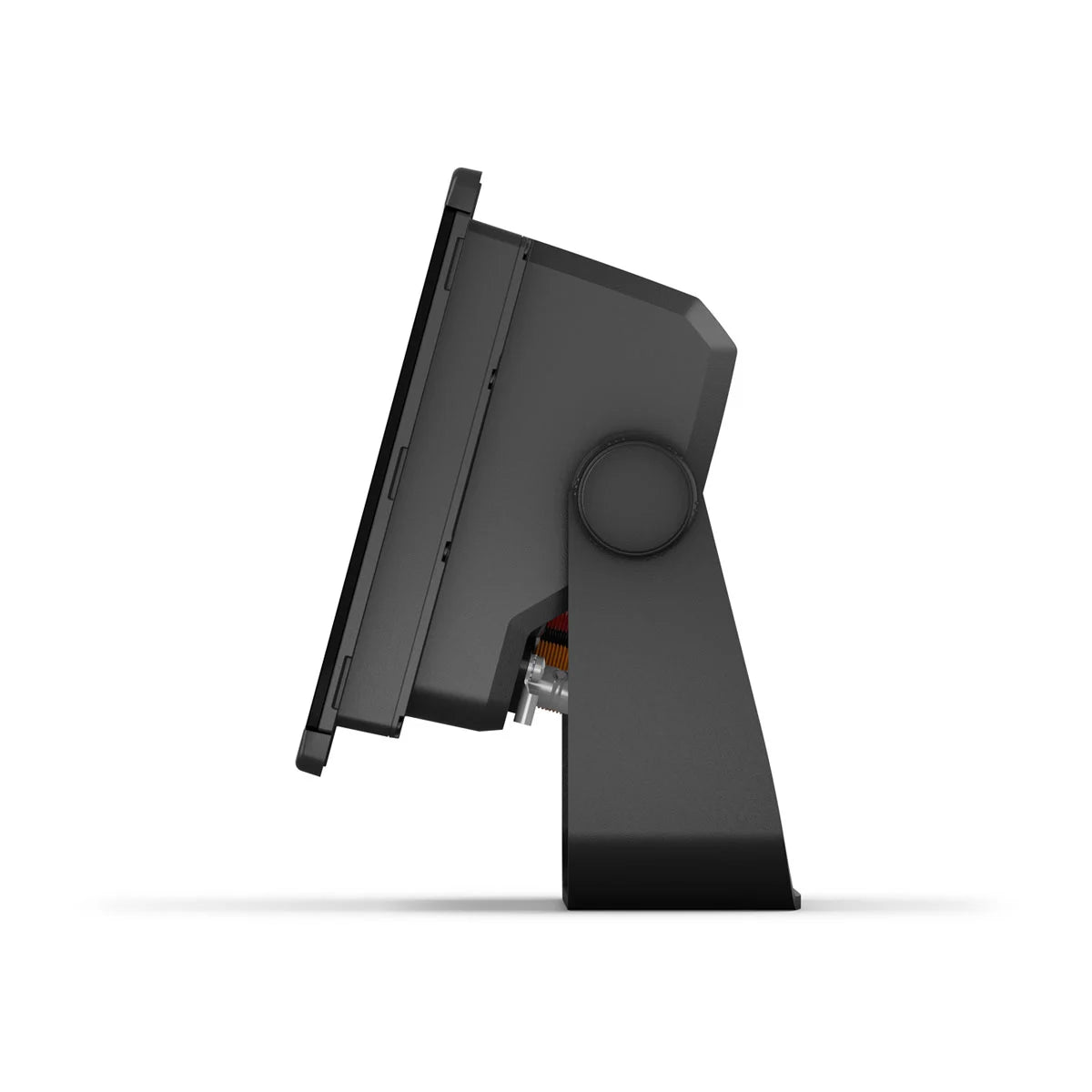

• Mounting Options: Bail, Flush, Flat
• Power Consumption: Max power usage at 10 Vdc: 36 W Typical current draw at 12 Vdc: 1.5 A Max current draw at 12 Vdc: 3.0 A

Maps & Memory

• Accepts Data Cards: 2 SD card slots
• Waypoints: 5000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks

Sensors

• Built in Receiver: Yes
• GPS: Yes
• GLONASS: Yes
• Galileo: Yes
• BeiDou: Yes
• WAAS: Yes

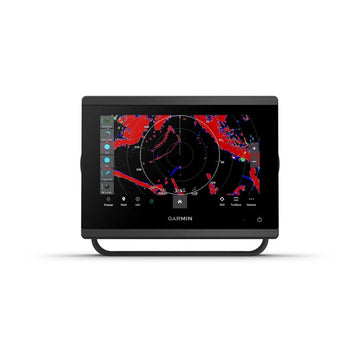

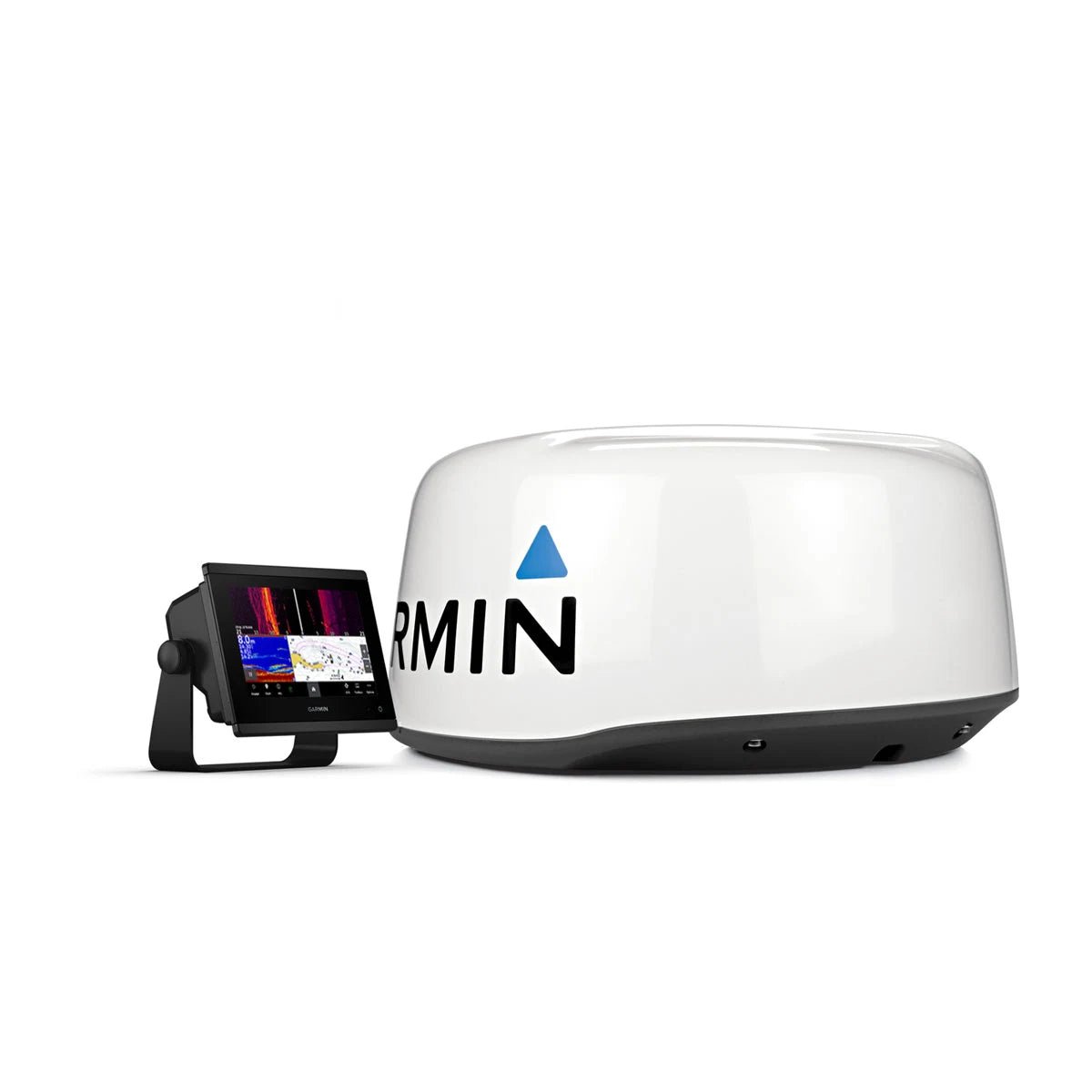

• Compatible with Garmin Radar: Yes
• Compatible with Garmin Sonar: Yes
• Supports AIS (tracks target ships position): Yes
• Supports DSC (displays position data from DSC capable VHF radio): Yes

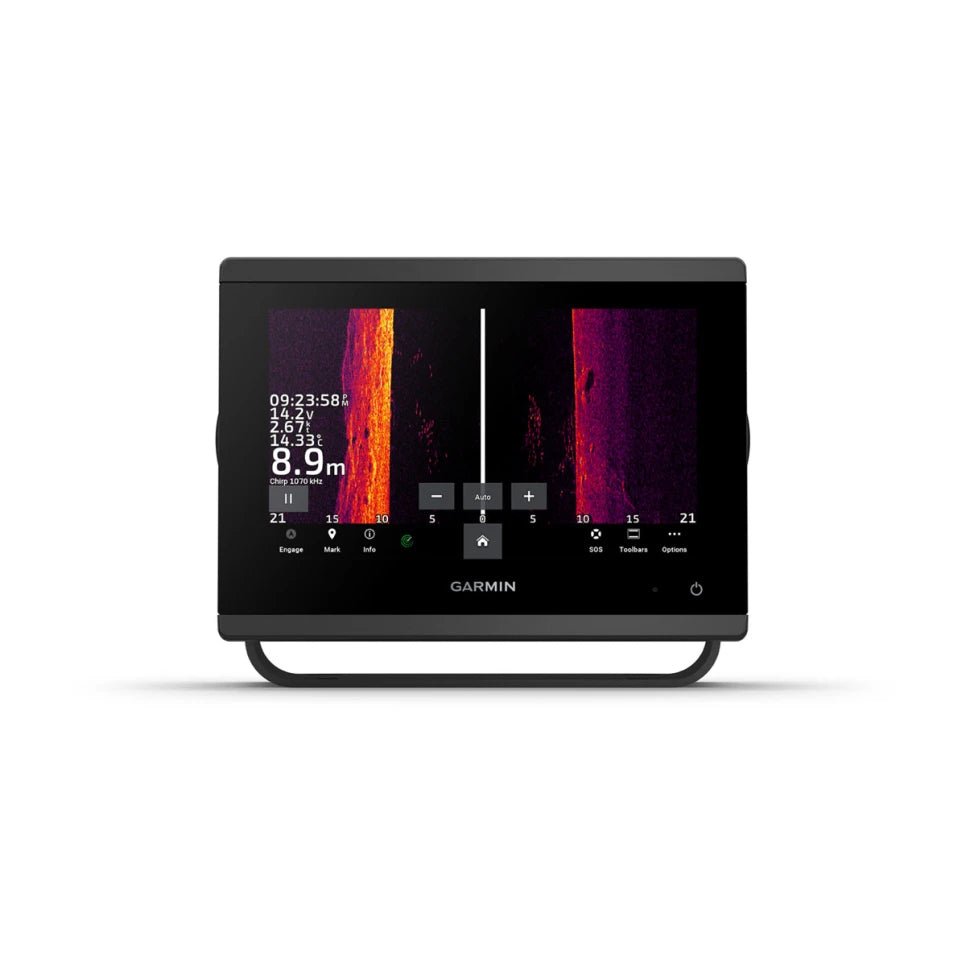

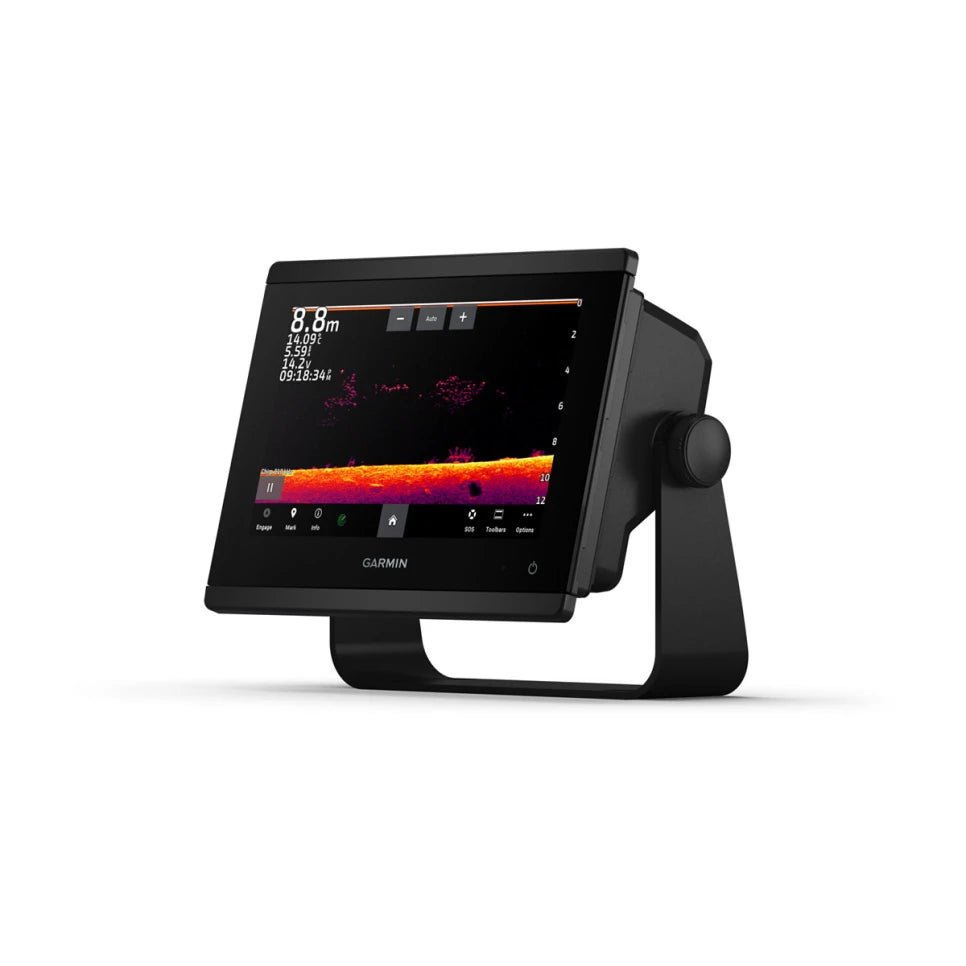

Sonar Features & Specifications

• CHIRP Sonar: Yes (Built in)
• ClearVu: Yes (Built in)
• SideVu: Yes (Built in)
• Maximum Depth: 5,000 ft @ 77 kHz, freshwater 2,000 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
• Bottom Lock (shows return from the bottom up): Yes
• Water Temperature Log and Graph: Yes
• Sonar Recording: Yes
• Sonar History Rewind: Yes

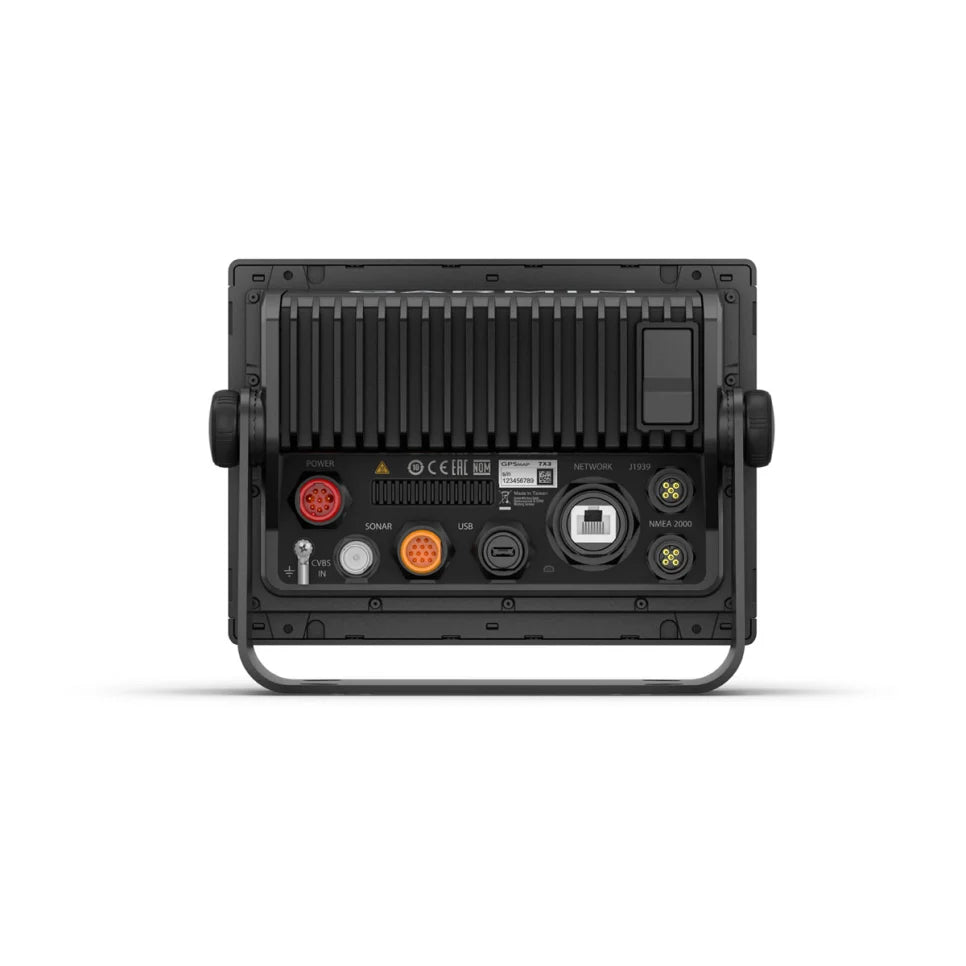

Connections

• NMEA 0183 Input Ports: 2
• NMEA 0183 Output Ports: 2
• NMEA 2000 Ports: 1
• Garmin Marine Network Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Yes
