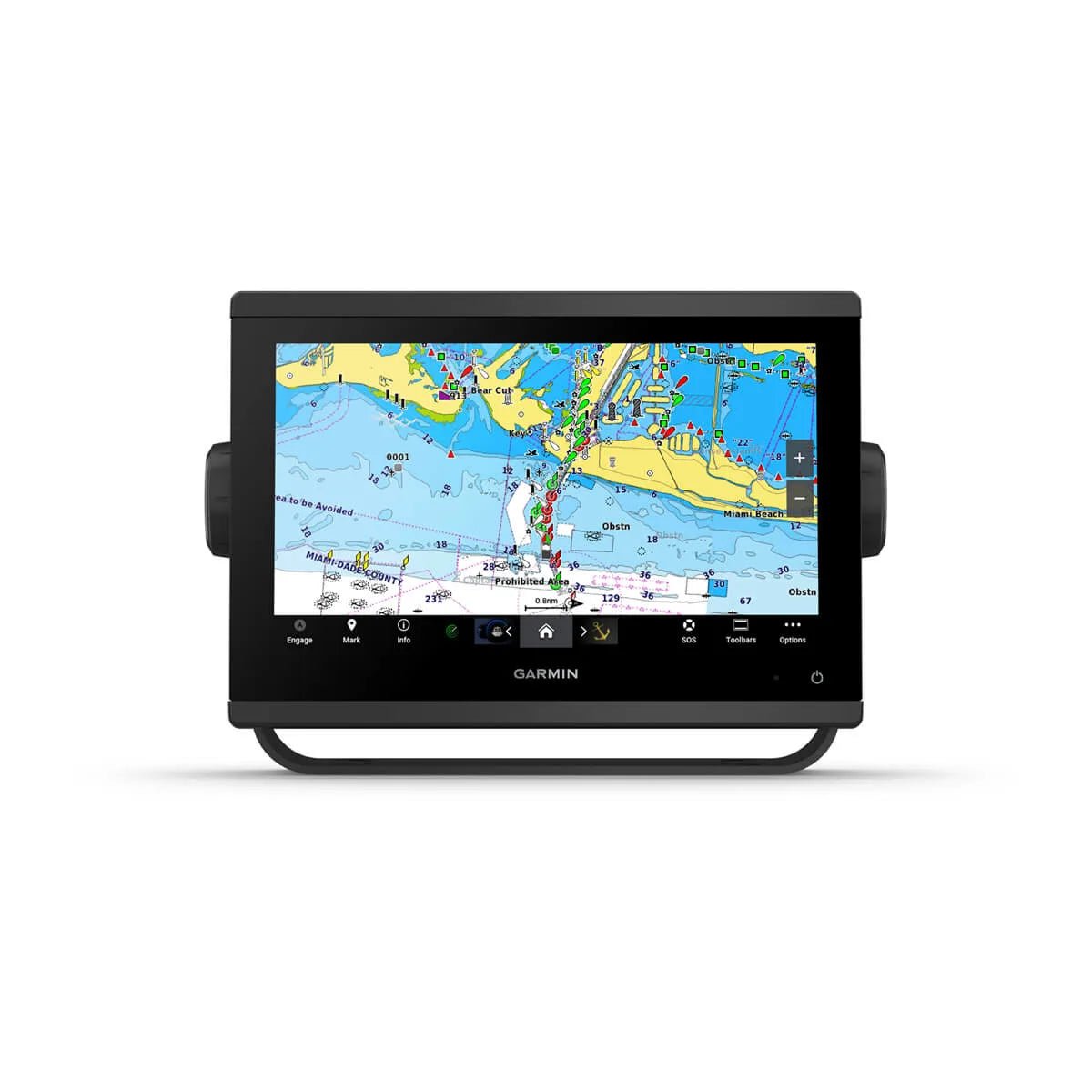

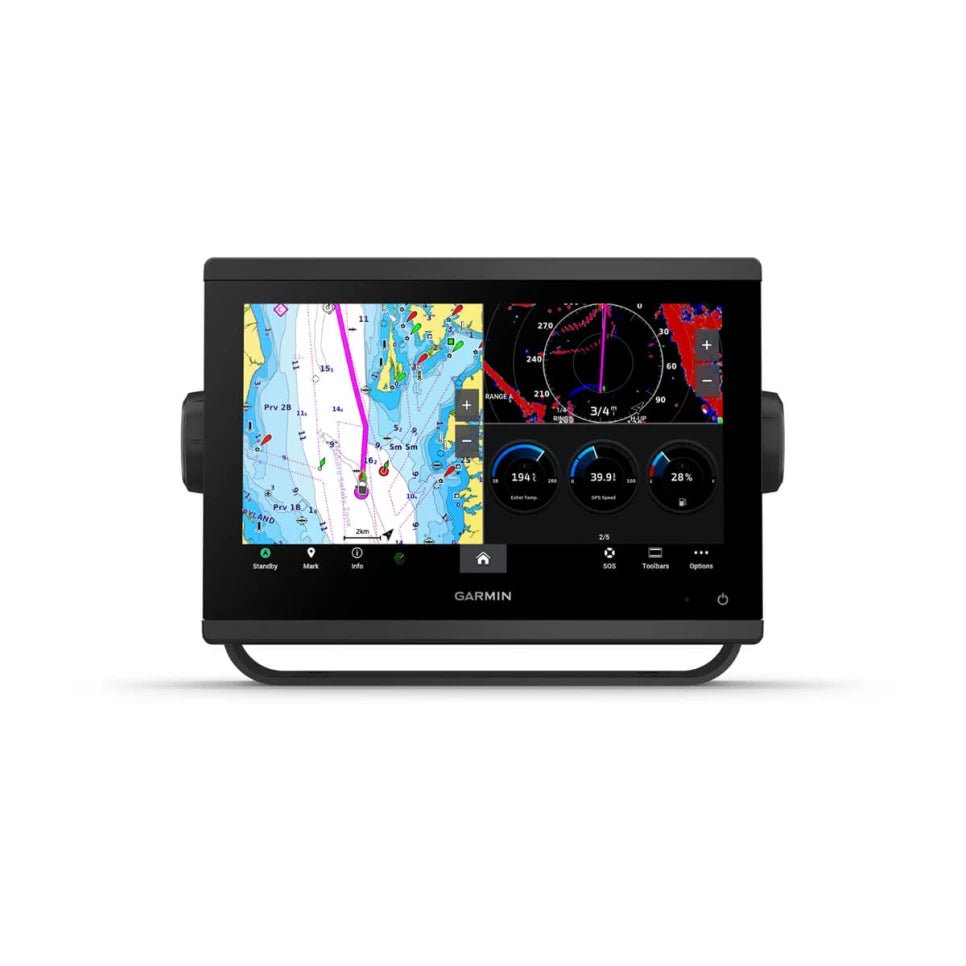

GPSMAP 923

Experience unparalleled navigation with the Garmin GPSMAP 923, a powerful chartplotter designed for serious mariners. This premium device boasts a brilliant 9-inch touchscreen display, offering exceptional clarity and readability even in direct sunlight. Navigate with confidence using preloaded BlueChart g3 coastal charts and LakeVu g3 inland maps, featuring integrated Garmin and Navionics data. Enjoy advanced features like built-in Wi-Fi connectivity for seamless integration with Garmin's ActiveCaptain app, allowing you to access OneChart, smart notifications, software updates, and more. The GPSMAP 923 supports a wide range of transducers, including traditional, CHIRP, ClearVu, and SideVu scanning sonars, providing detailed underwater views. Its high-sensitivity GPS receiver ensures accurate positioning, while its NMEA 2000 connectivity allows for easy integration with other onboard systems. Whether you're cruising, fishing, or sailing, the Garmin GPSMAP 923 delivers the performance and reliability you need to navigate with confidence.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

• Physical Dimensions: 9.1" x 6.4" x 2.1" (23.1 cm x 16.2 cm x 5.3 cm)
• Display Size: 9" diagonal (196.6 mm x 110.5 mm); 8.0" x 4.5" (203.2 mm x 114.3 mm)
• Display Resolution: 1280 x 720 pixels
• Display Type: WXGA display
• Weight: 2.3 lbs (1.0 kg)
• Water Rating: IPX7
• Mounting Options: Bail, flush or flat mount
• Power Consumption: Maximum power usage at 10 Vdc: 27 W; Typical current draw at 12 Vdc: 1.2 A; Maximum current draw at 12 Vdc: 2.3 A
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz

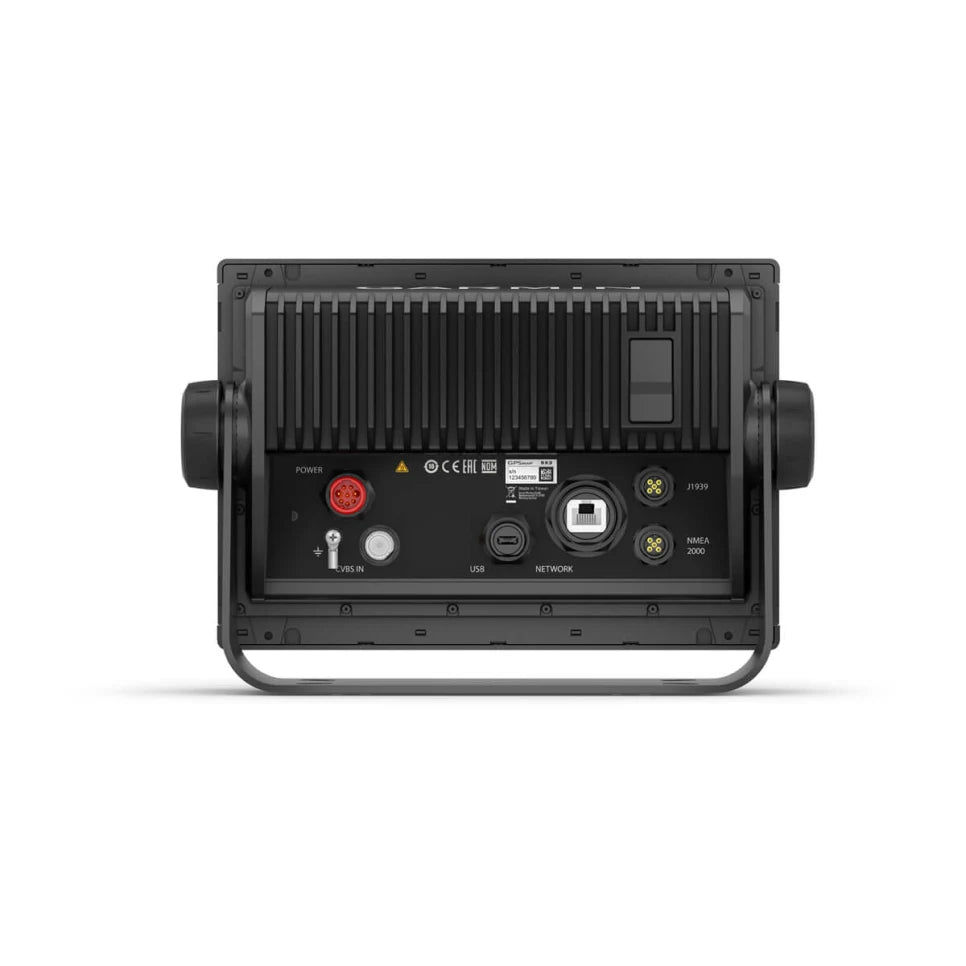

• Garmin Marine Network Ports: 1
• NMEA 2000 Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Yes

• Maps & Memory

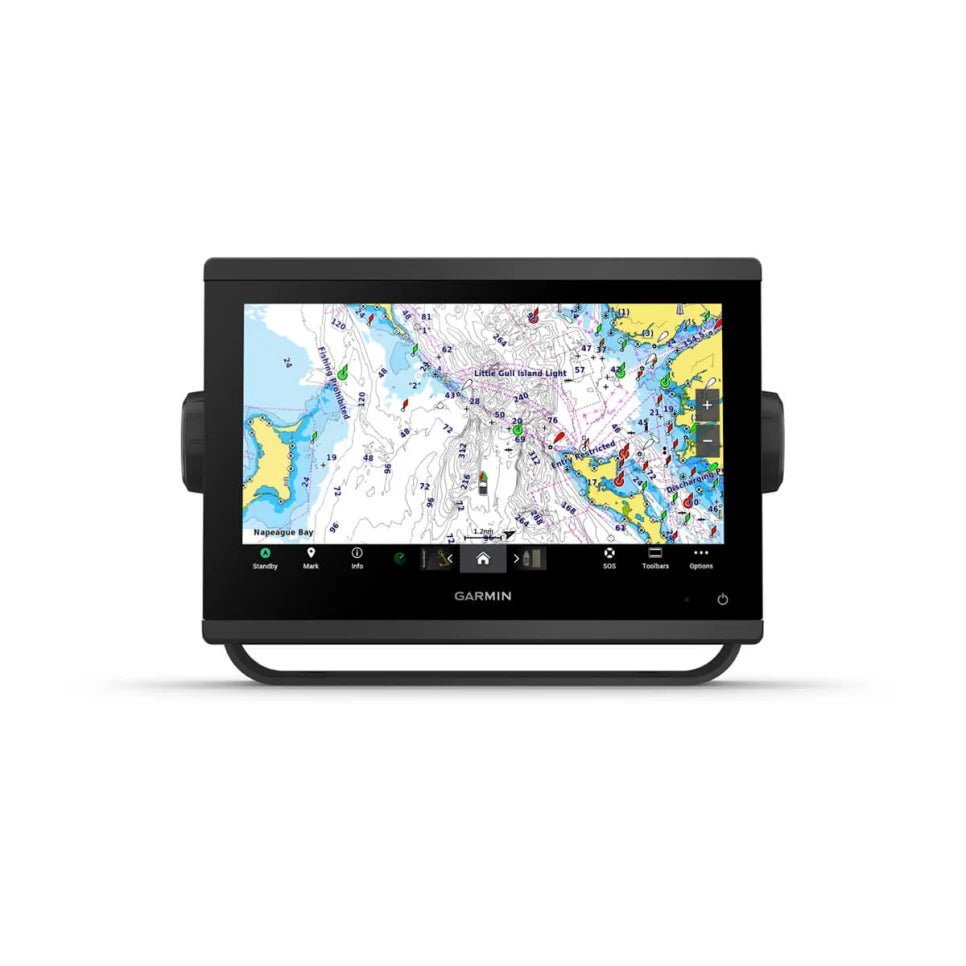

• Preloaded Maps: Preloaded BlueChart g3 (coastal charts) and LakeVu g3 (inland maps)
• Accepts Data Cards: 2 SD card slots
• Waypoints: 5,000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks

• Sonar Features & Specifications
• Supports Sonar: Yes
• CHIRP Sonar: Yes
• ClearVu: Yes
• SideVu: Yes
• Maximum Depth: Dependent on transducer
• Transducer Compatibility: 8-pin (transducer sold separately)
