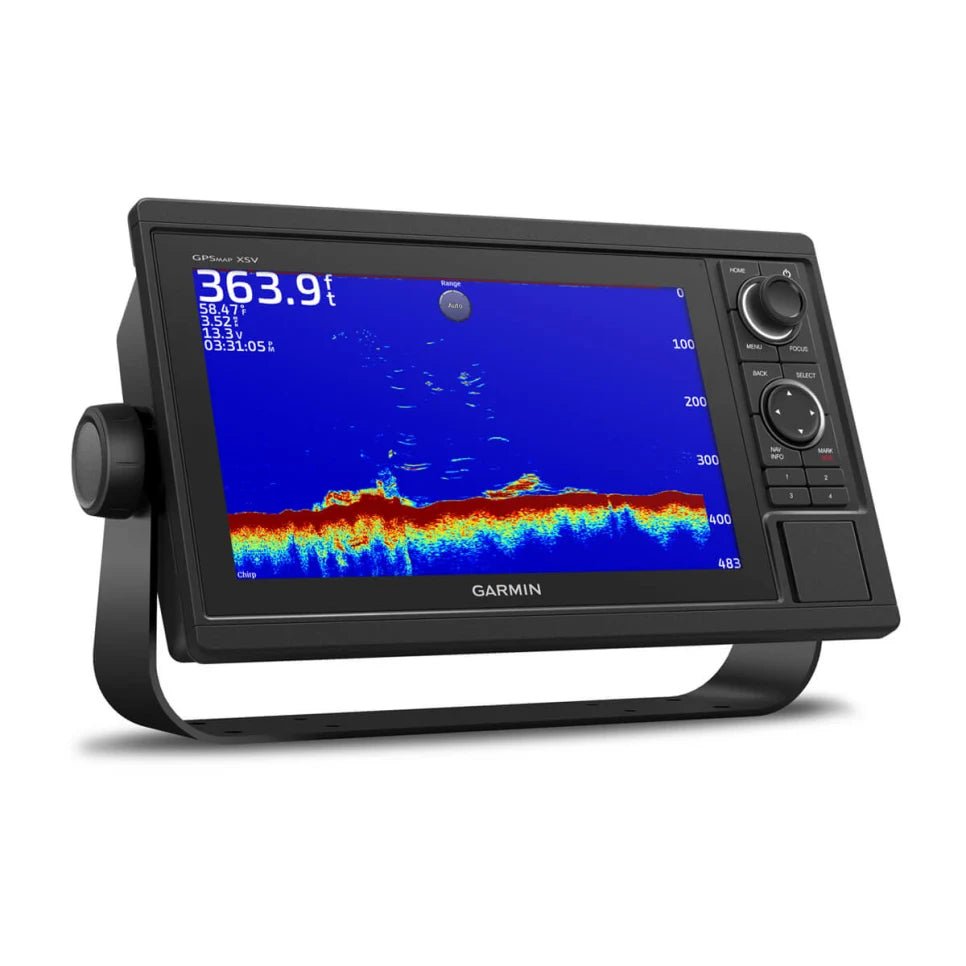

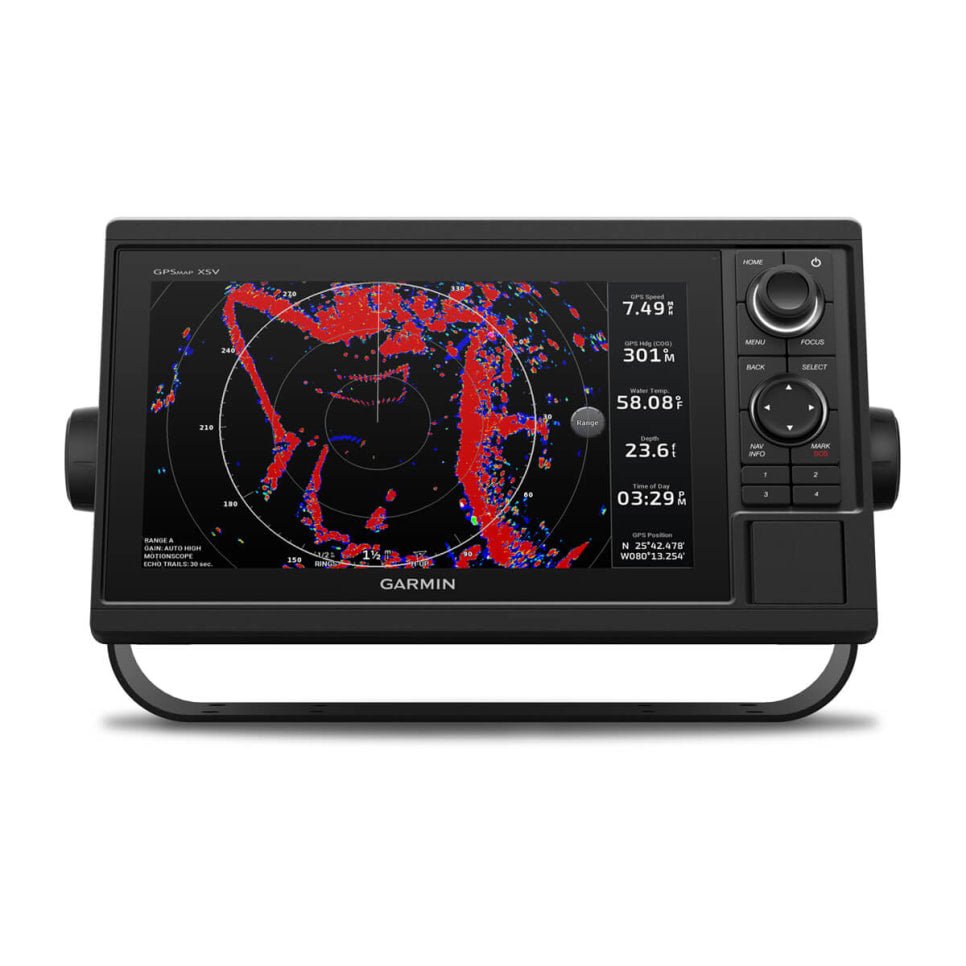

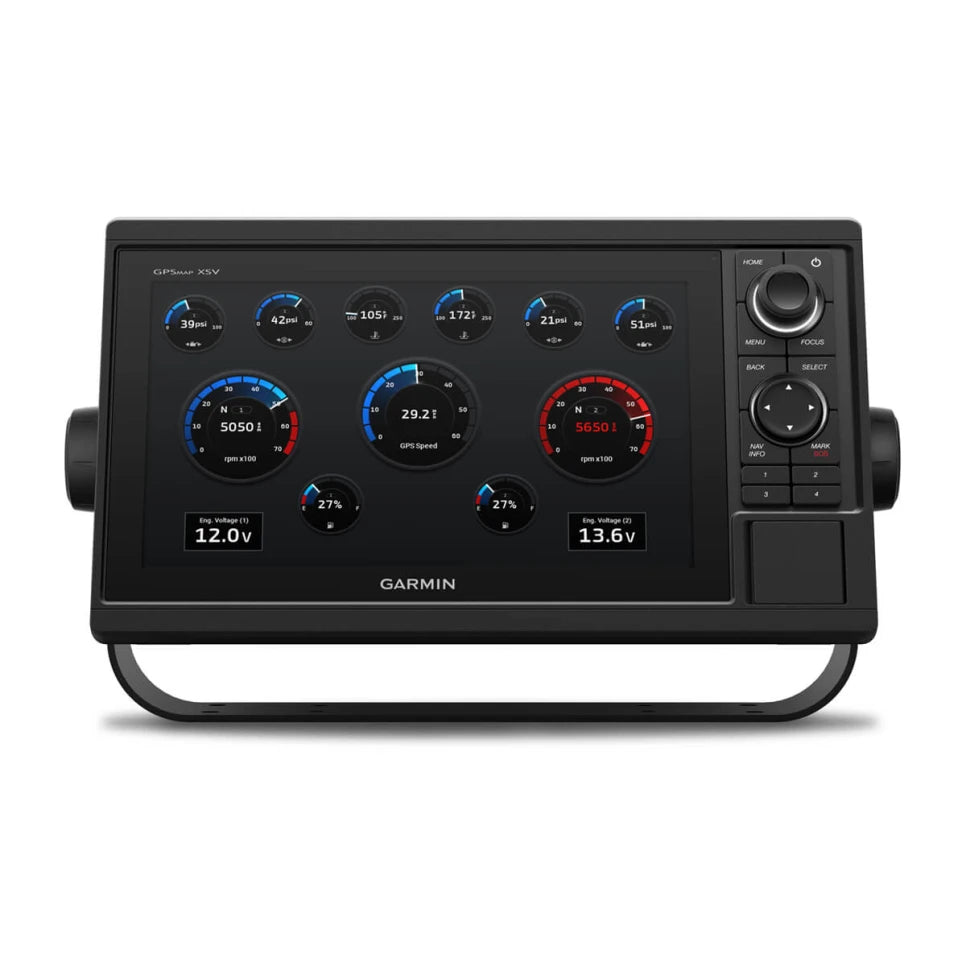

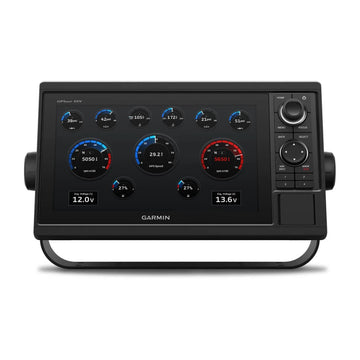

GPSMAP 1042xsv

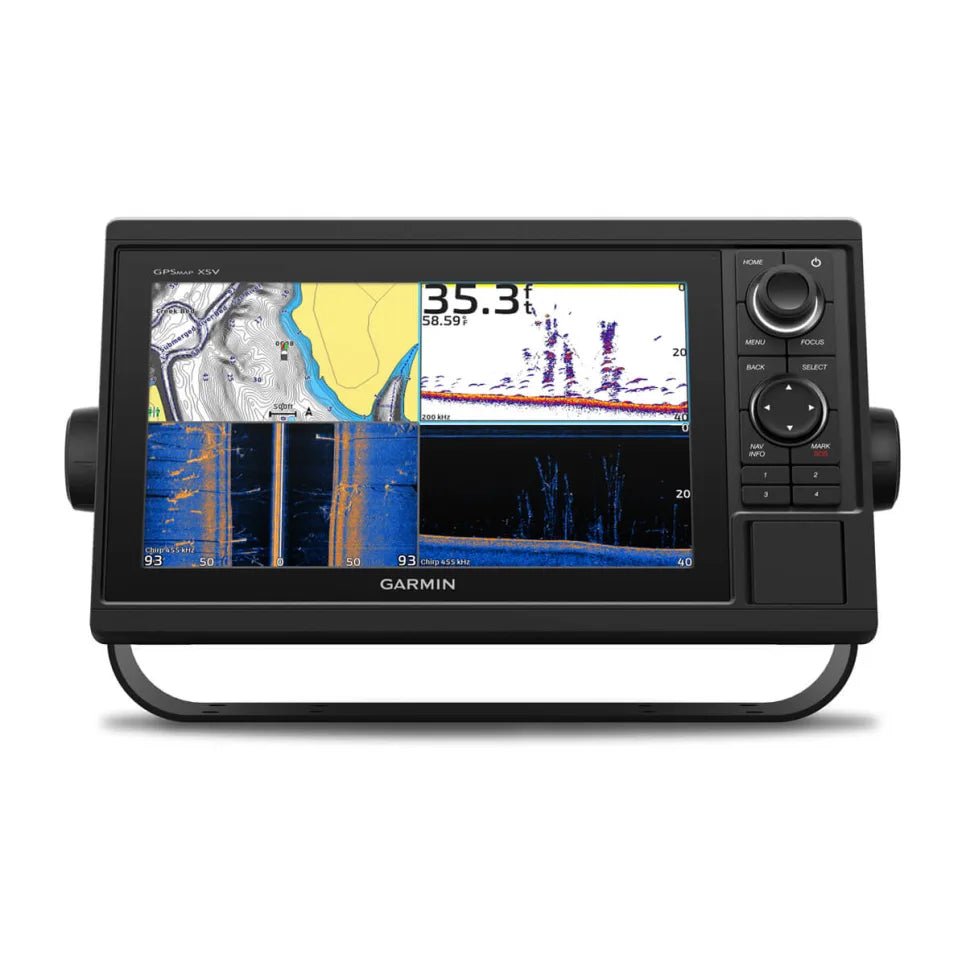

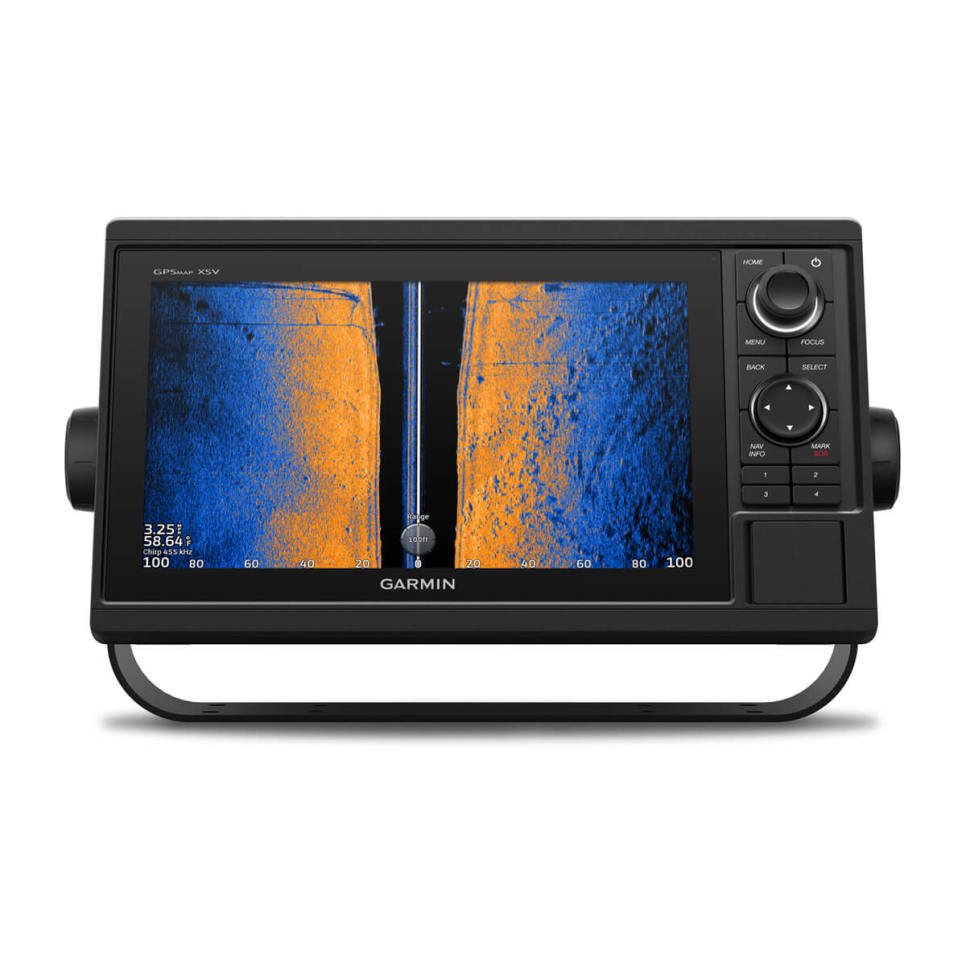

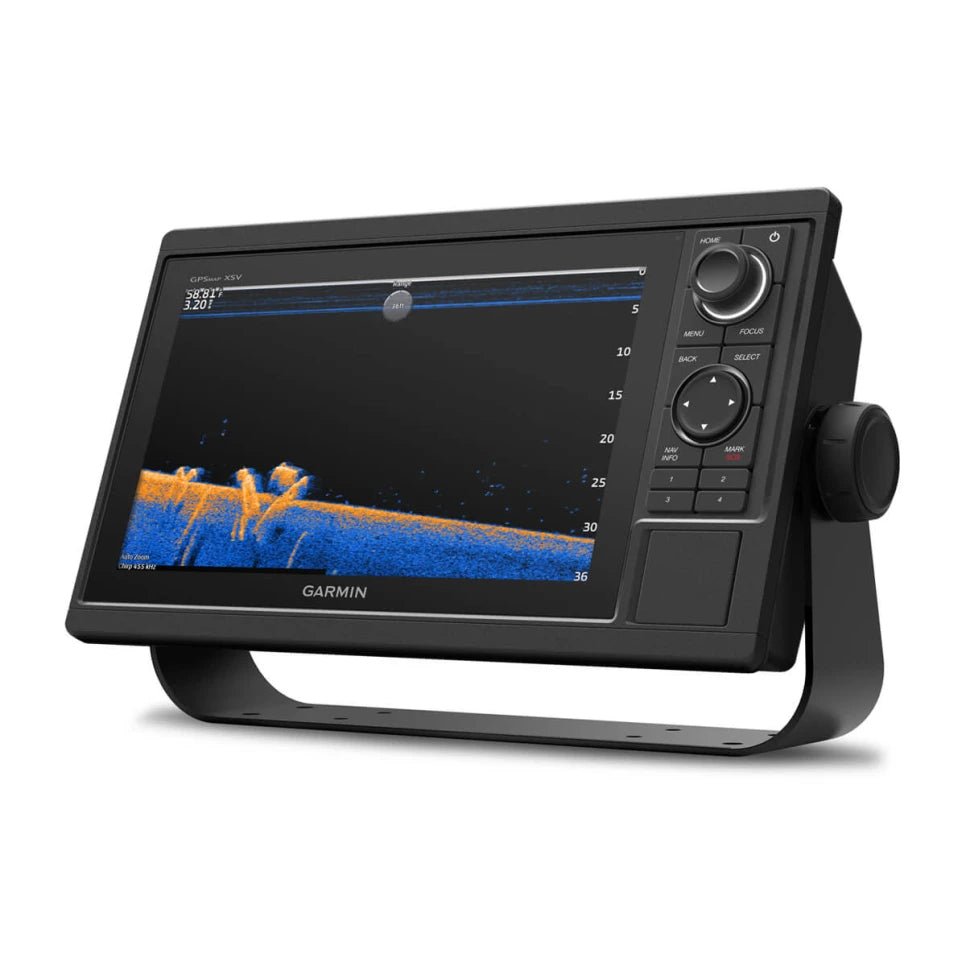

The Garmin GPSMAP 1042xsv is a powerful combination chartplotter and sonar combo designed for serious anglers and boaters. Featuring a bright 10-inch keyed display, this unit offers exceptional clarity and sunlight readability. Built-in CHIRP sonar, CHIRP ClearVu and CHIRP SideVu scanning sonars provide incredibly detailed views of what's beneath and to the sides of your boat. Preloaded BlueChart g3 coastal charts and LakeVu g3 inland maps offer comprehensive coverage of U.S. waters. The GPSMAP 1042xsv also supports Garmin's premium sonar modules, including Panoptix all-seeing sonar. Network connectivity allows you to share sonar, charts, user data, radar, and IP cameras among multiple units. Built-in Wi-Fi connectivity provides access to the ActiveCaptain app for smart notifications, community chart sharing, and software updates. The GPSMAP 1042xsv is a complete navigation and fishfinding solution for any vessel.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

• Physical Dimensions: 12.1" x 8.5" x 3.0" (30.8 x 21.6 x 7.6 cm)
• Display Size: 8.5" x 5.3"; 10.1" diagonal (21.7 x 13.6 cm; 25.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Weight: 4.0 lbs (1.8 kg)
• Water Rating: IPX7
• Antenna: Internal or external over NMEA 2000

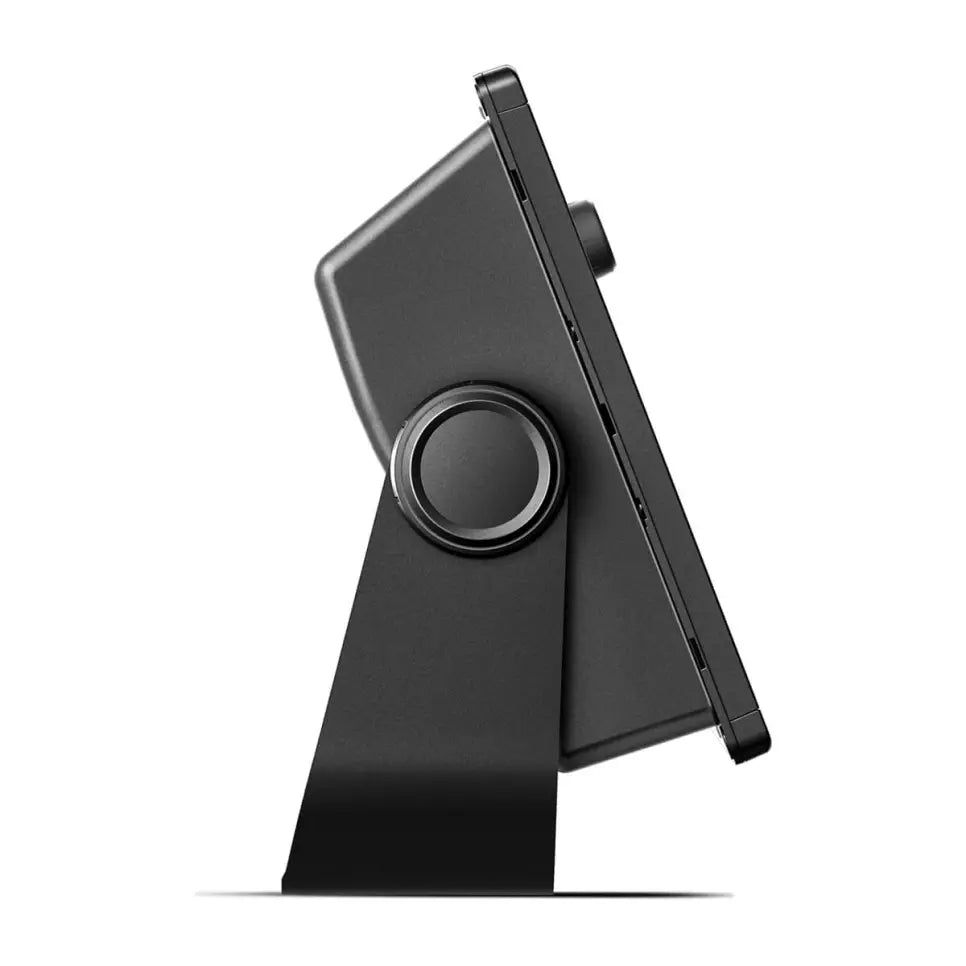

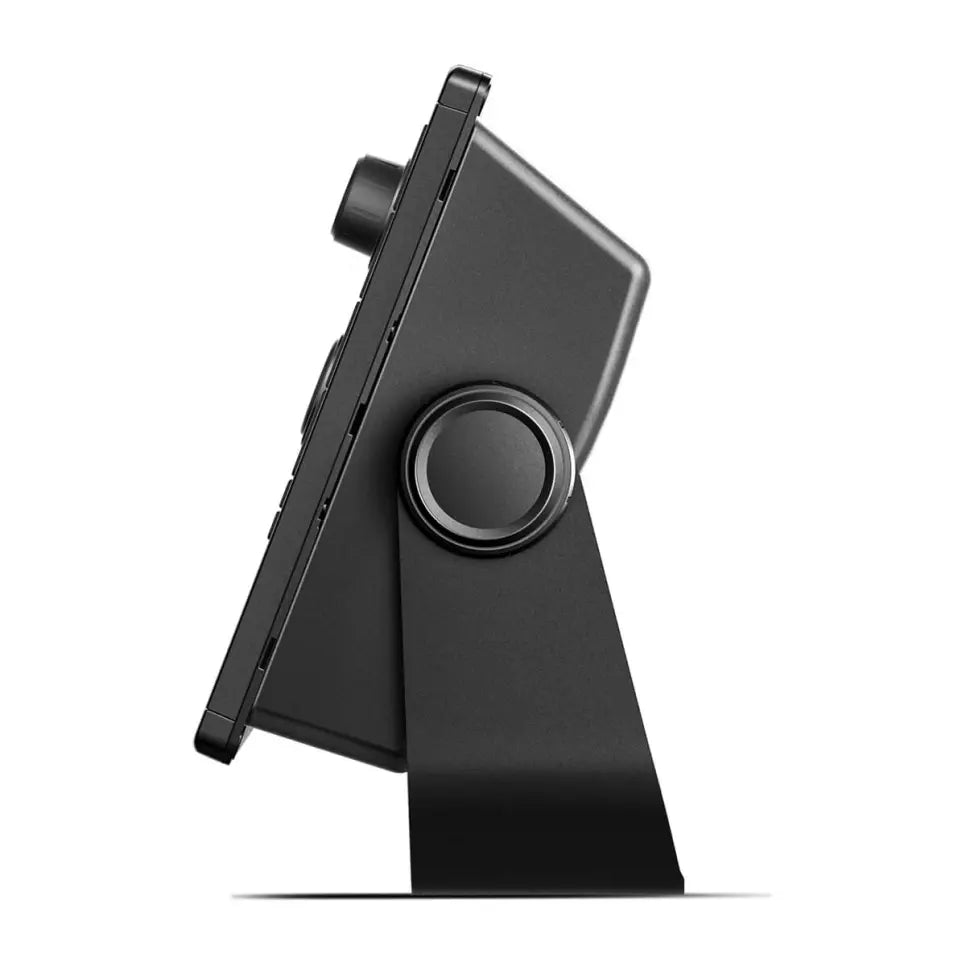

• Mounting Options: Bail, flush or flat
• Power Consumption: 25 W typical
• Voltage Range: 10-32 VDC
• Receiver: 10 Hz
• Garmin Marine Network Ports: 1

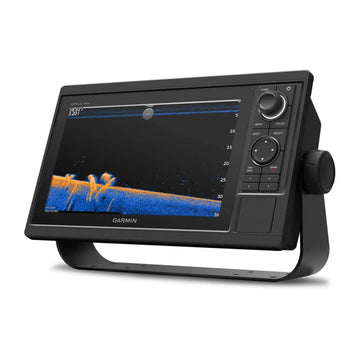

• Sonar Capabilities: Built-in CHIRP, ClearVu and SideVu
• Transducer Compatibility: 50 kHz, 77 kHz, 83 kHz, 200 kHz, ClearVu/SideVu CHIRP 260/455/800 kHz
• Maximum Depth: 5,000 ft (saltwater, depends on transducer)
• Waypoints: 5,000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks

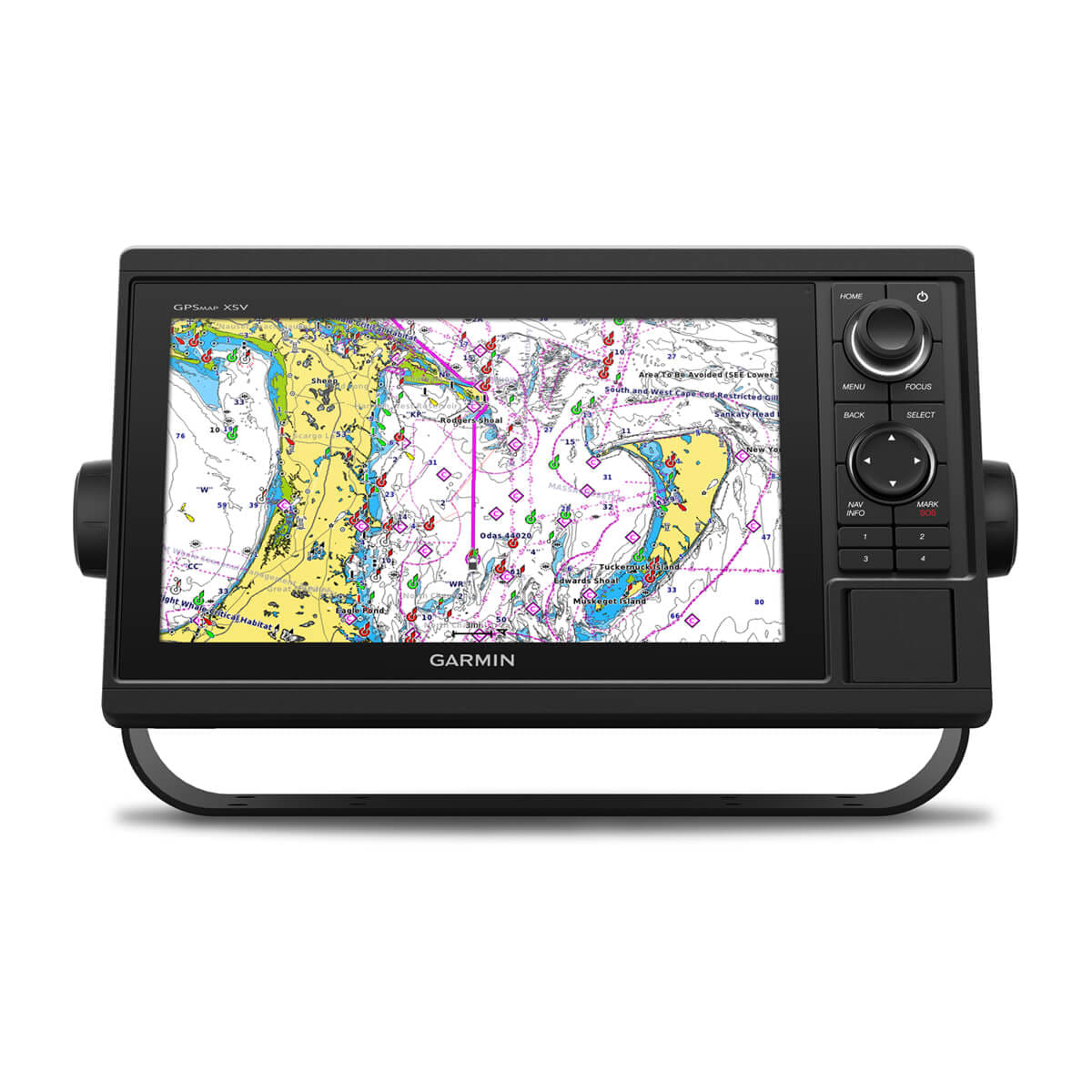

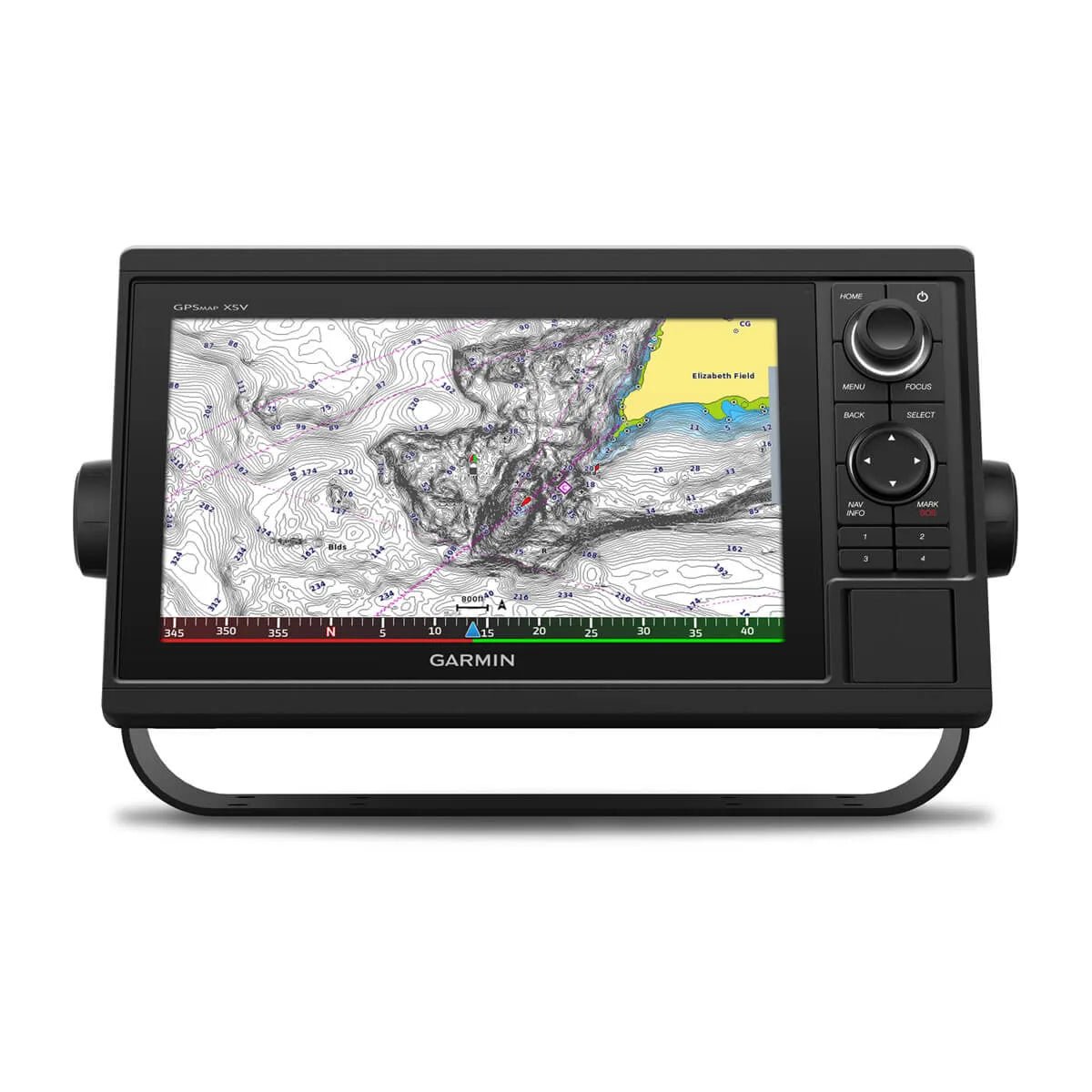

• Preloaded Charts: BlueChart g3 (coastal), LakeVu g3 (inland)
• Chartplotter Features: Supports AIS, DSC
• Wi-Fi Connectivity: Yes

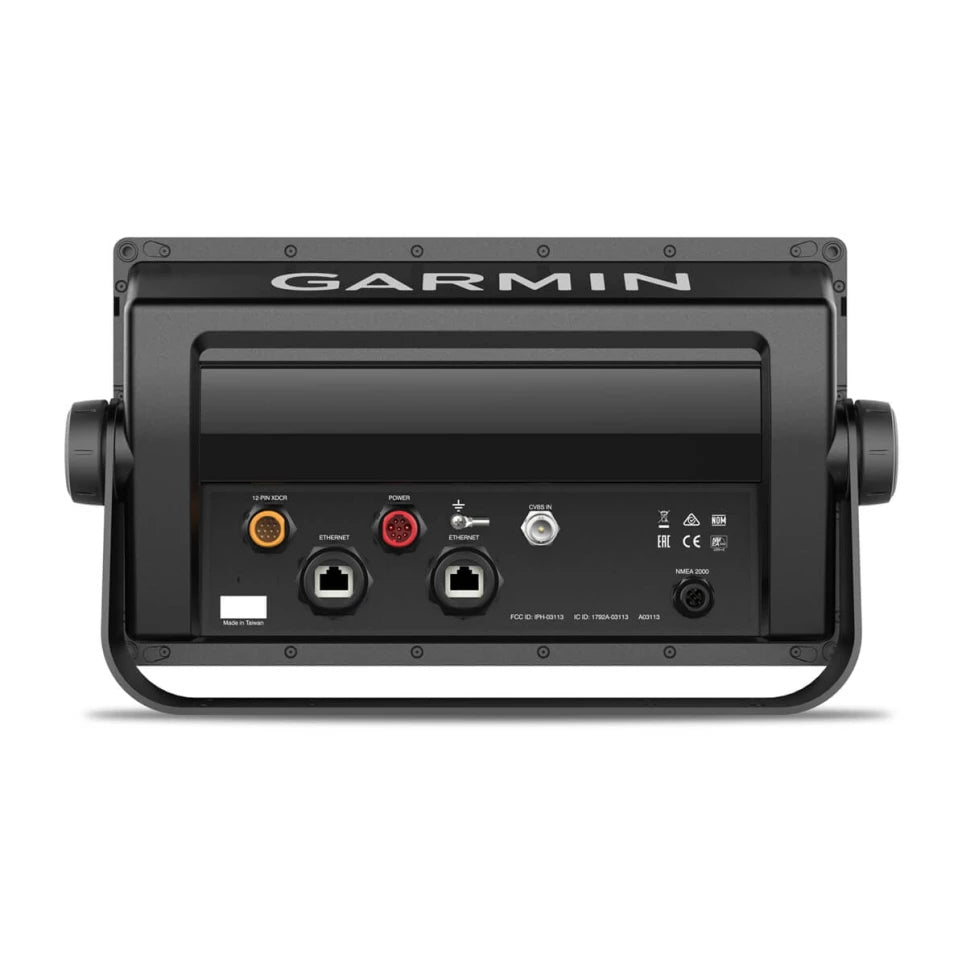

• NMEA 0183 Ports: 1 input/1 output
• NMEA 2000 Ports: 1
• Video Input Ports: 1 BNC
• Wireless Remote Compatible: Yes

GPSMAP 1042xsv with GT51M-TM Transducer

• Transducer Type: GT51M-TM
• CHIRP Frequency: Mid-band CHIRP (80-160 kHz)
• ClearVu/SideVu Frequency: CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
• Power: 600 W (CHIRP); 500 W (ClearVu/SideVu)
