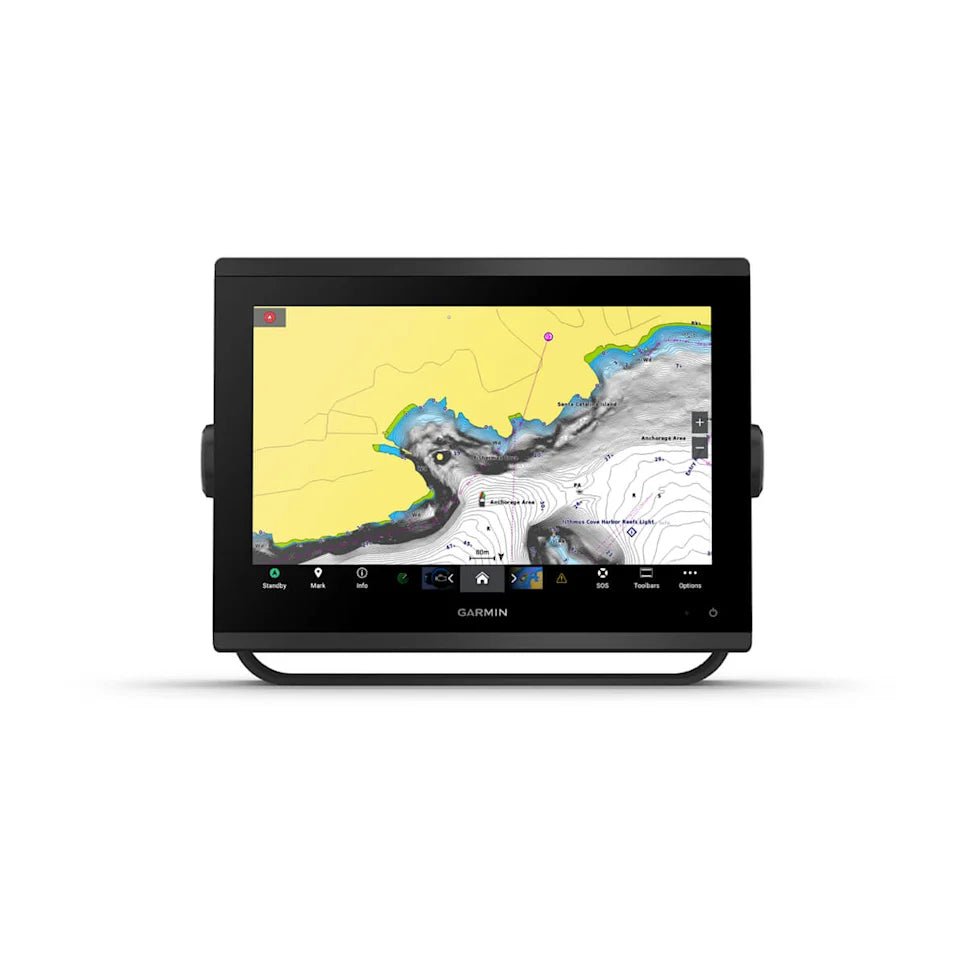

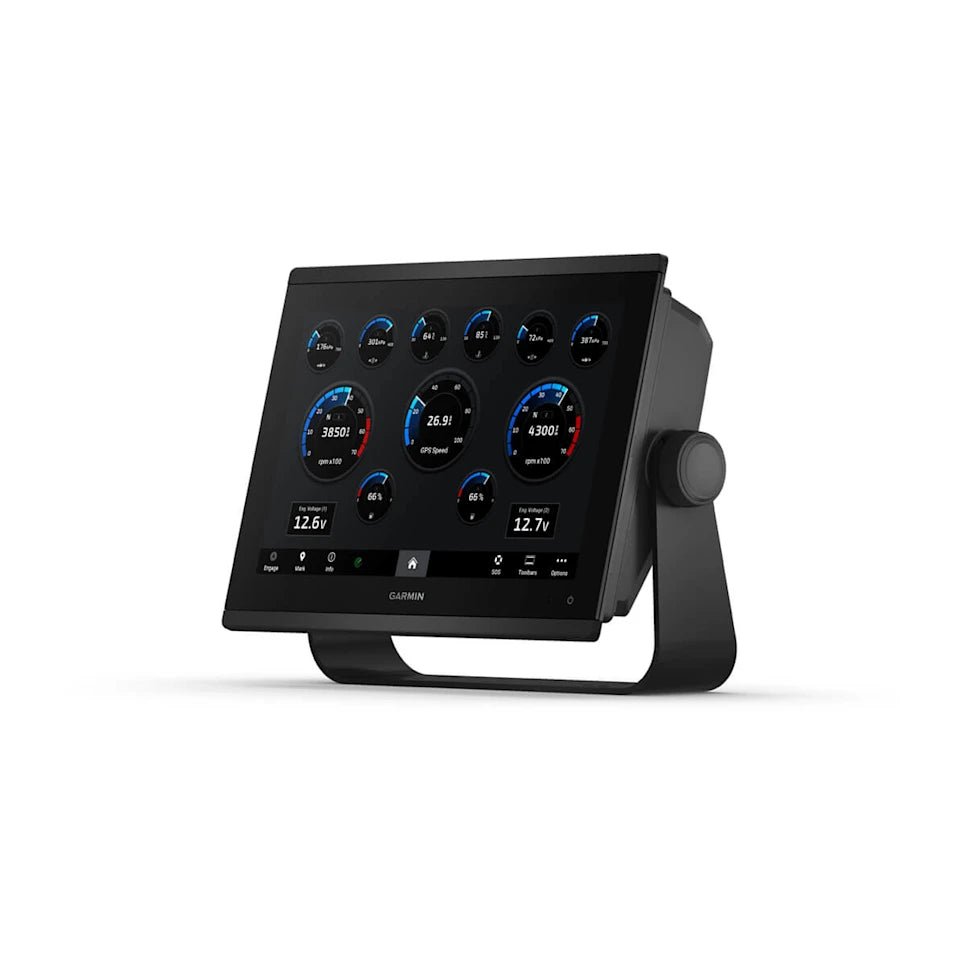

GPSMAP 1223xsv

Experience the pinnacle of marine navigation with the GPSMAP 1223xsv from Garmin. This chartplotter and sonar combo is designed for serious anglers, cruisers, and sailors who demand exceptional performance and reliability on the water. Featuring a brilliant 12 inch keyed display, the GPSMAP 1223xsv offers superior clarity and visibility, even in direct sunlight. Its high resolution screen ensures that charts, sonar readings, and radar data are displayed with stunning detail. The built in high sensitivity GPS receiver provides accurate positioning, while the integrated sonar capabilities deliver exceptional fish finding performance. The GPSMAP 1223xsv supports a wide range of sonar technologies, including traditional CHIRP, ClearVu, and SideVu scanning sonars, allowing you to see what's beneath your boat with incredible clarity. Network connectivity allows you to seamlessly integrate the GPSMAP 1223xsv with other Garmin marine devices, such as radar, autopilots, and instruments. The intuitive user interface makes it easy to access all of the features and functions of the GPSMAP 1223xsv, while the rugged design ensures that it can withstand the harsh marine environment. Whether you're navigating coastal waters, exploring offshore fishing grounds, or cruising to distant destinations, the GPSMAP 1223xsv provides the tools and technology you need to navigate with confidence.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

GPSMAP 1223xsv Garmin Technical Specifications

General

• Product Name: GPSMAP 1223xsv
• Manufacturer: Garmin
• Display Size: 12 inch
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Receiver: High sensitivity GPS
• Water Rating: IPX7
• Mounting Options: Bail, flush, flat

Physical

• Dimensions: 12.1 inch x 8.5 inch x 3.5 inch
• Weight: 5.0 lbs

Sonar Features

• Sonar Type: CHIRP, ClearVu, SideVu
• Transmit Power: 1 kW (traditional)
• Frequencies Supported: Traditional CHIRP: 50/77/83/200 kHz, ClearVu/SideVu: 260/455/800 kHz

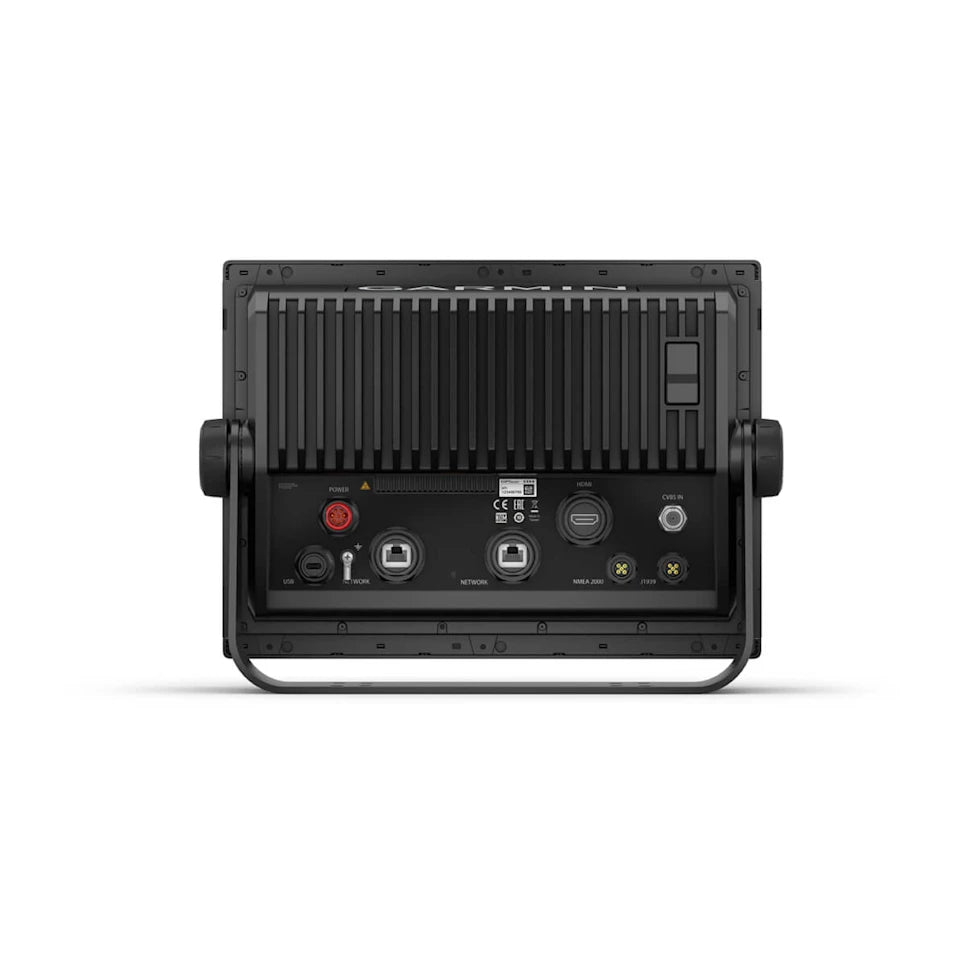

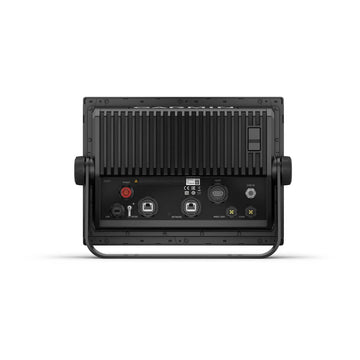

Networking

• Garmin Marine Network Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• NMEA 2000 Ports: 1
• Video Input Ports: 1 BNC

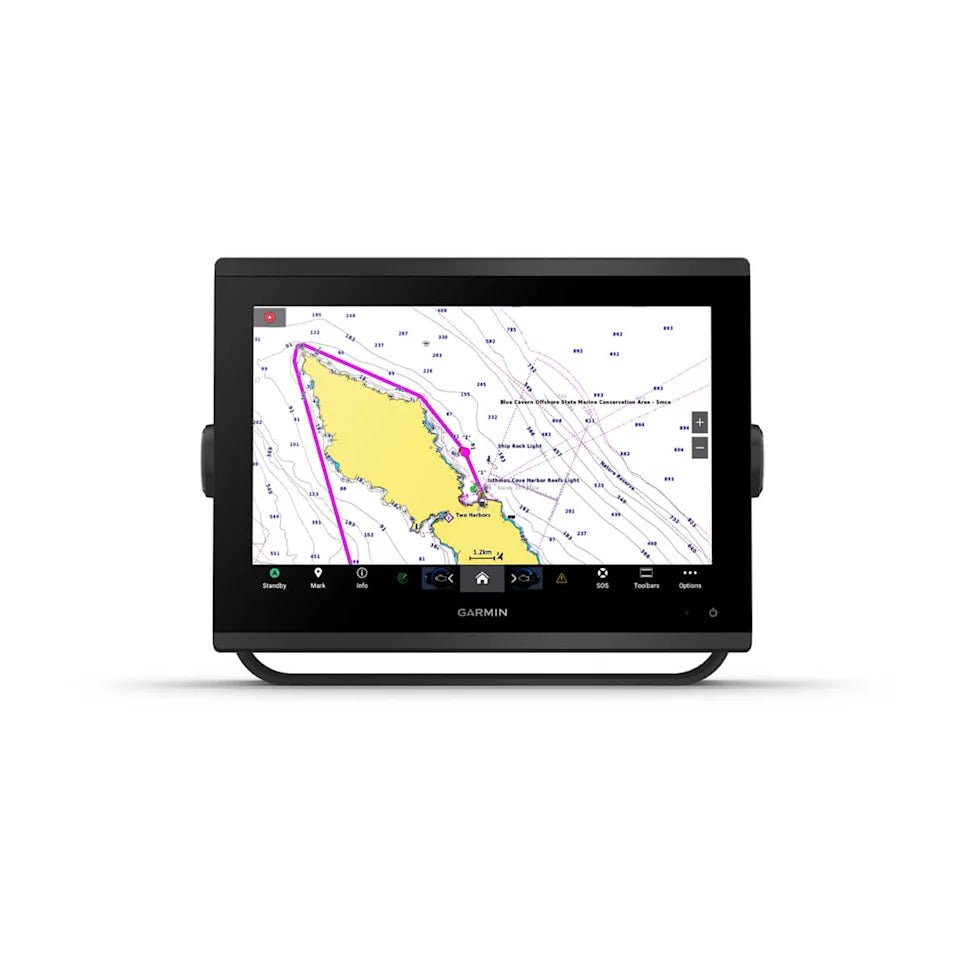

Charts & Mapping

• Preloaded Charts: Worldwide basemap
• Accepts Data Cards: 2 SD card slots
