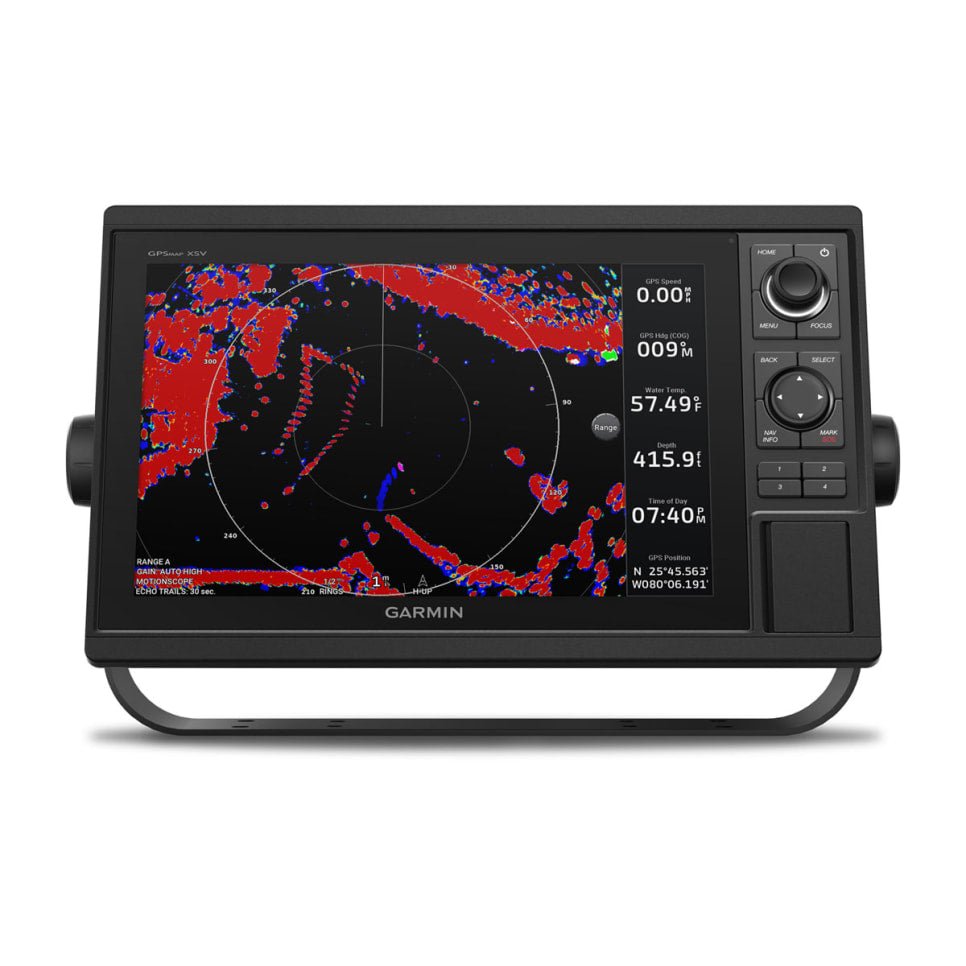

GPSMAP 1242xsv

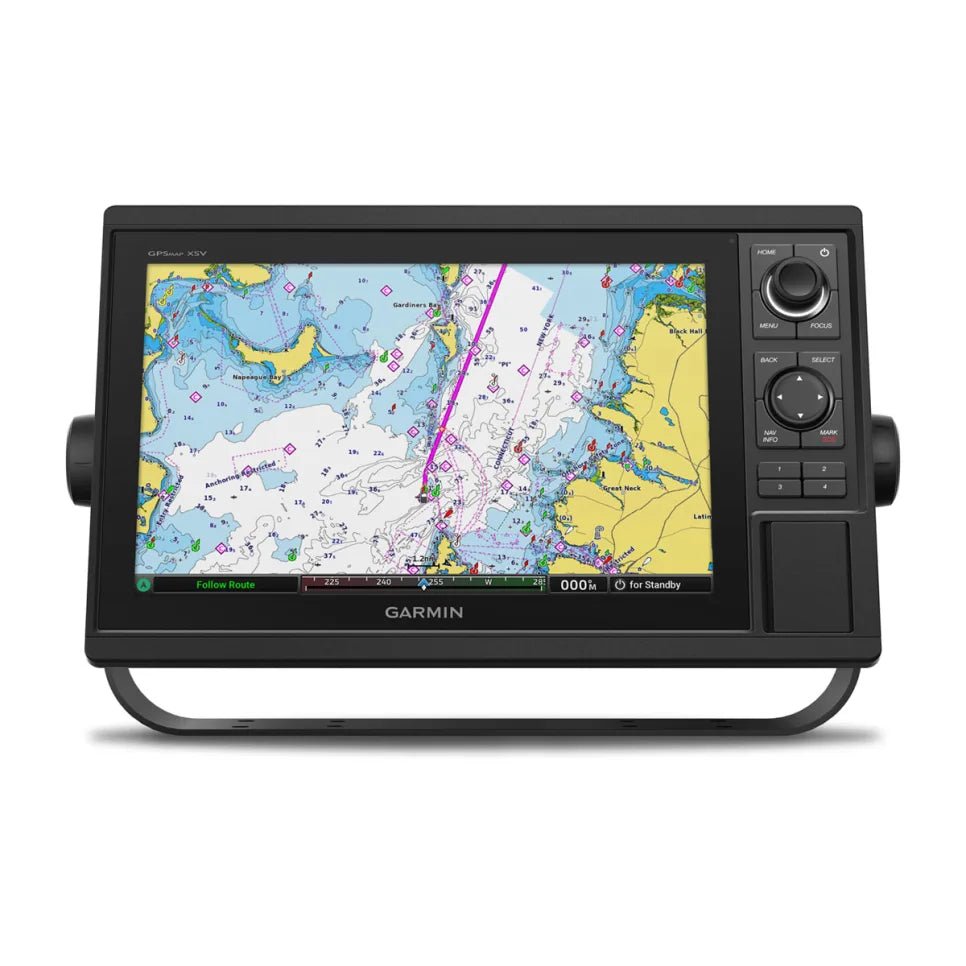

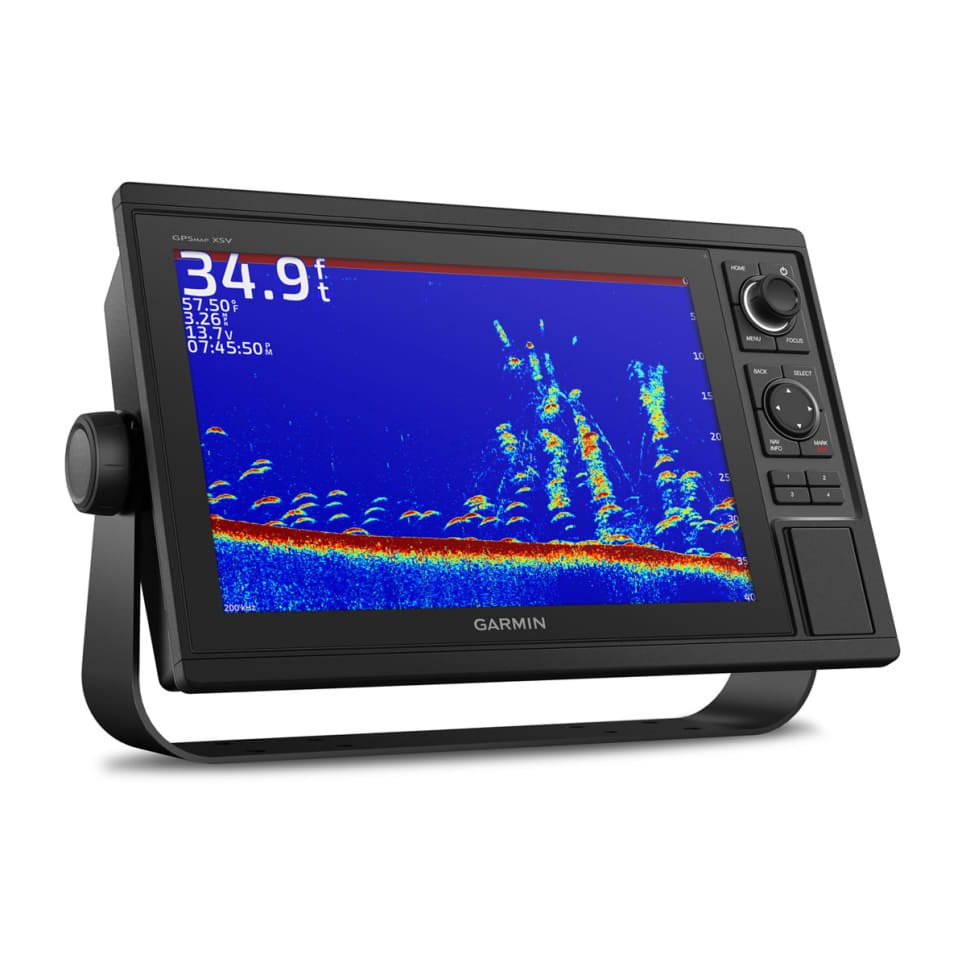

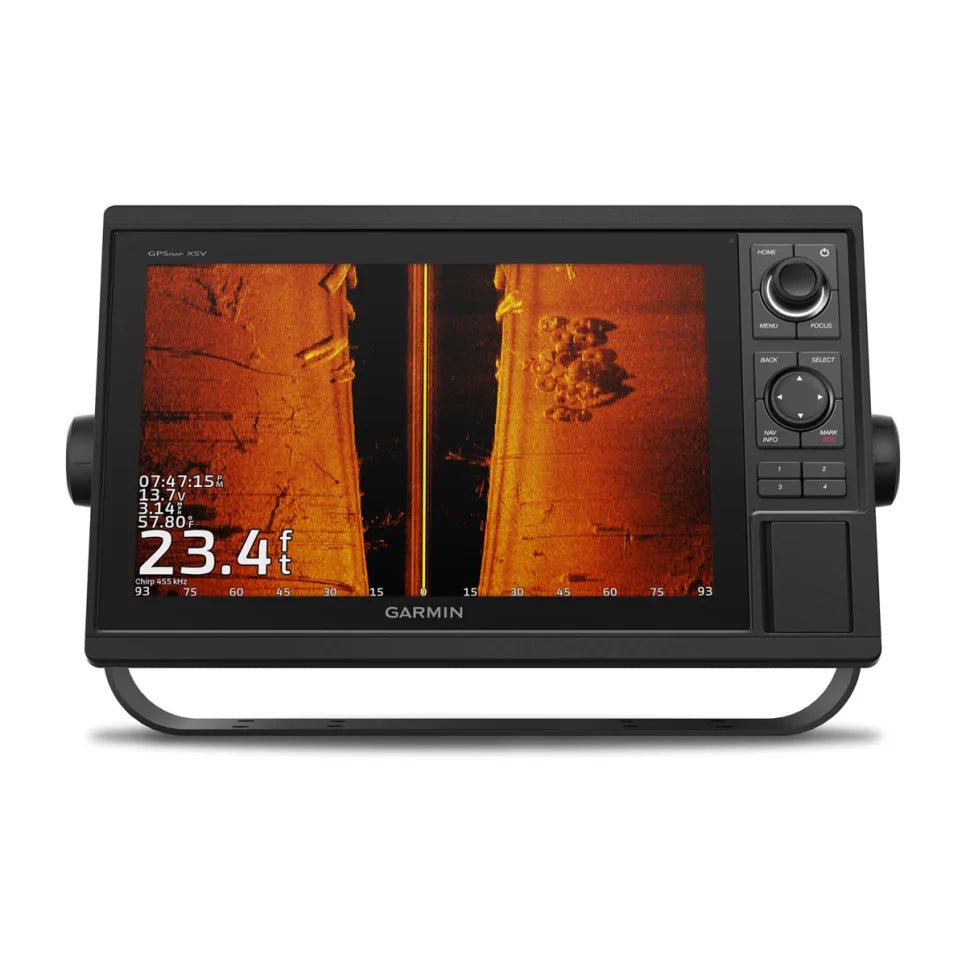

Experience unparalleled navigation and sonar capabilities with the Garmin GPSMAP 1242xsv. This powerful chartplotter/sonar combo boasts a large, bright 12-inch keyed display, providing exceptional clarity and readability even in direct sunlight. The GPSMAP 1242xsv is preloaded with BlueChart g3 coastal charts and LakeVu g3 inland maps, offering comprehensive coverage of U.S. waters. Benefit from integrated Garmin CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonars, delivering crystal-clear images of what's beneath and to the sides of your boat. Network connectivity is seamless with built-in Wi-Fi, ANT technology, and NMEA 2000 support, allowing you to easily integrate with other Garmin devices and sensors. SailAssist features provide valuable sailing data, laylines, race start guidance, and more. The GPSMAP 1242xsv is your ultimate navigation and fishfinding solution, designed to enhance your time on the water.

* Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

• Physical Dimensions: 12.1"" x 8.5"" x 3.0"" (30.8 x 21.6 x 7.6 cm)
• Display Size: 10.3"" x 6.4""; 12.1"" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Weight: 5.0 lbs (2.3 kg)
• Water Rating: IPX7

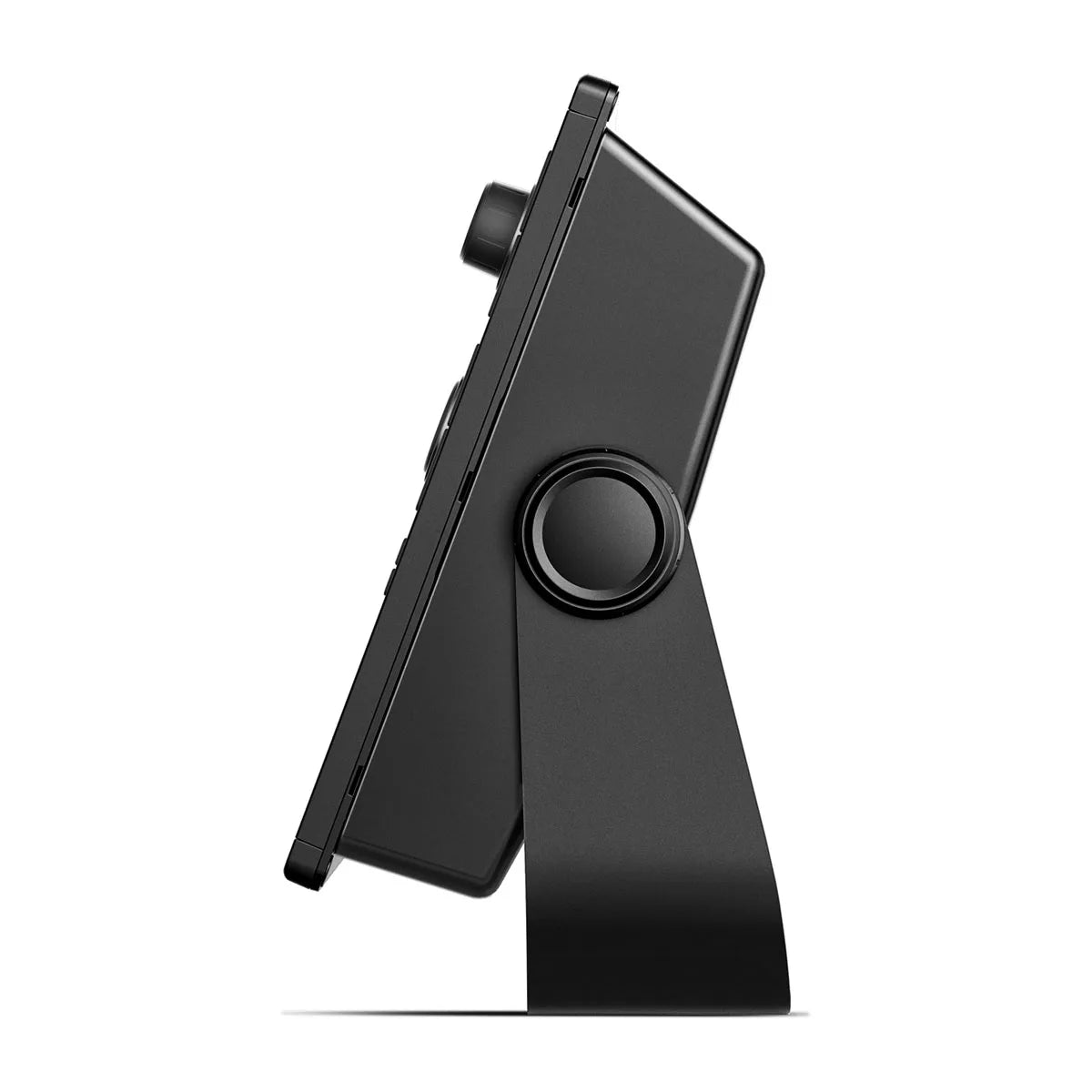

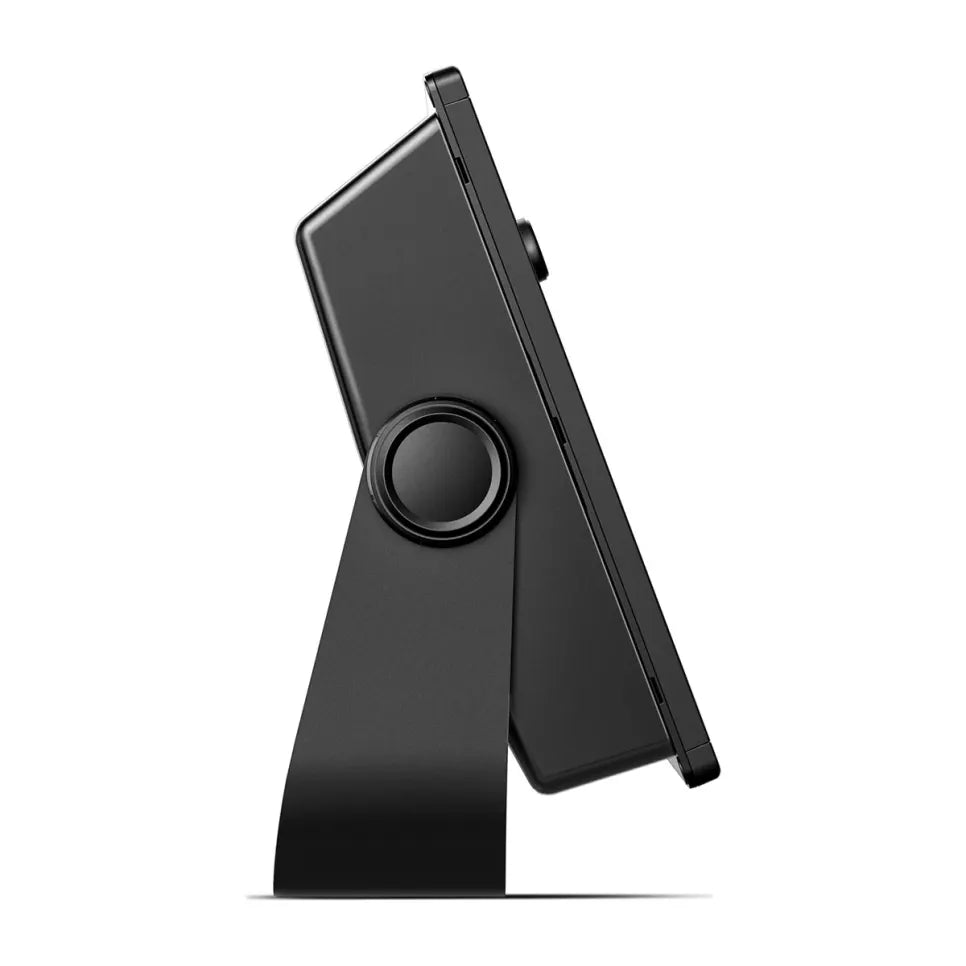

• Mounting Options: Bail, Flush, Flat
• Power Consumption: Maximum power usage at 10 Vdc: 33 W; Typical current draw at 12 Vdc: 1.7 A; Maximum current draw at 12 Vdc: 2.7 A
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz

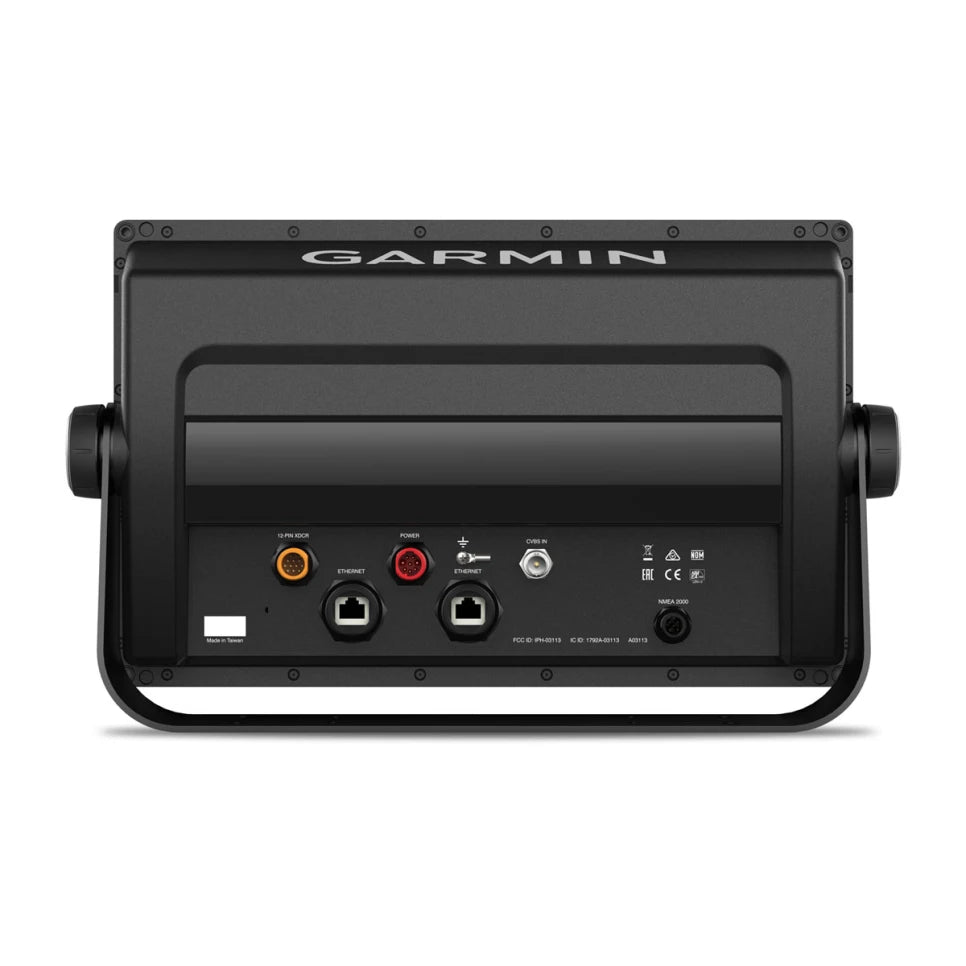

• Garmin Marine Network Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• NMEA 2000 Compatible: Yes
• Video Input Ports: 1 BNC
• Wireless Connectivity: Yes

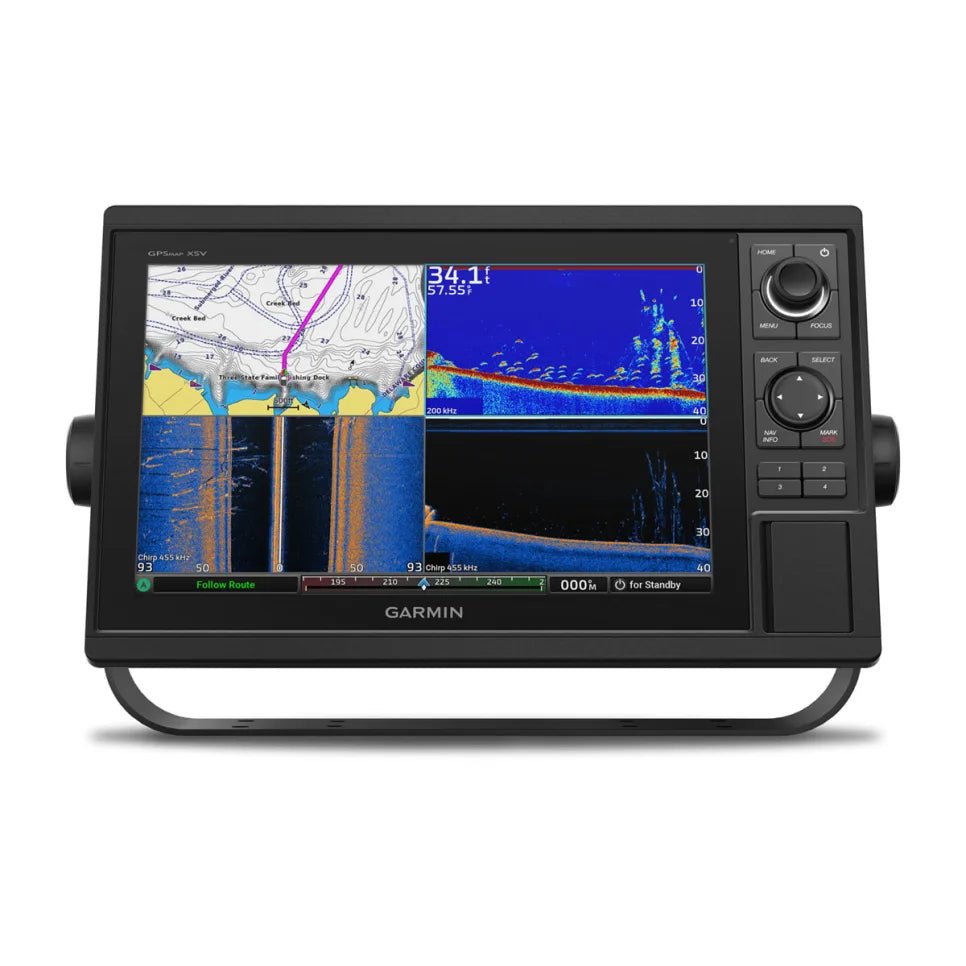

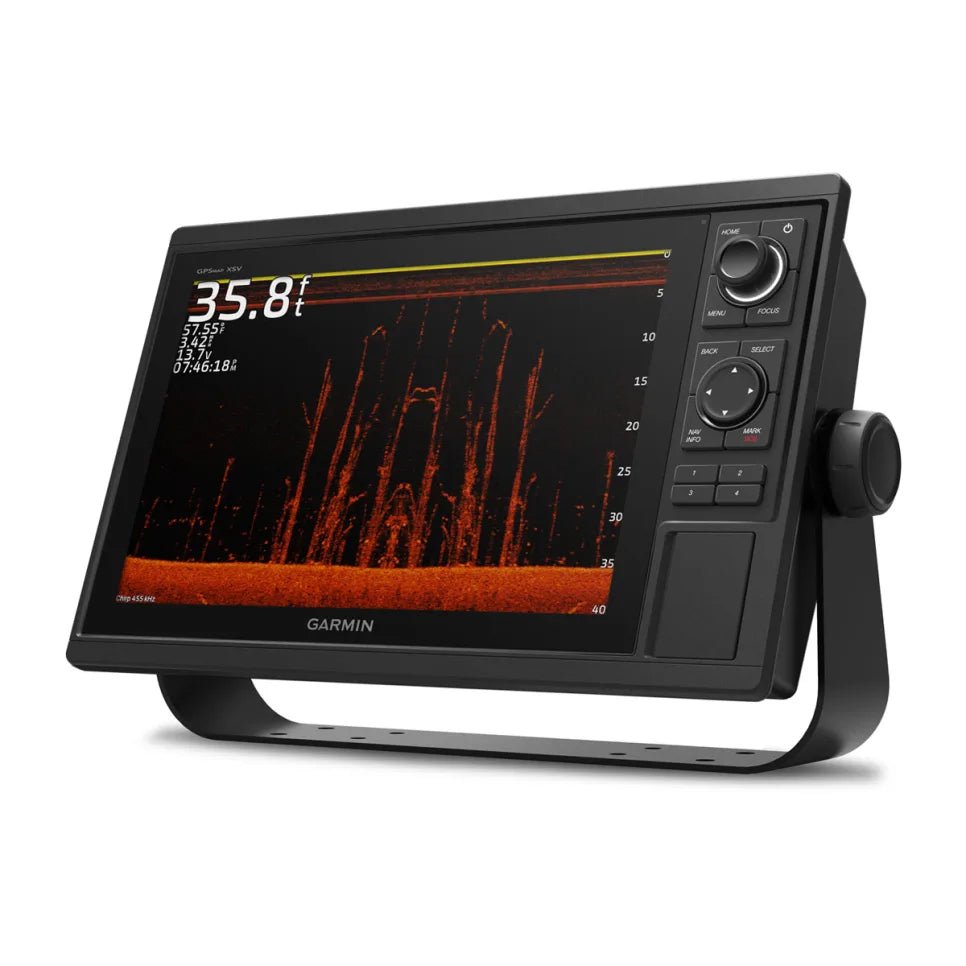

Sonar Features & Specifications

• CHIRP Sonar: Yes
• ClearVu: Yes
• SideVu: Yes
• Maximum Depth: 5,000 ft @ 77 kHz, freshwater; 2,000 ft @ 77 kHz, saltwater (depth capacity depends on water bottom type and other water conditions)
• Frequency: Traditional: 50/77/83/200 kHz; CHIRP (Low, Mid, High); ClearVu/SideVu: 260/455/800 kHz
• Transmit Power: 1 kW traditional; 500 W ClearVu/SideVu

Mapping Support

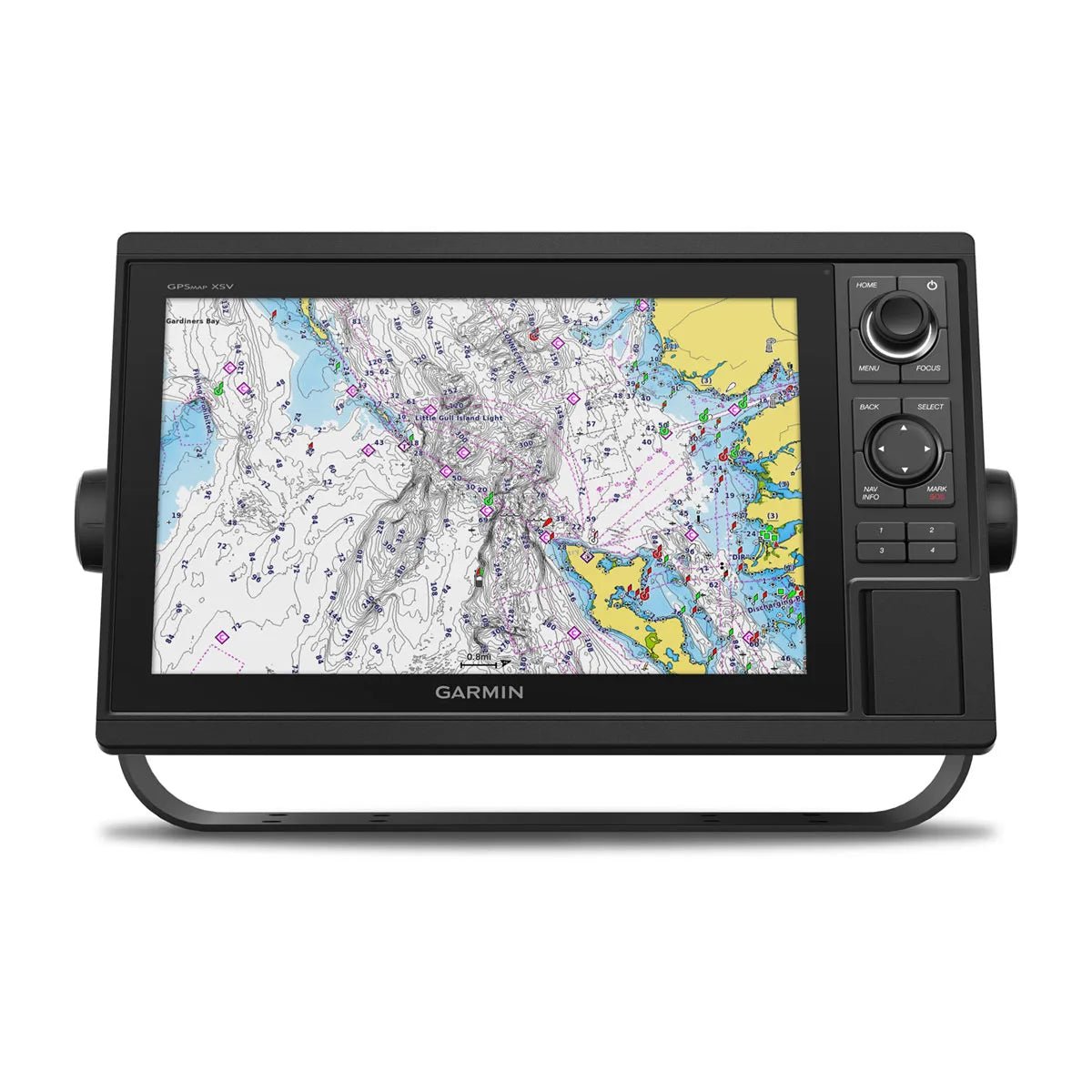

• Preloaded Maps: BlueChart g3 (coastal charts) and LakeVu g3 (inland maps)
• Accepts Data Cards: 2 SD card slots
• Waypoints: 5,000
• Routes: 100
• Track Log: 50,000 points; 50 saved tracks

Additional Features

• Garmin Radar Compatible: Yes
• Garmin Autopilot Compatible: Yes
• AIS Compatible: Yes
• DSC Compatible: Yes
• Supports FUSION-Link Compatible Radios: Yes
• GSD Black Box Sonar Support: Yes
• GCV Black Box Sonar Support: Yes
• ActiveCaptain Compatible: Yes
• Sailing Features: Yes
