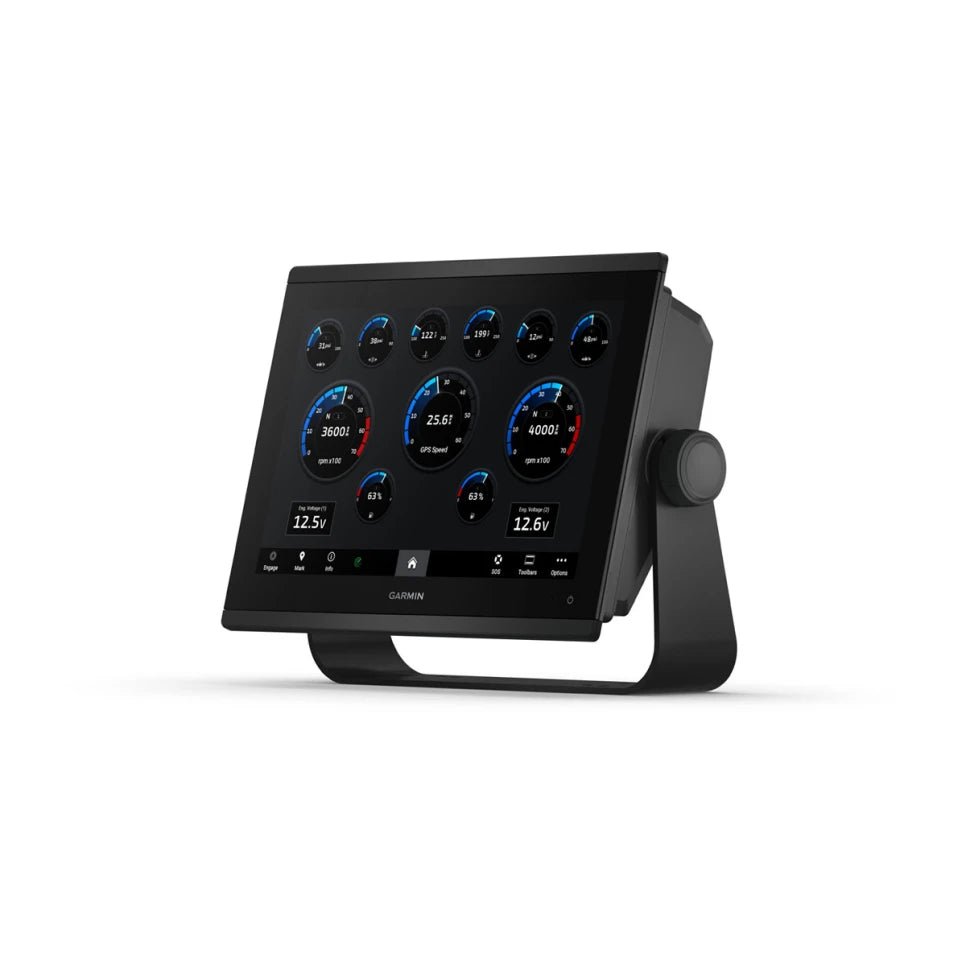

GPSMAP 1243

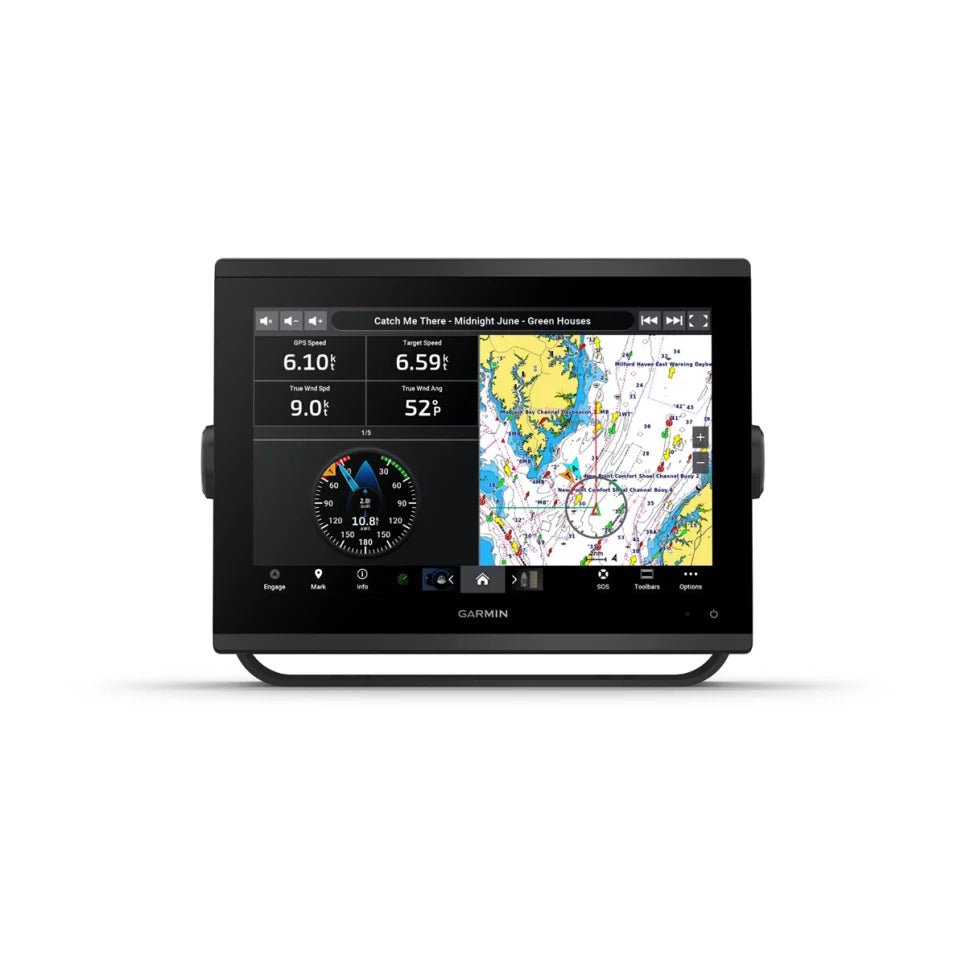

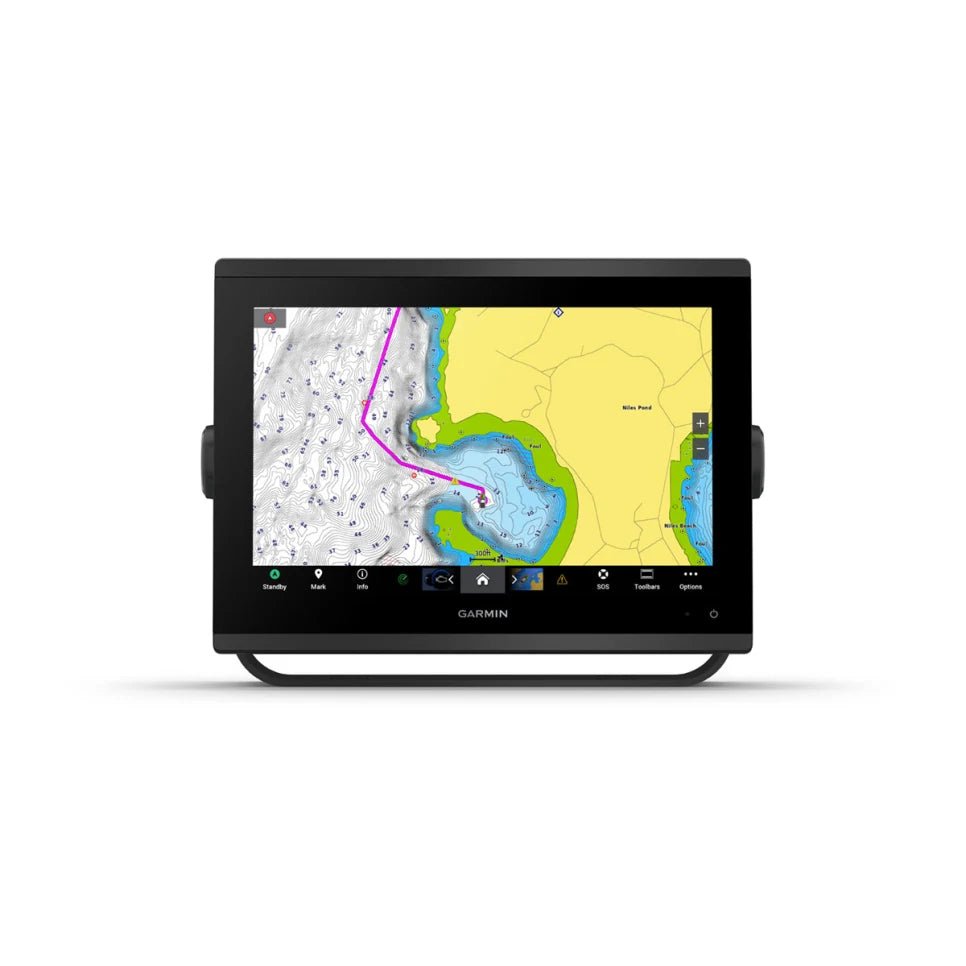

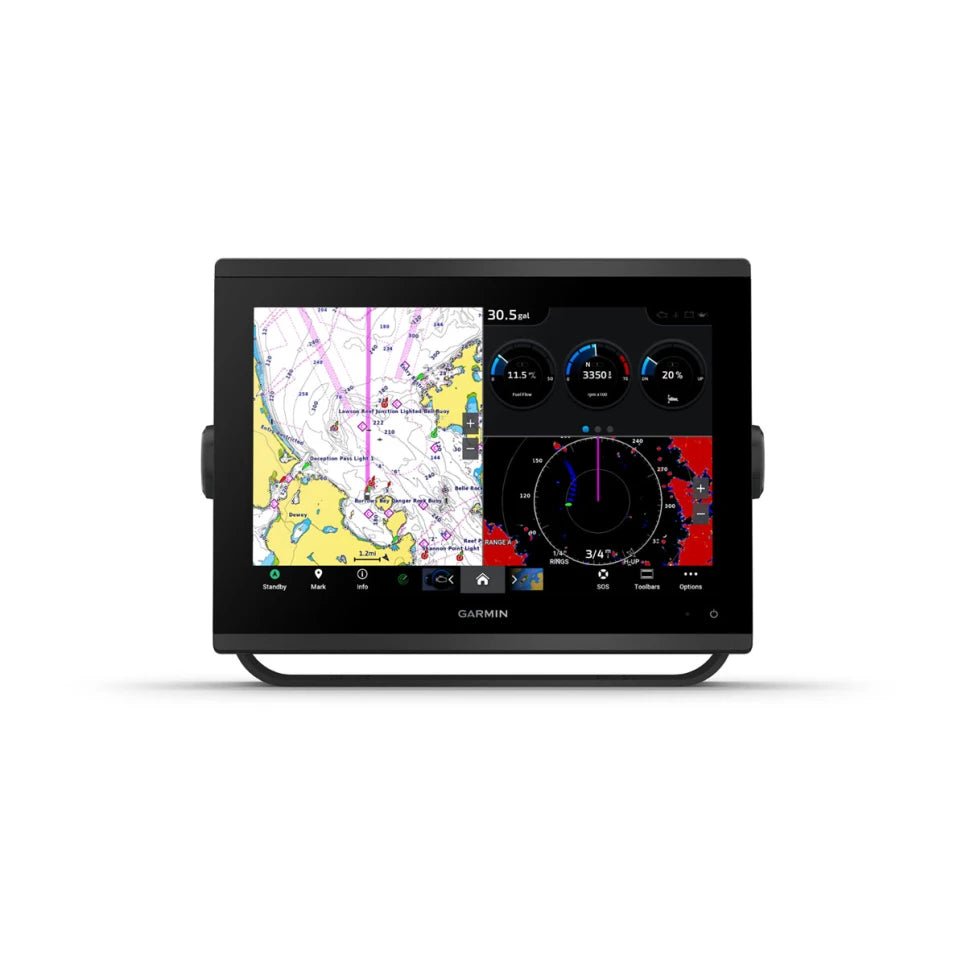

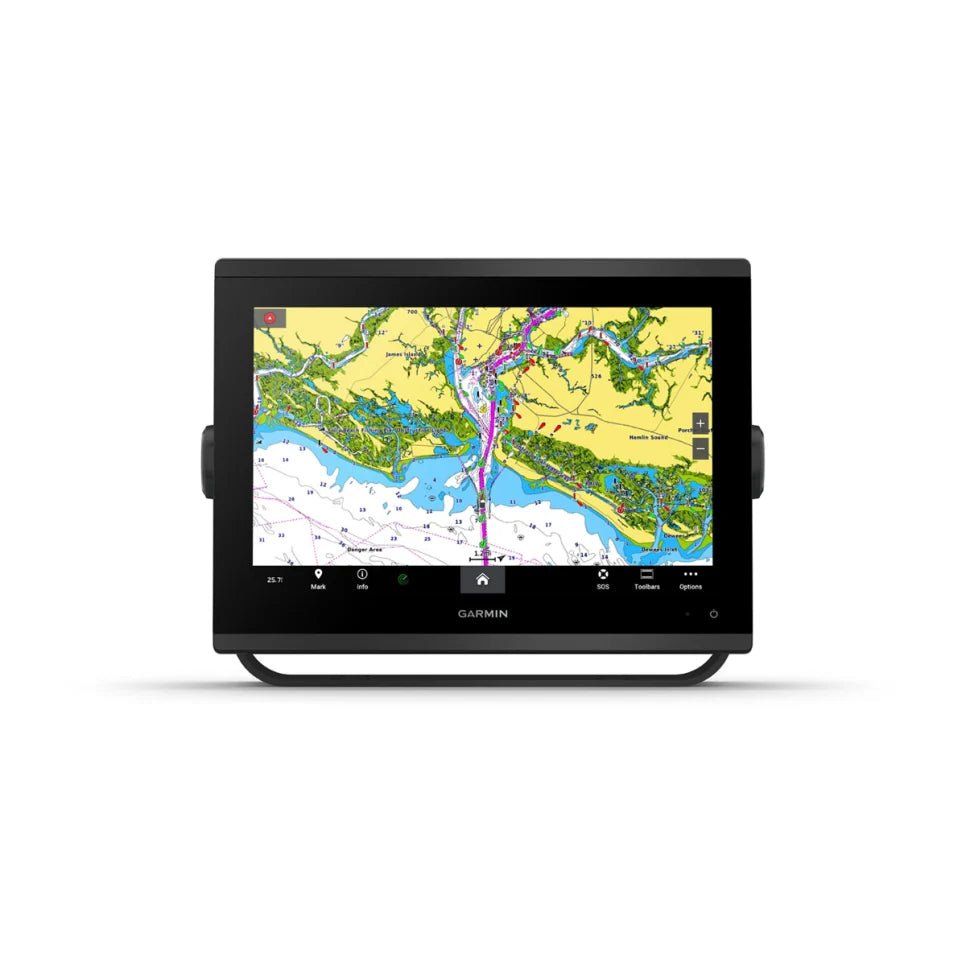

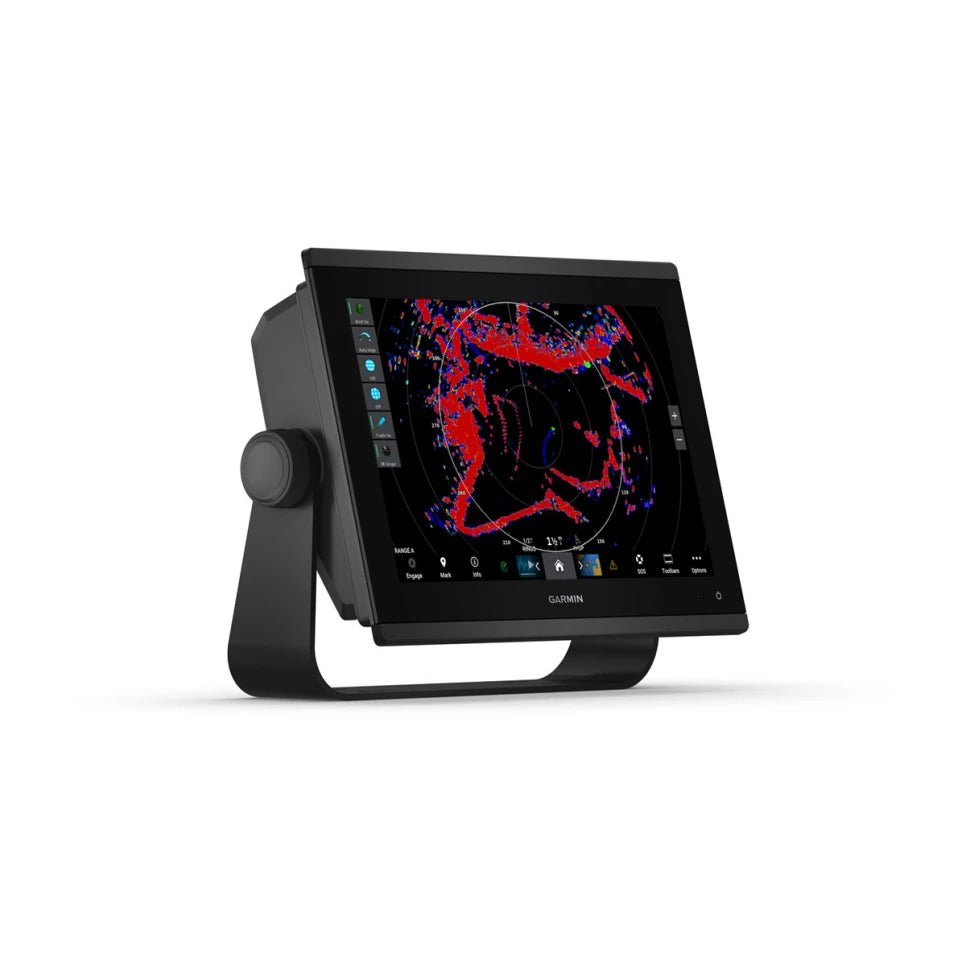

Experience unparalleled navigation and situational awareness with the Garmin GPSMAP 1243, a powerful chartplotter designed for serious boaters and anglers. This unit boasts a bright, sunlight-readable 12-inch touchscreen display, providing crystal-clear views of charts, sonar, and radar data. The GPSMAP 1243 offers built-in Garmin Navionics+ coastal charts and inland maps, covering the United States, including Alaska, Hawaii, and the Great Lakes. These charts feature high-resolution relief shading, depth range shading, and Auto Guidance+ technology for simplified route planning.

The integrated high-sensitivity GPS receiver ensures accurate positioning, while the built-in Wi-Fi connectivity allows for seamless integration with other Garmin devices and mobile apps. Stay connected with ActiveCaptain app compatibility, enabling access to smart notifications, software updates, and community data. The GPSMAP 1243 supports a wide range of sonar technologies, including traditional CHIRP sonar, ClearVu scanning sonar, and SideVu scanning sonar, providing detailed underwater views. Network connectivity includes NMEA 2000 and Garmin Marine Network support, allowing for easy integration with other onboard systems such as autopilots, digital switching, and weather receivers. With its intuitive interface and comprehensive feature set, the Garmin GPSMAP 1243 is the ultimate navigation solution for any vessel.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

GPSMAP 1243

• Physical Dimensions: 12.1" x 8.5" x 3.0" (30.8 cm x 21.6 cm x 7.6 cm)
• Display Size: 10.1" x 6.3"; 12.1" diagonal (25.7 cm x 16.0 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Weight: 4.0 lbs (1.8 kg)
• Water Rating: IPX7
• Mounting Options: Bail, Flush, Flat
• Power Consumption: Max power usage at 10 Vdc: 36 W; Typical current draw at 12 Vdc: 1.5 A
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz

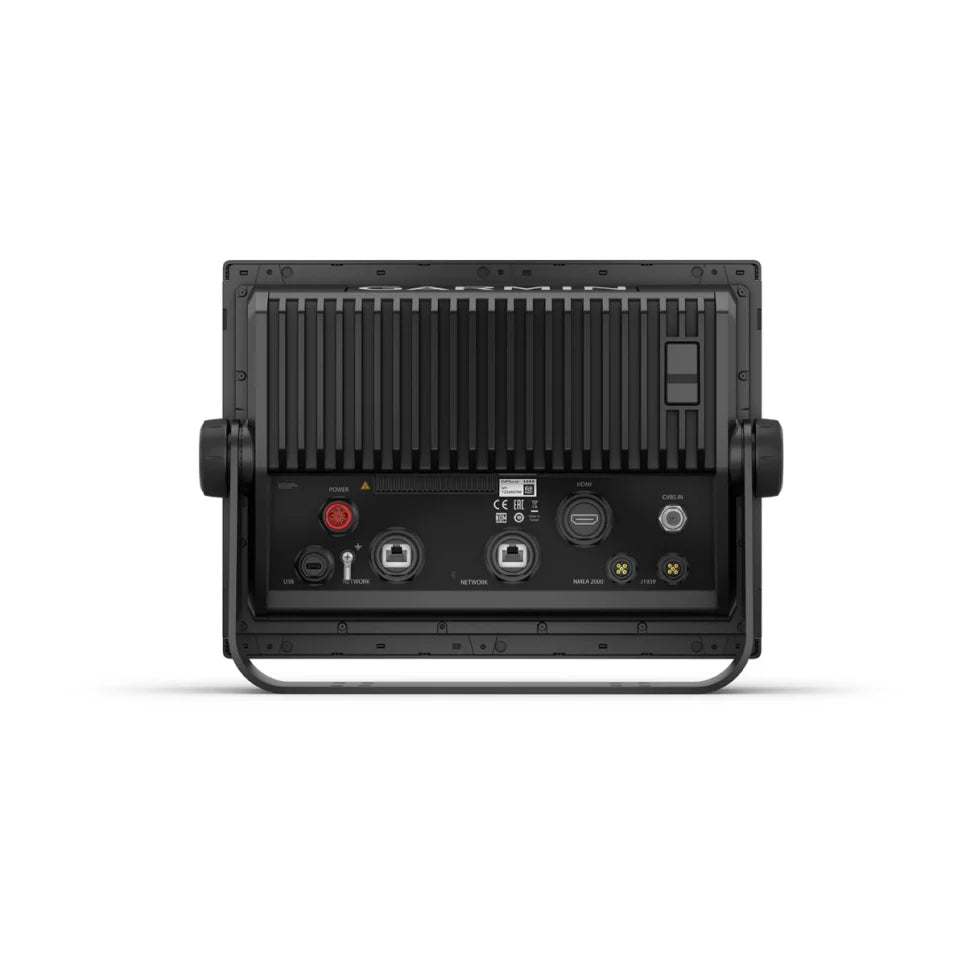

• Garmin Marine Network Ports: 1
• NMEA 2000 Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Wi-Fi
• Sonar Capabilities: Supports CHIRP, ClearVu, SideVu
• Cartography Support: Garmin Navionics+, Garmin Navionics Vision+
• Accepts Data Cards: 2 SD cards

GPSMAP 1243xsv

• Physical Dimensions: 12.1" x 8.5" x 3.0" (30.8 cm x 21.6 cm x 7.6 cm)
• Display Size: 10.1" x 6.3"; 12.1" diagonal (25.7 cm x 16.0 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA display
• Weight: 4.0 lbs (1.8 kg)
• Water Rating: IPX7
• Mounting Options: Bail, Flush, Flat
• Power Consumption: Max power usage at 10 Vdc: 36 W; Typical current draw at 12 Vdc: 1.5 A
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz
• Garmin Marine Network Ports: 1
• NMEA 2000 Ports: 1
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Wi-Fi
• Sonar Capabilities: Supports CHIRP, ClearVu, SideVu, Ultra High-Definition Scanning Sonar
• Cartography Support: Garmin Navionics+, Garmin Navionics Vision+
• Accepts Data Cards: 2 SD cards

Additional Features (Both Models)

• AIS Support: Yes
• DSC Support: Yes
• Fusion-Link Compatible: Yes
• GSD Black Box Sonar Support: Yes
• GCV Black Box Sonar Support: Yes
• ActiveCaptain Compatible: Yes
