GPSMAP 1243xsv

Experience unparalleled navigation and sonar capabilities with the Garmin GPSMAP 1243xsv. This powerful chartplotter and sonar combo is designed for serious anglers, cruisers, and sailors who demand the best. Featuring a brilliant 12-inch IPS touchscreen display, the GPSMAP 1243xsv offers exceptional clarity and wide viewing angles, even in direct sunlight. Its high-performance processor ensures smooth chart redraws and lightning-fast response times, keeping you informed and in control.

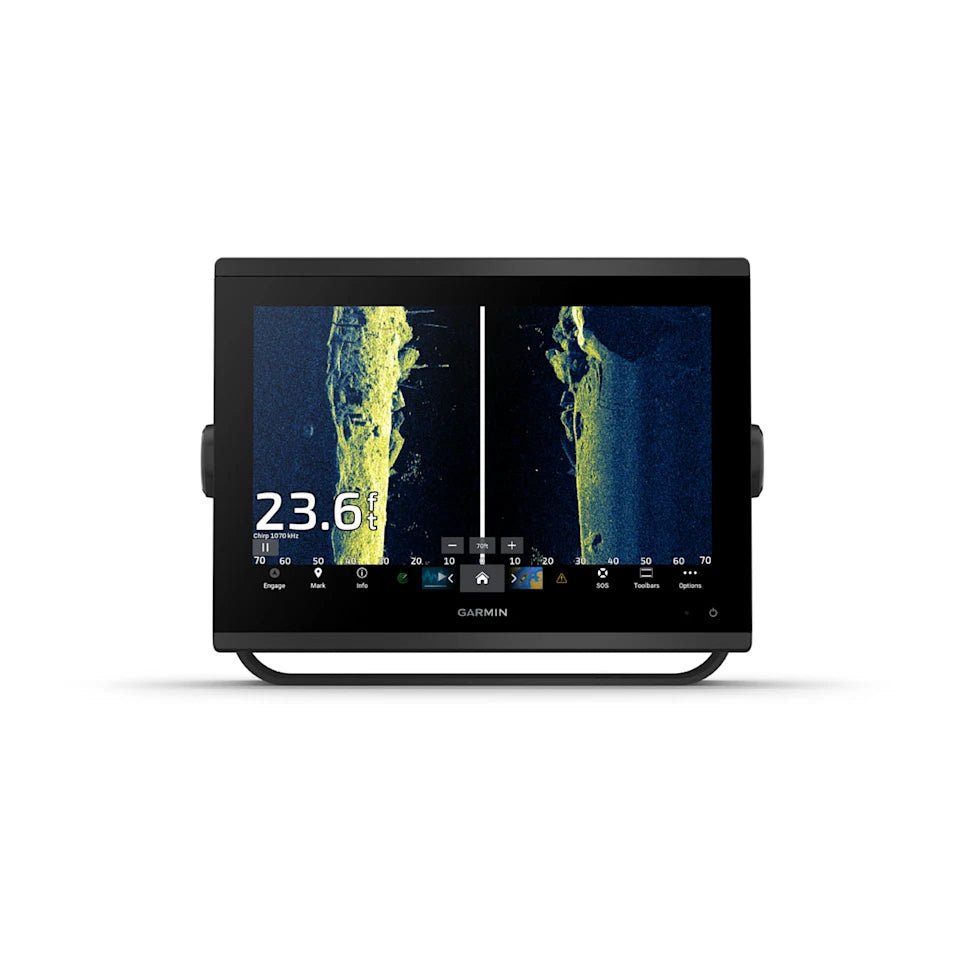

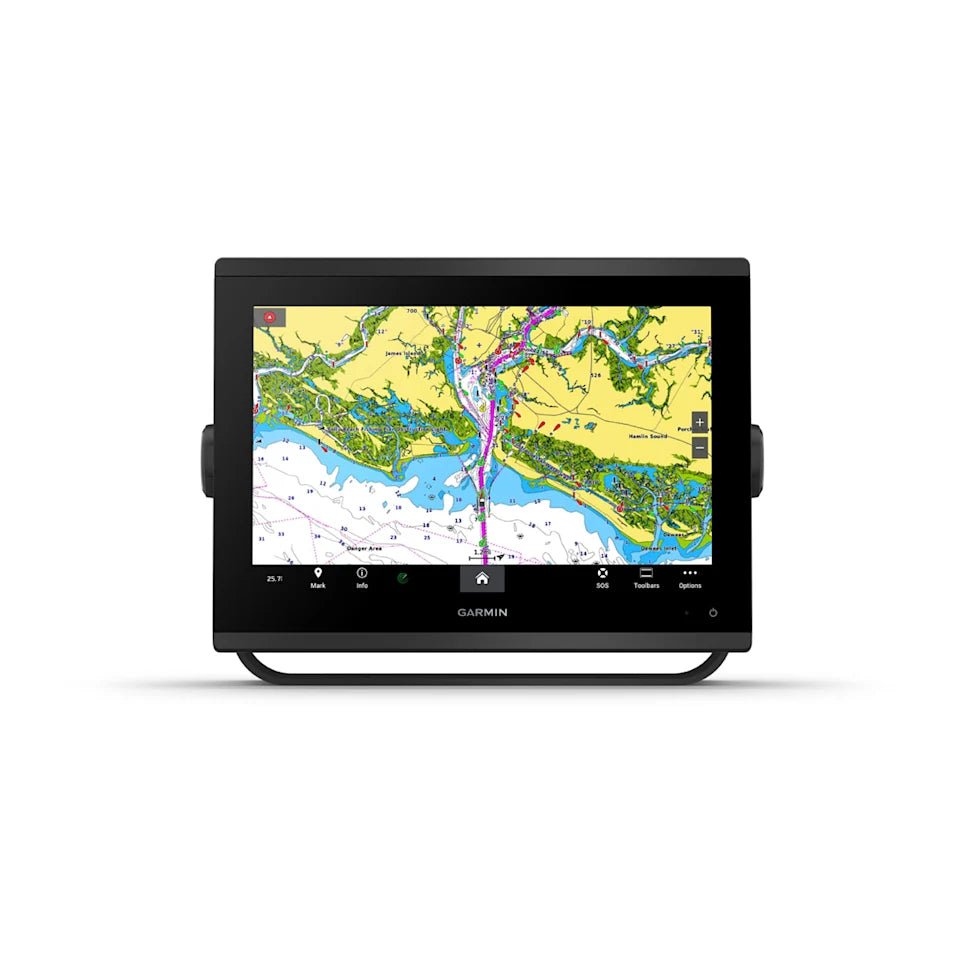

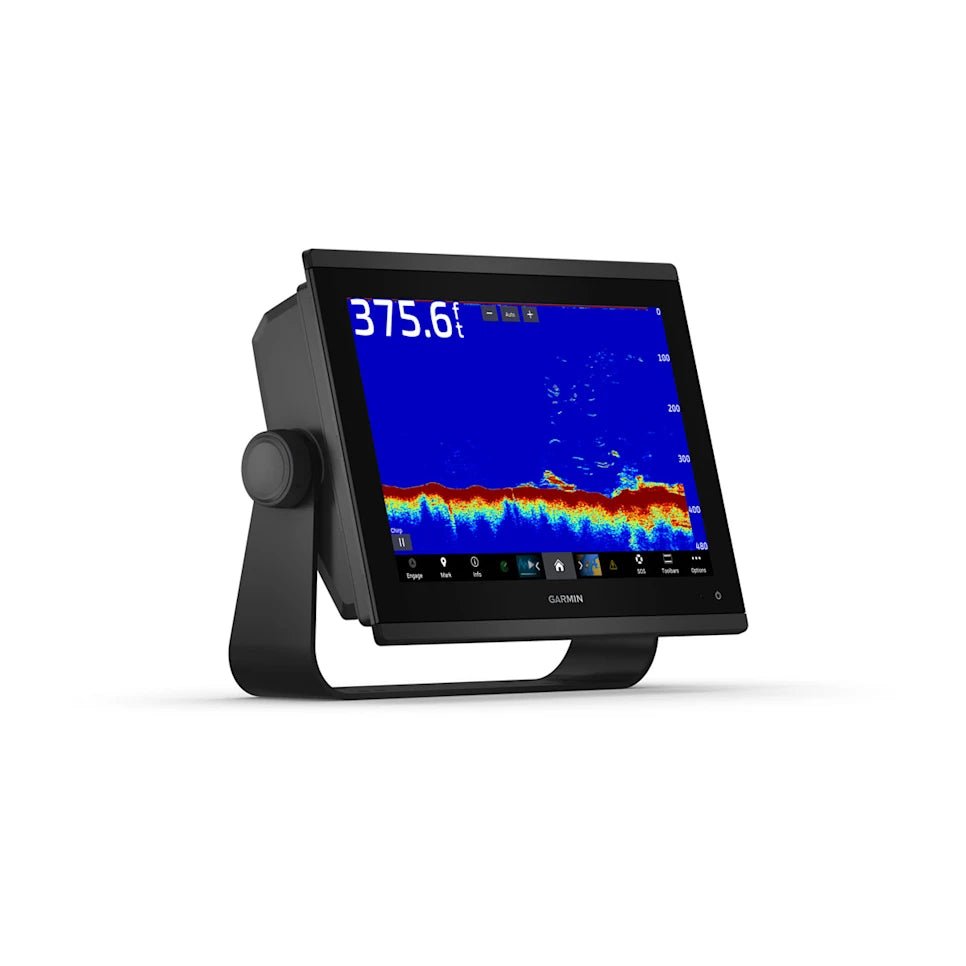

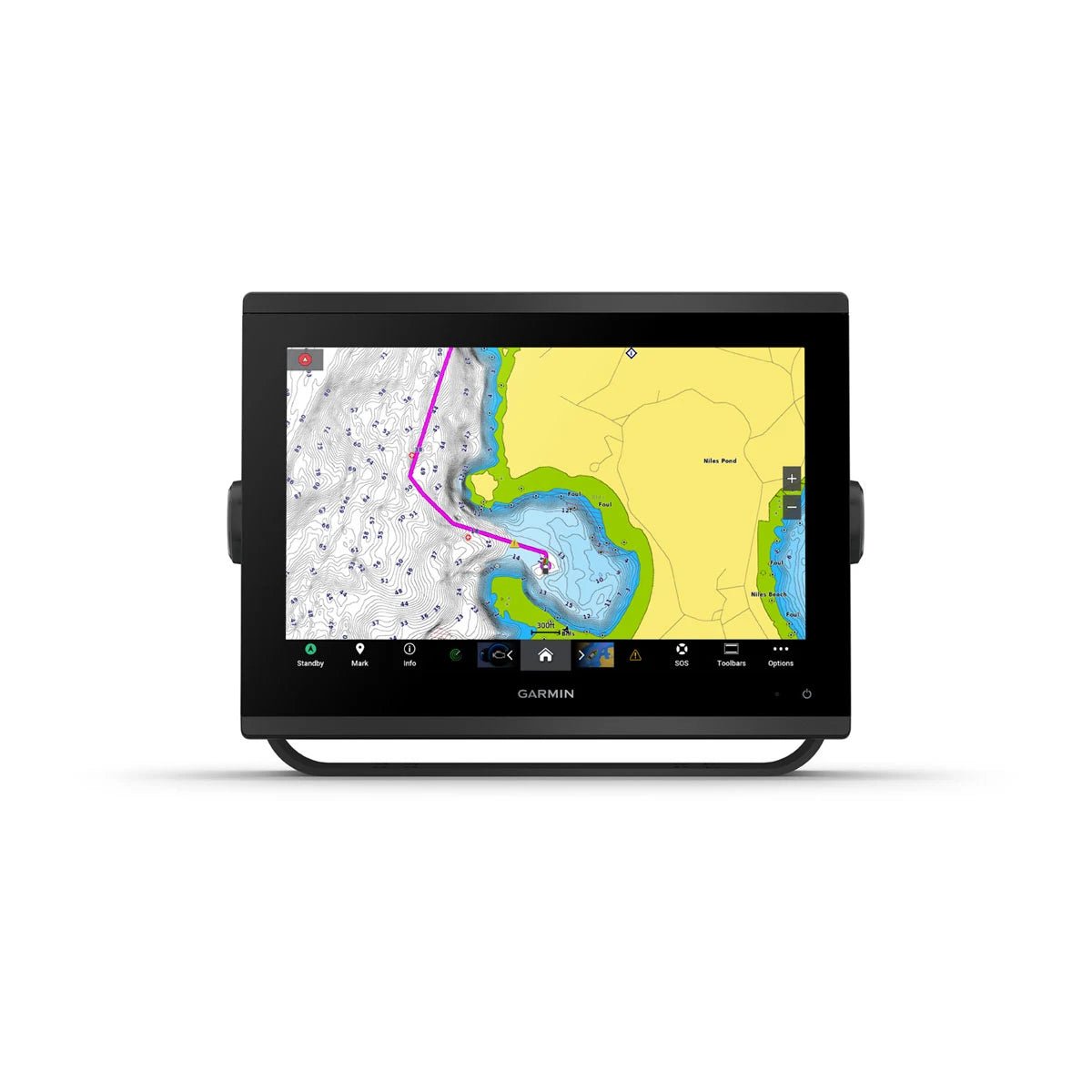

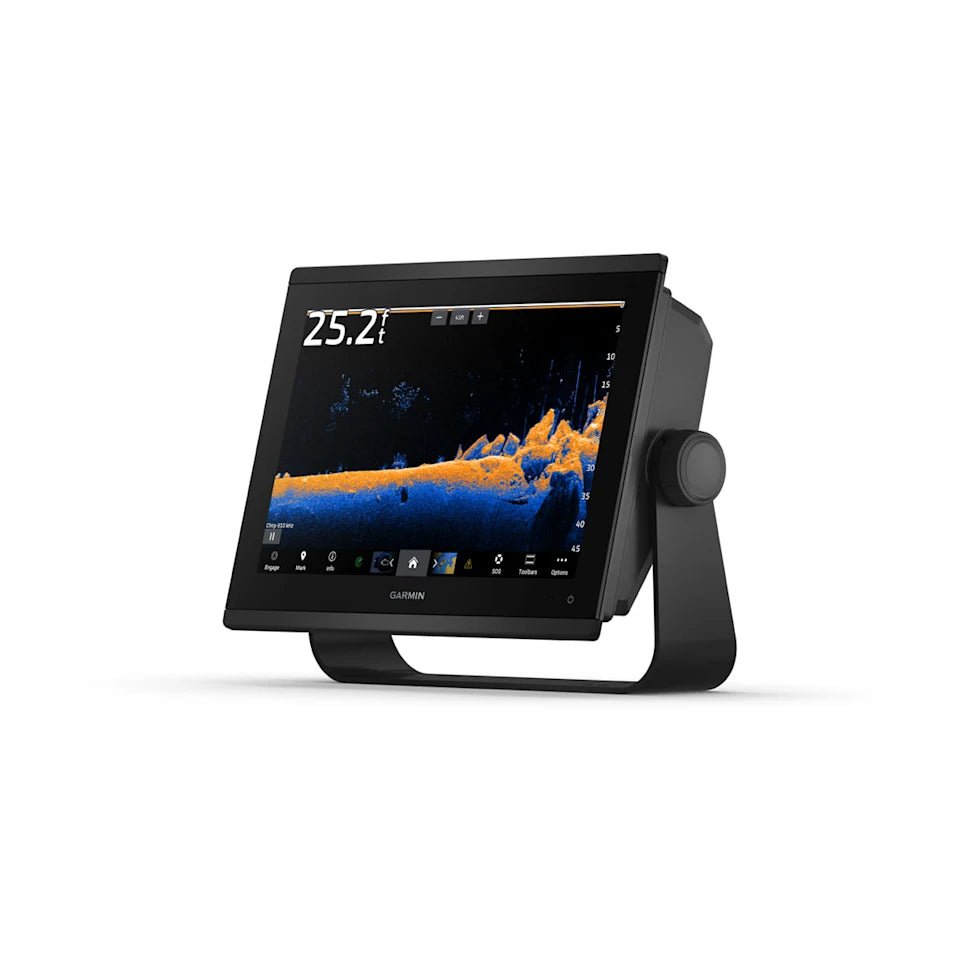

The GPSMAP 1243xsv boasts built-in Garmin CHIRP traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonars, providing crystal-clear images of what's beneath and around your boat. It also supports Panoptix all-seeing sonar, allowing you to see structure, bait, and fish in real time. Preloaded BlueChart g3 coastal charts and LakeVu g3 inland maps offer comprehensive coverage of U.S. coastal waters and over 18,000 lakes, rivers, and reservoirs. These charts include integrated Navionics data and Auto Guidance technology, helping you navigate safely and efficiently.

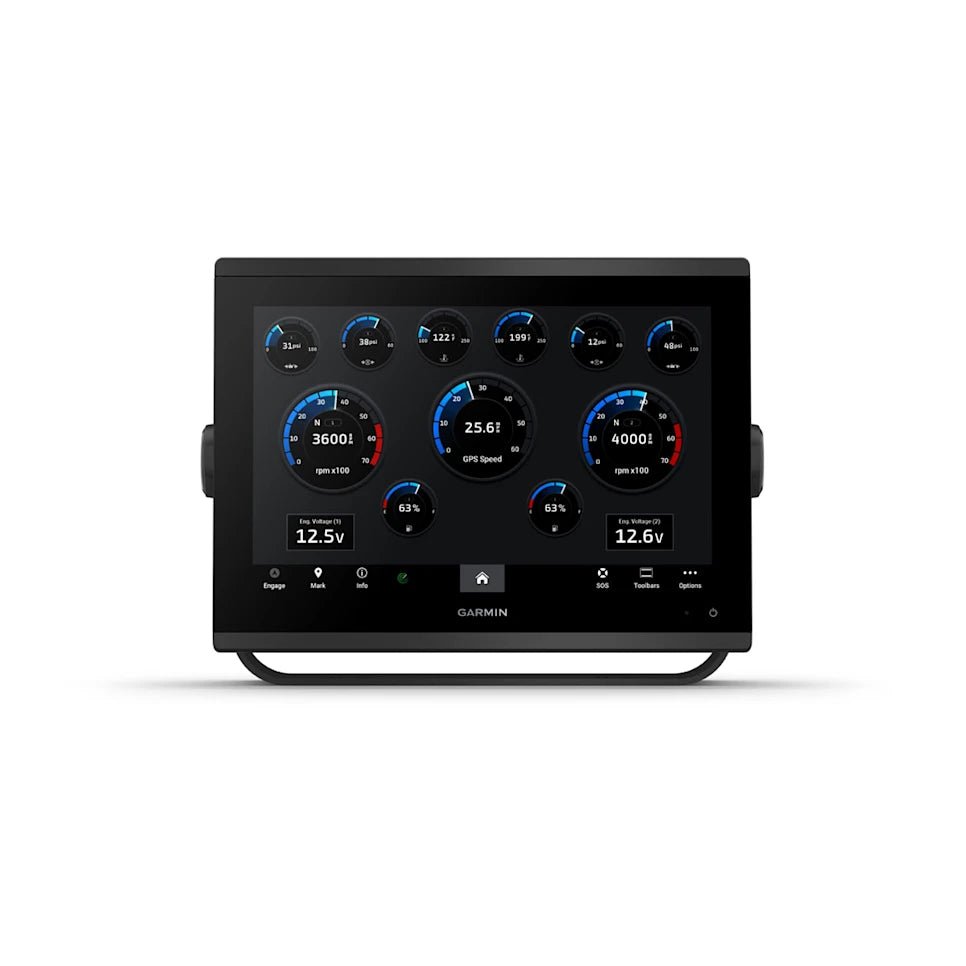

Stay connected with integrated Wi-Fi connectivity, allowing you to access ActiveCaptain app features, such as smart notifications, software updates, and Quickdraw Contours community charts. The GPSMAP 1243xsv also supports NMEA 2000 and NMEA 0183 networking, enabling seamless integration with other onboard devices, such as autopilots, digital switching systems, and weather receivers. With its advanced features, powerful performance, and user-friendly interface, the Garmin GPSMAP 1243xsv is the ultimate navigation solution for any boater.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

Technical Specifications

• Physical Dimensions: 12.1" x 8.5" x 3.5" (30.8 x 21.6 x 8.9 cm)
• Display Size: 10.1" x 6.3"; 12.1" diagonal (25.7 cm x 16.0 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: IPS touchscreen
• Weight: 5.0 lbs (2.3 kg)
• Water Rating: IPX7

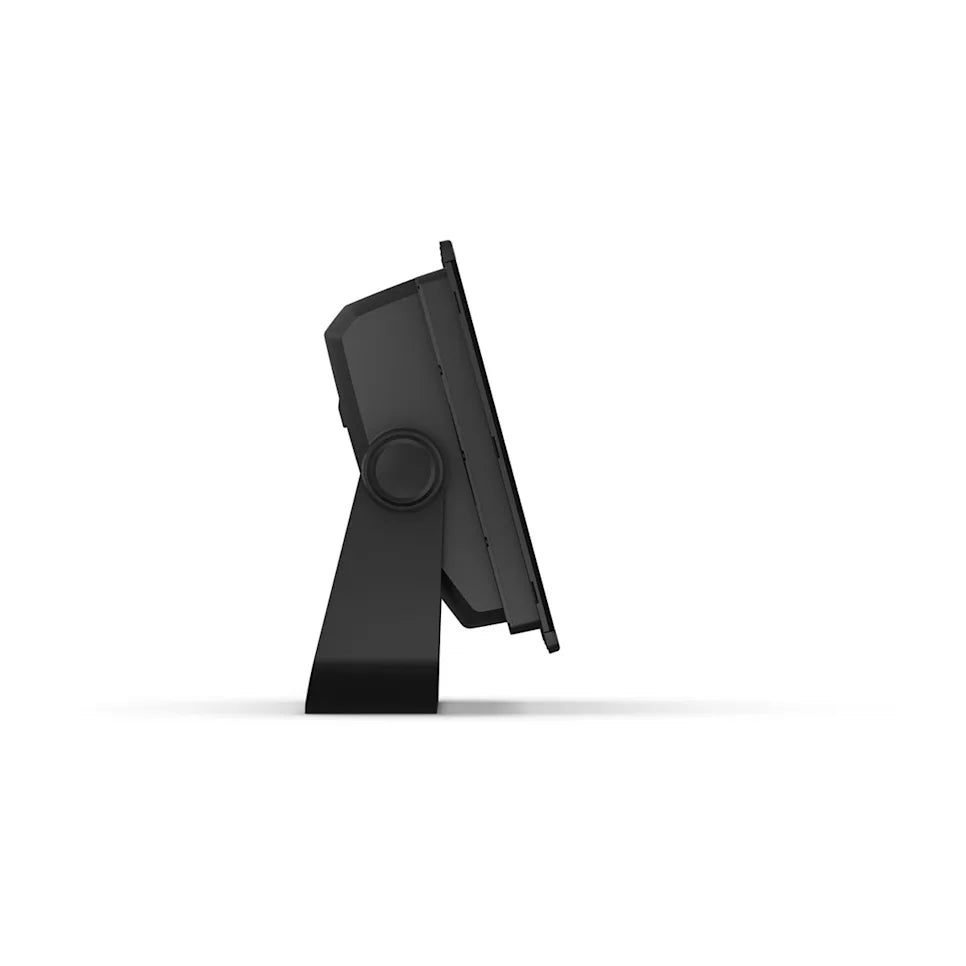

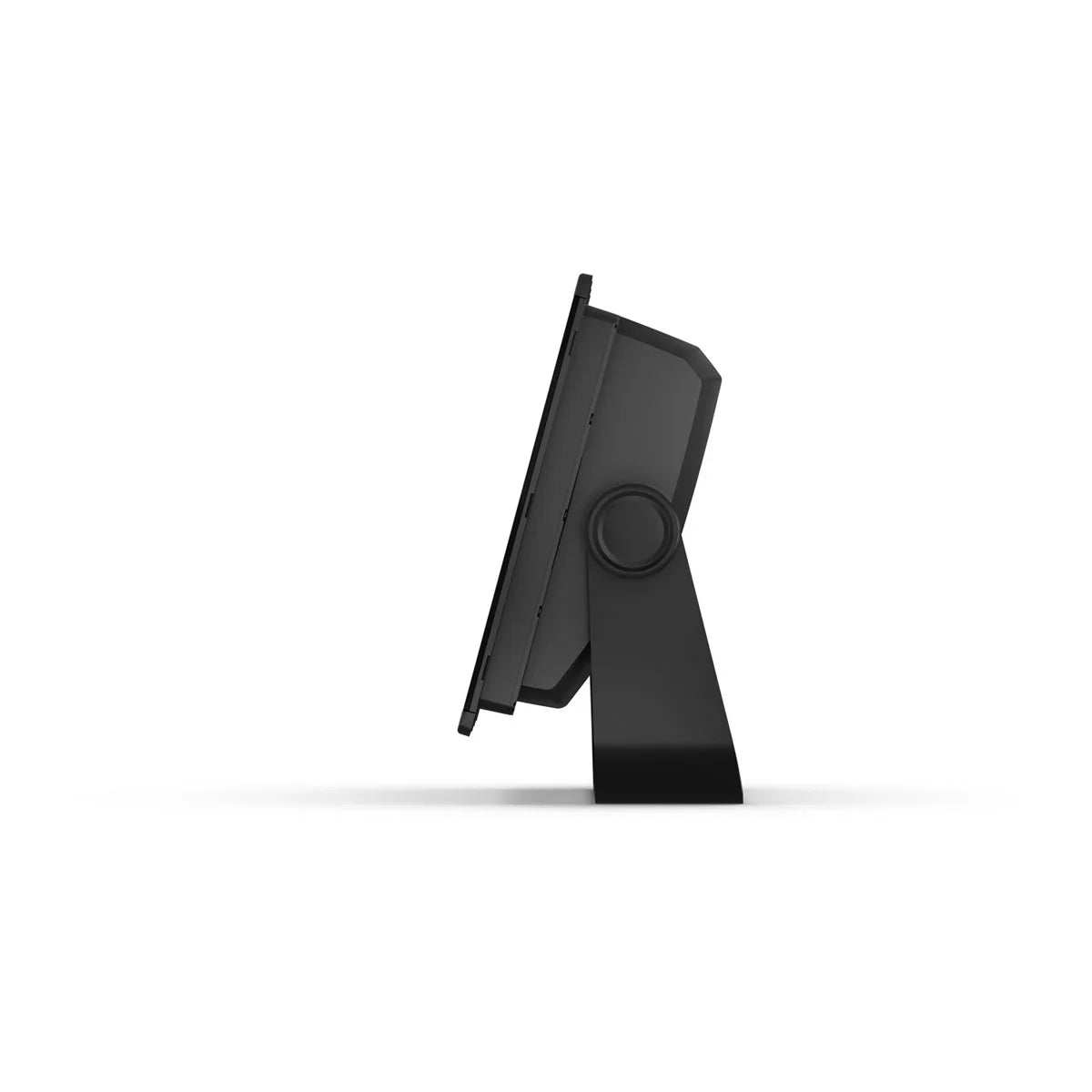

• Mounting Options: Bail, Flush, Flat
• Power Consumption: Typical: 2.0 A at 12 Vdc; Max: 2.7 A at 12 Vdc
• Antenna: Internal or external over NMEA 2000
• Receiver: 10 Hz

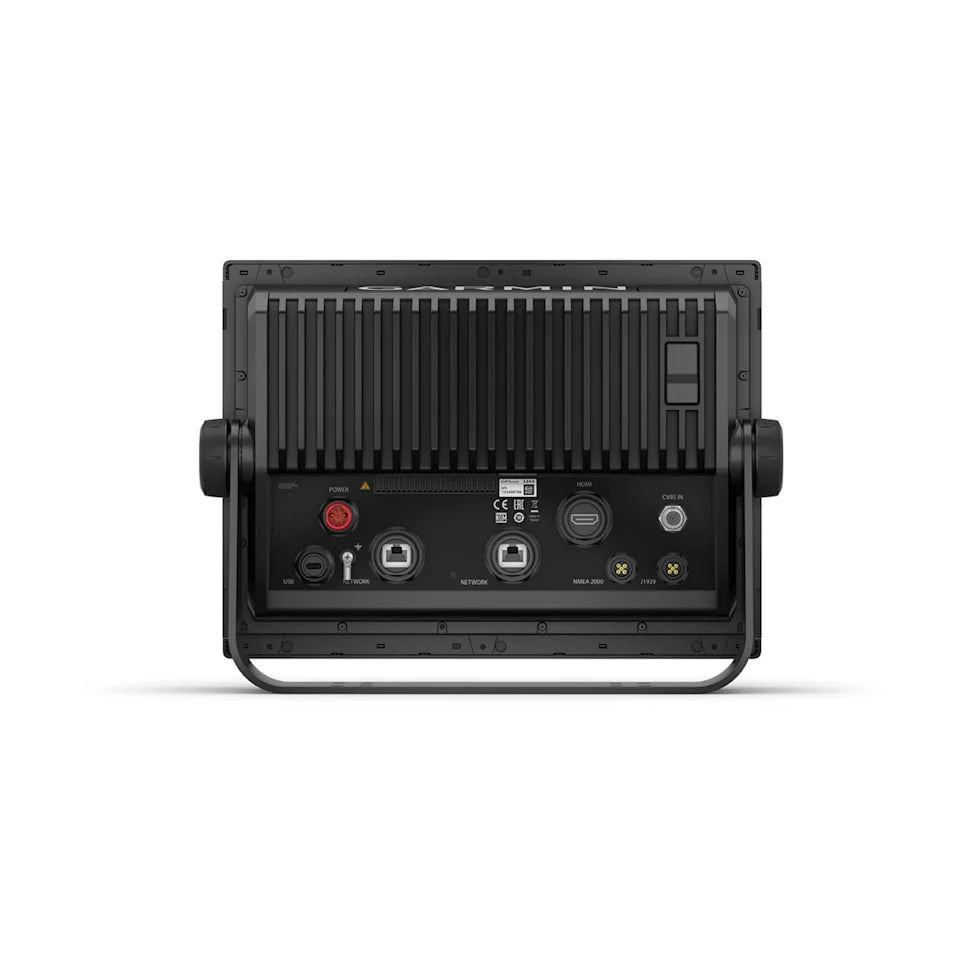

• Garmin Marine Network Ports: 1
• Sonar Capabilities: Built-in CHIRP, ClearVu, SideVu, Panoptix compatible
• NMEA 2000 Compatibility: Yes
• NMEA 0183 Input Ports: 1
• NMEA 0183 Output Ports: 1
• Video Input Ports: 1 BNC
• Wireless Connectivity: Wi-Fi
• J1939 Connectivity: Yes

GPSMAP 1243xsv Variations

• GPSMAP 1243xsv (Without Transducer): Includes chartplotter only.
• GPSMAP 1243xsv (With GT56UHD-TM Transducer): Includes GT56UHD-TM all-in-one transducer for CHIRP traditional, ClearVu, and SideVu sonar.
