Garmin OnDeck System

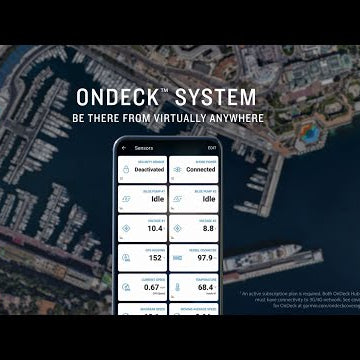

The Garmin OnDeck System is your ultimate solution for remote monitoring and control of your boat. Stay connected and informed about your vessel's critical systems, no matter where you are. This comprehensive system provides real time data on battery voltage, bilge activity, door and hatch sensors, shore power status, and GPS location. Receive instant alerts via text or email if something is amiss, giving you peace of mind and the ability to take action quickly. The OnDeck System also allows for remote control of onboard systems, such as switching lights or pumps on or off. With its easy to use mobile app, you can access all of this information and control your boat from your smartphone or tablet. Protect your investment and enjoy worry free boating with the Garmin OnDeck System.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up to date and accurate specifications.

Technical Specifications

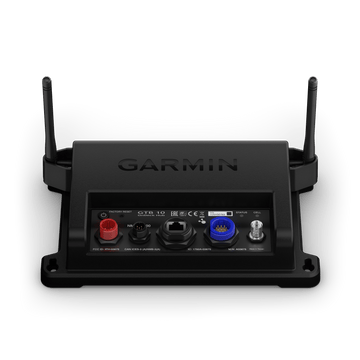

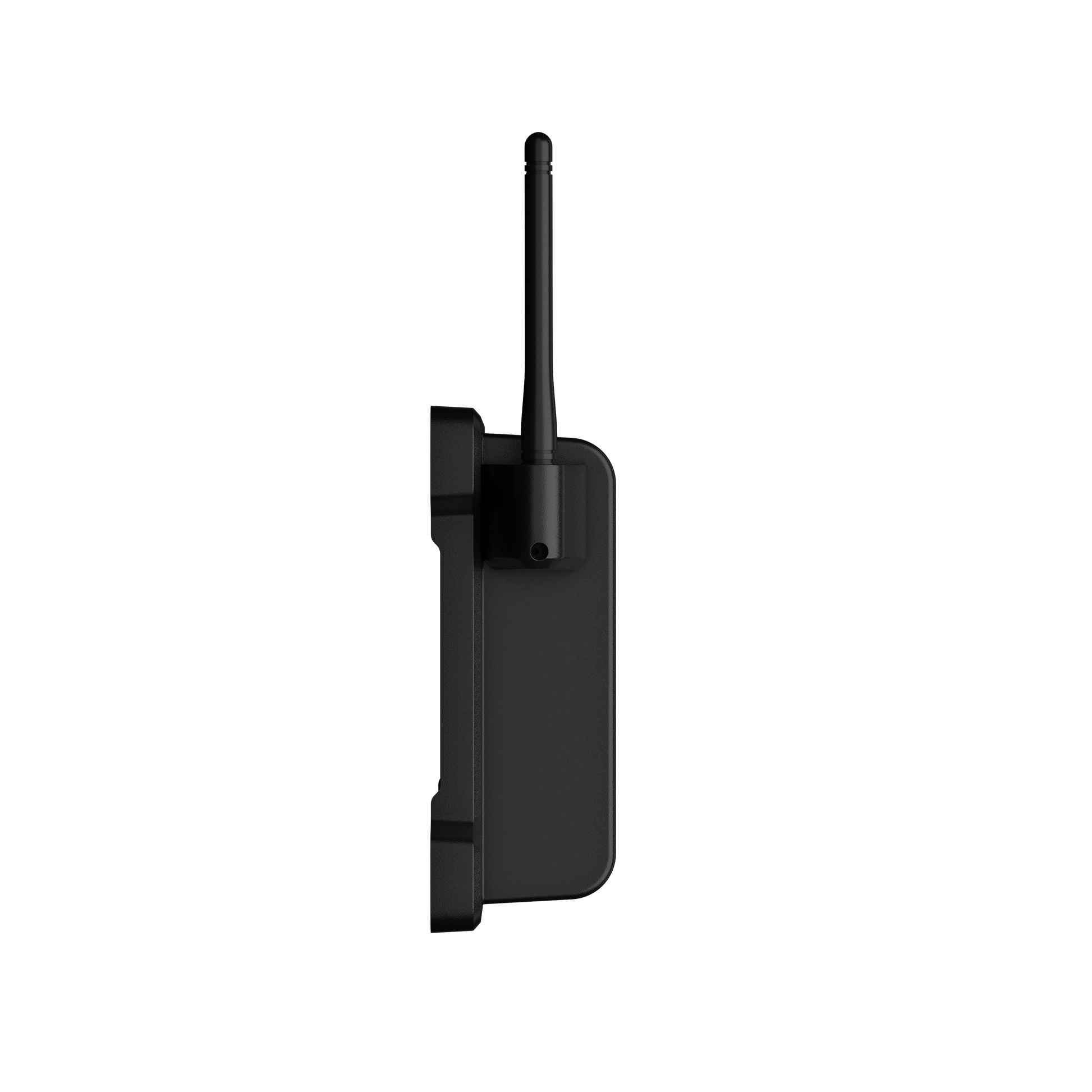

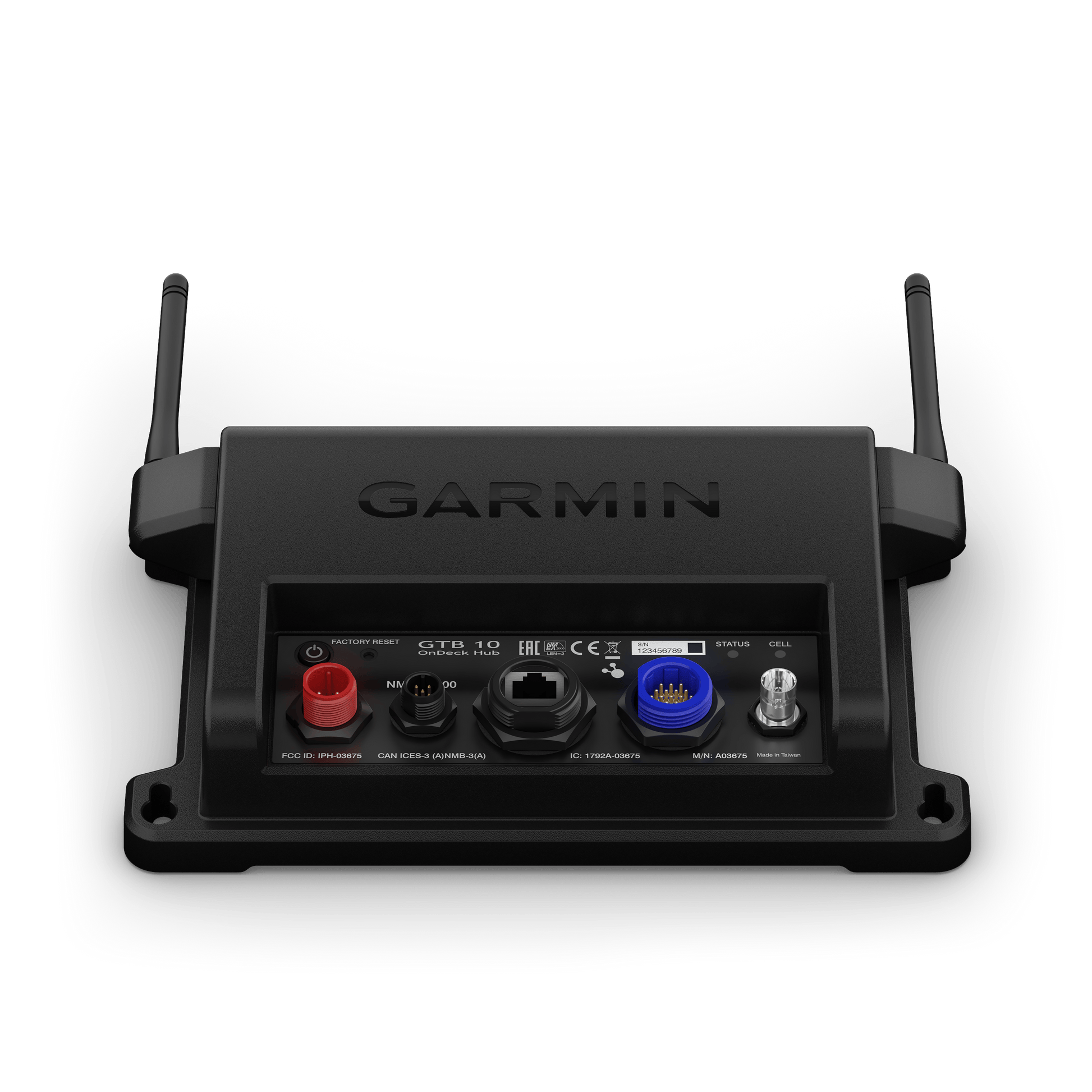

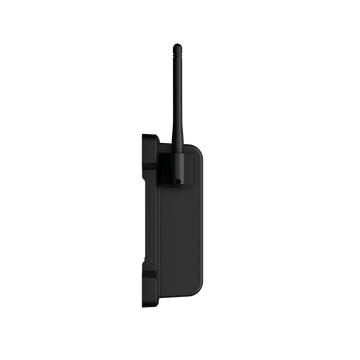

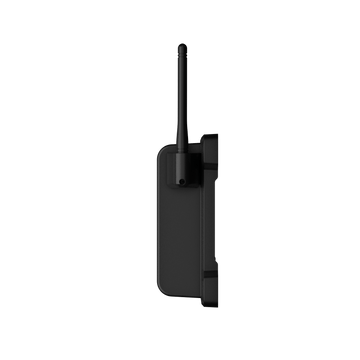

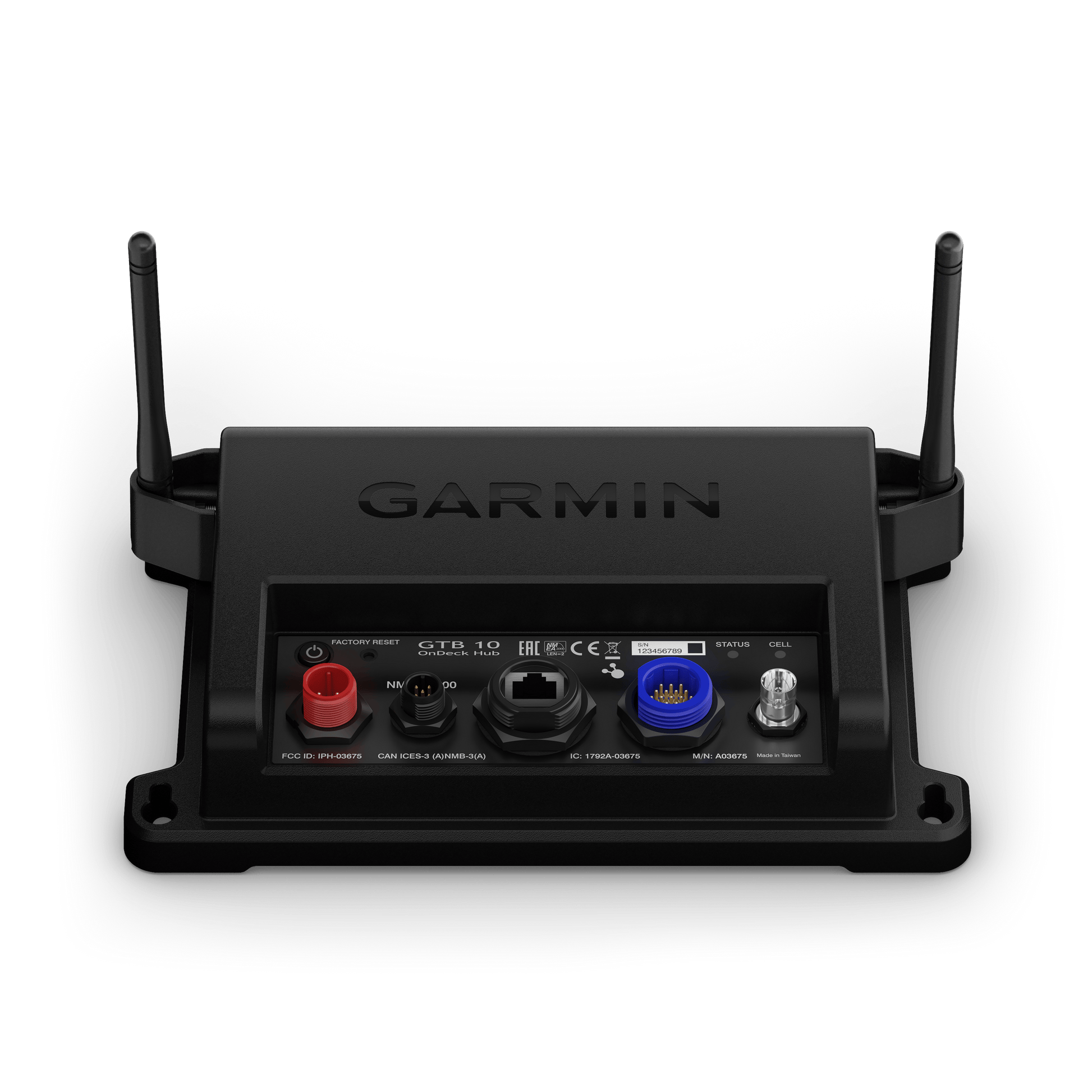

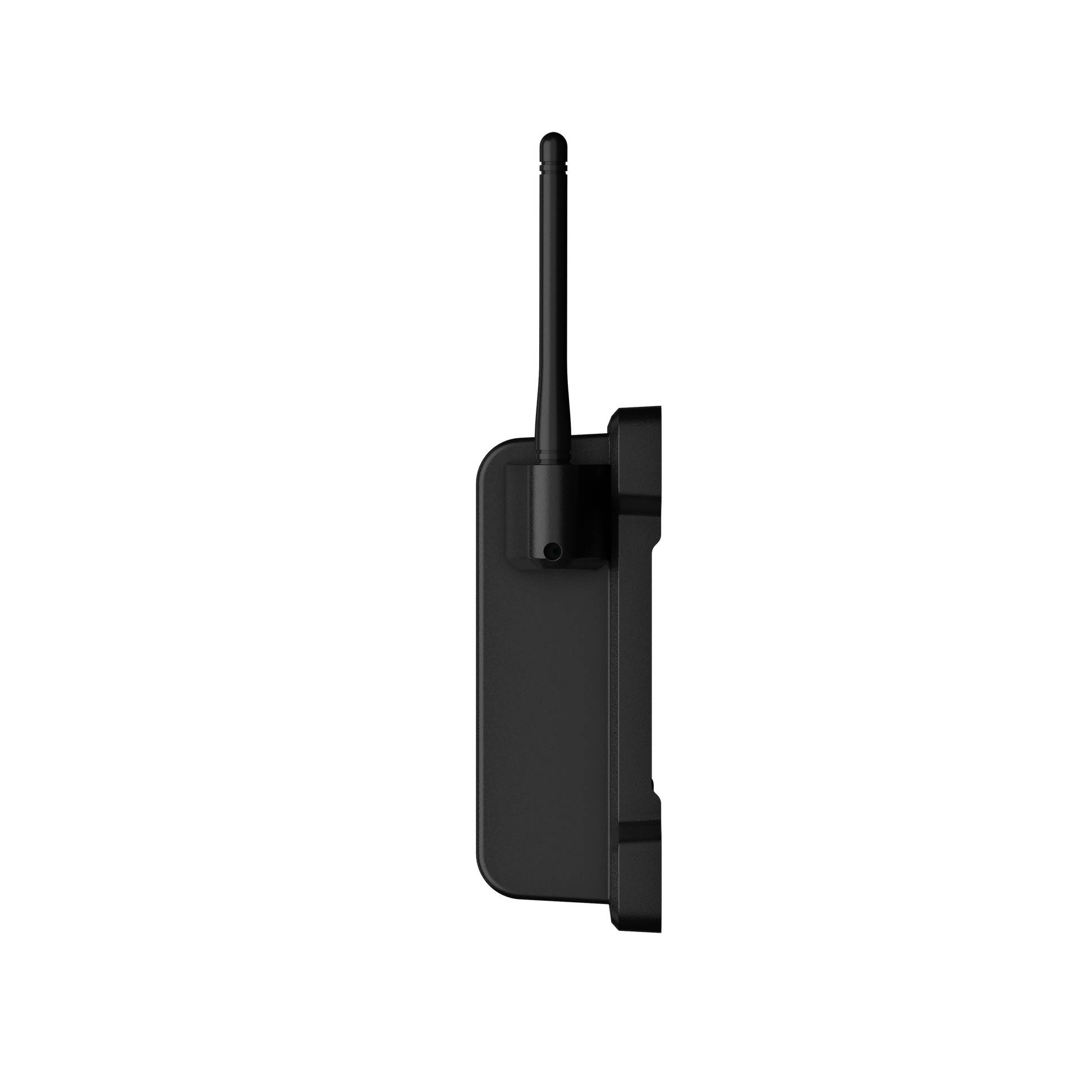

• OnDeck Hub
• Dimensions: 8.3" x 6.4" x 2.0" (21.1 cm x 16.3 cm x 5.1 cm)
• Weight: 1.3 lbs (0.6 kg)
• Operating Temperature: -15C to 55C (5F to 131F)
• Storage Temperature: -20C to 70C (-4F to 158F)
• Water Resistance: IPX7
• Power Input: 9-30 Vdc
• Power Consumption: 0.5A @ 12Vdc (Typical)
• Cellular Connectivity: 4G LTE
• GPS: Internal
• Wi Fi: 802.11 b/g/n
• Bluetooth: Yes
• Digital Switching Outputs: 2
• Digital Inputs: 4
• Analog Inputs: 2
• Relay Outputs: 2
• Door/Hatch Sensor
• Dimensions: 2.0" x 0.7" x 0.5" (5.1 cm x 1.8 cm x 1.3 cm)
• Weight: 0.8 oz (23 g)
• Operating Temperature: -15C to 55C (5F to 131F)
• Water Resistance: IPX7
• Wireless Communication: Bluetooth
• Battery Type: CR2032
• Battery Life: Up to 2 years
• Temperature Sensor
• Dimensions: 1.5" x 0.5" x 0.3" (3.8 cm x 1.3 cm x 0.8 cm)
• Weight: 0.5 oz (14 g)
• Operating Temperature: -40C to 85C (-40F to 185F)
• Water Resistance: IPX7
• Wireless Communication: Bluetooth
• Battery Type: CR2032
• Battery Life: Up to 1 year
