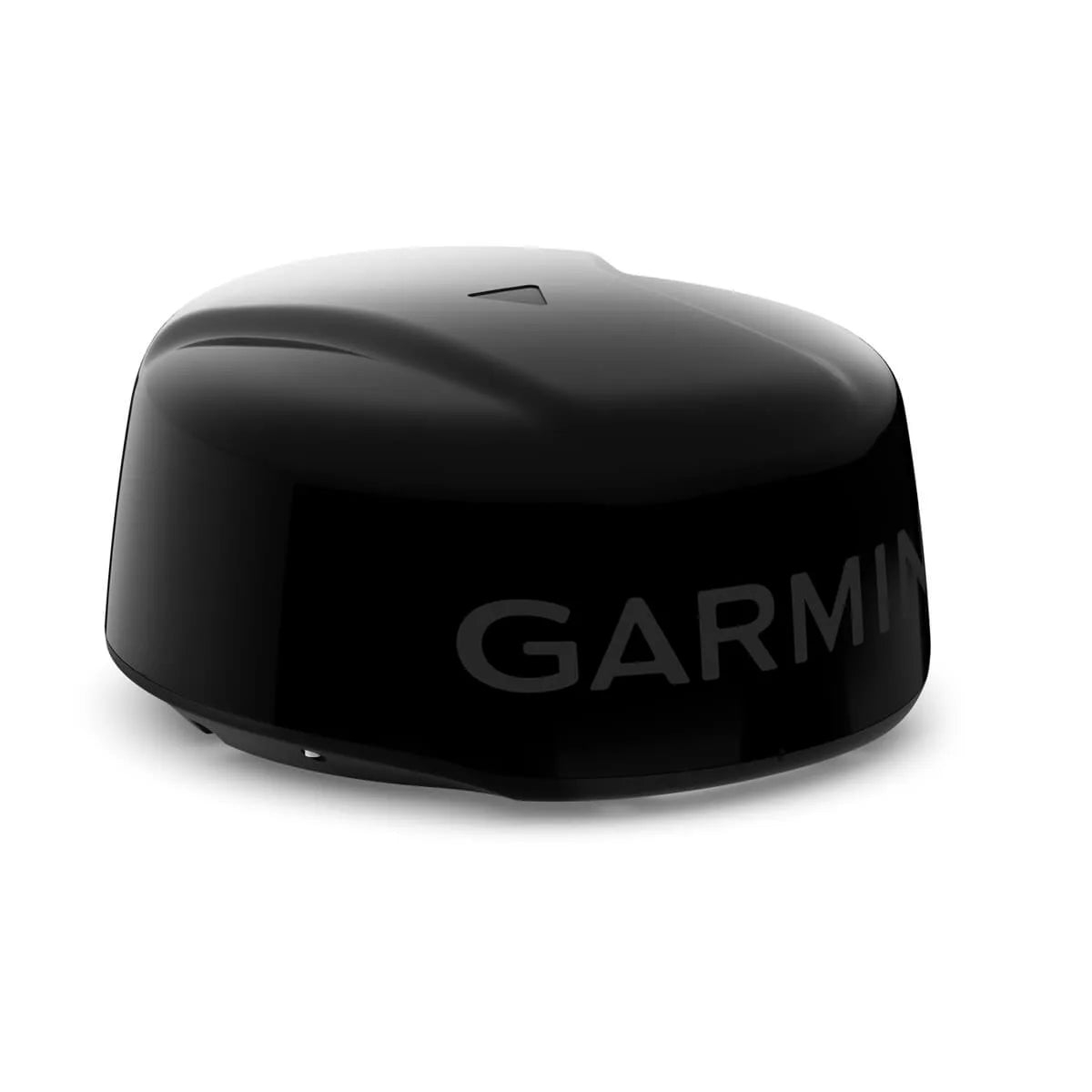

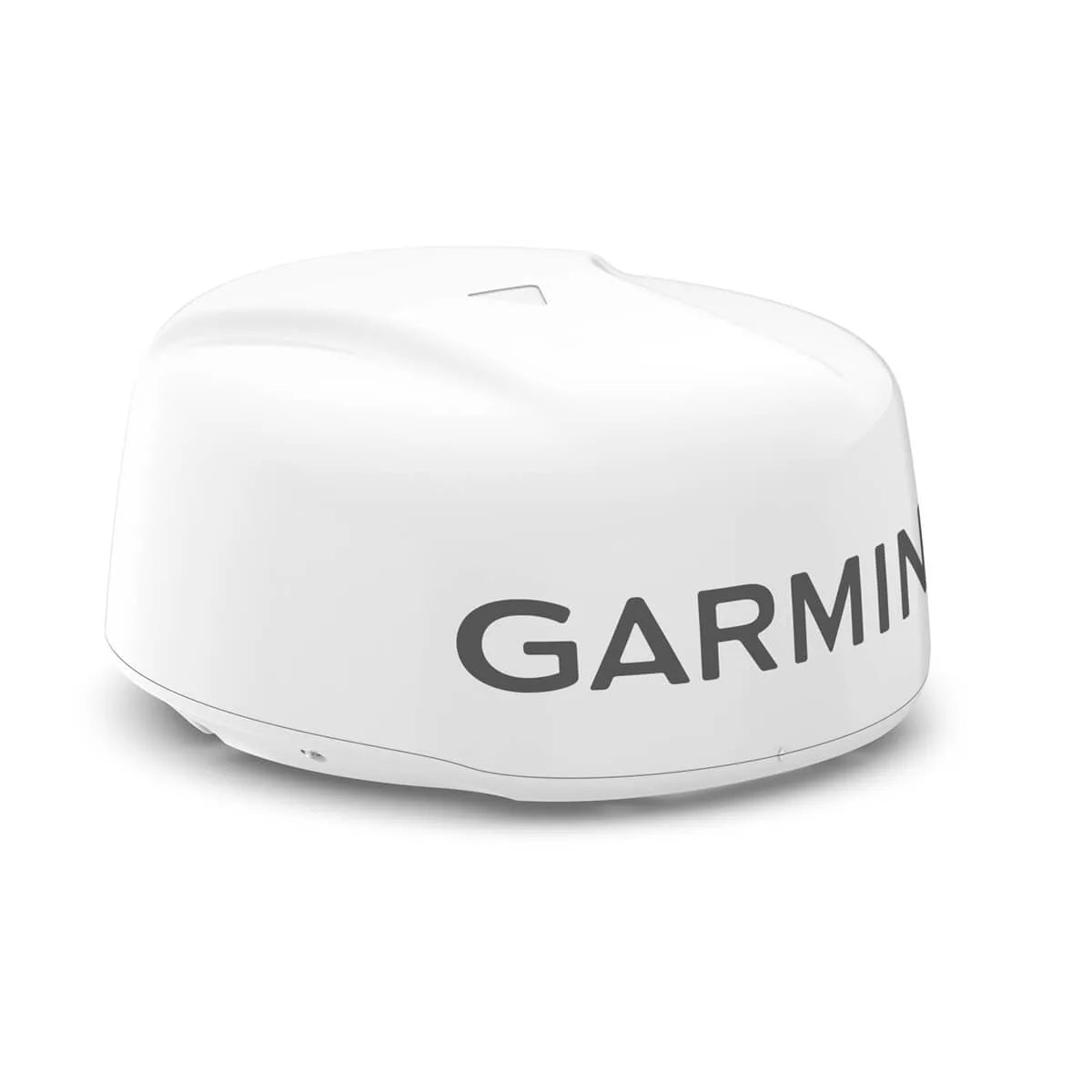

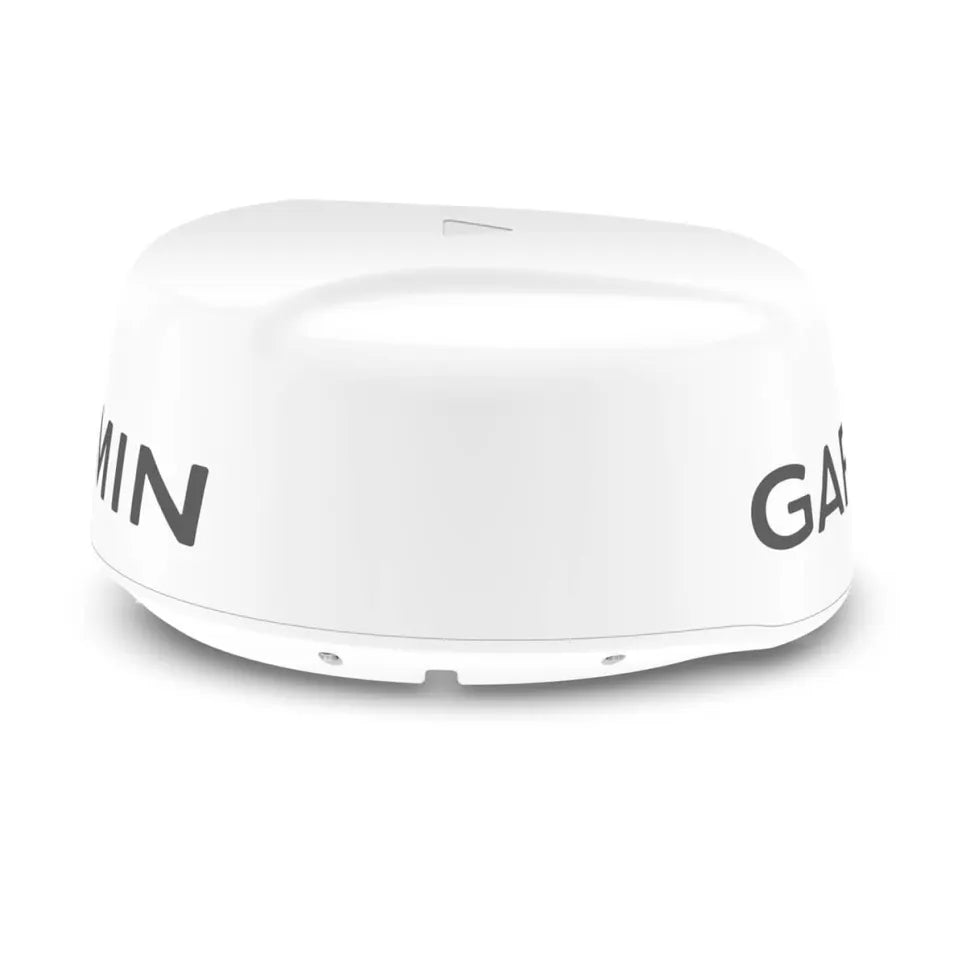

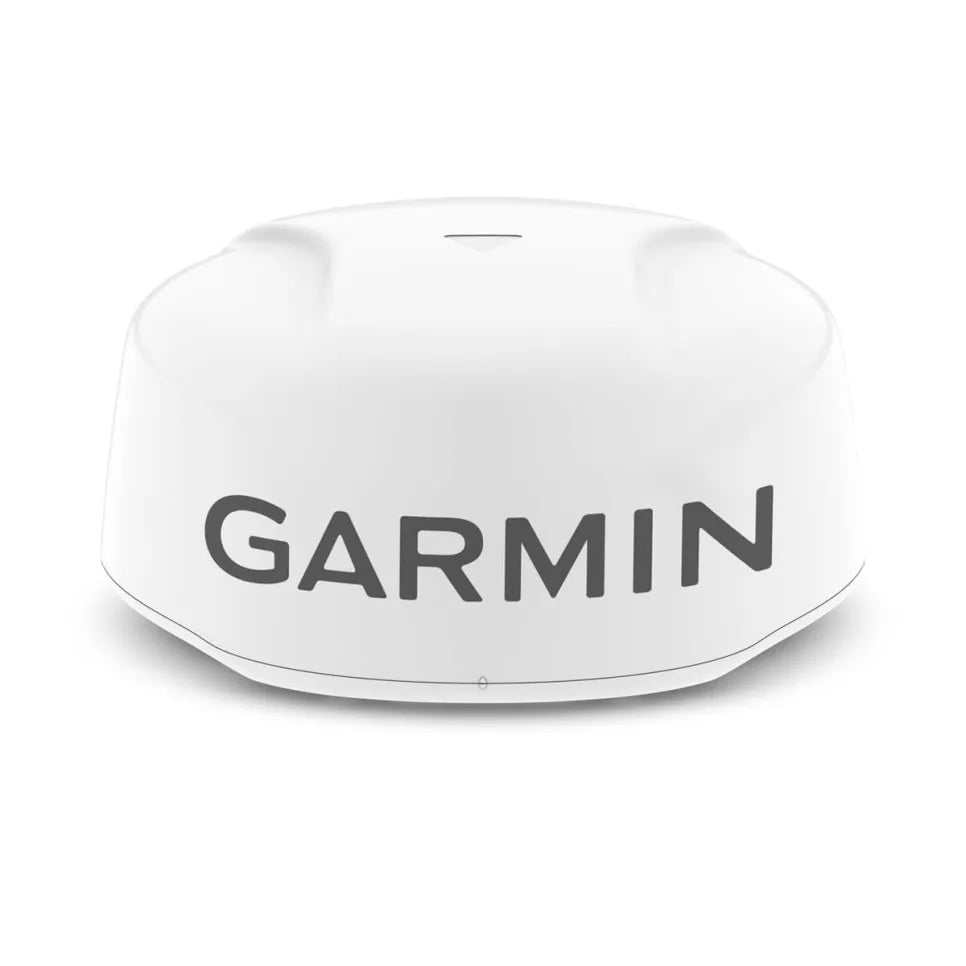

GMR Fantom 18x

The GMR Fantom 18x radar from Garmin represents a significant advancement in marine radar technology. This solid state pulse compression radar offers superior target detection and discrimination, even at long ranges. Its MotionScope Doppler technology instantly detects and highlights moving targets, helping you avoid potential collisions. With its high power output, the GMR Fantom 18x provides excellent performance in all weather conditions. The radar features a narrow horizontal beamwidth, which enhances target separation and image detail. Its intuitive interface and easy to use controls make it simple to operate, while its compact design allows for flexible installation options. Whether you are navigating coastal waters or venturing offshore, the GMR Fantom 18x provides the confidence and situational awareness you need for a safe and enjoyable boating experience. This radar is designed for serious boaters who demand the best in performance and reliability.

Please note: The information provided is compiled from publicly available resources and may not be completely exhaustive or reflect all possible variations. Always refer to the manufacturer's official website for the most up-to-date and accurate specifications.

GMR Fantom 18x Garmin Technical Specifications

General

• Frequency: X band (9.3 GHz)
• Transmit Power: 50 W solid state
• Beamwidth: 1.8 degrees horizontal, 25 degrees vertical
• Maximum Range: 48 nautical miles
• Minimum Range: 20 feet
• Rotation Speed: 24 RPM (single range), 48 RPM (dual range)
• Weight: 12.3 kg (27.1 lbs)
• Waterproof Rating: IPX7
• Power Input: 10 32 VDC
• Power Consumption: 40 W typical, 60 W max

Features

• MotionScope Doppler Technology: Yes
• Target Size: Yes
• Auto Gain: Yes
• Auto Sea Clutter: Yes
• Auto Rain Clutter: Yes
• Guard Zone: Yes
• MARPA: Yes (requires heading sensor)

Physical

• Dimensions: 24 inch diameter
• Connector Type: Network cable

Certifications

• FCC
• CE
